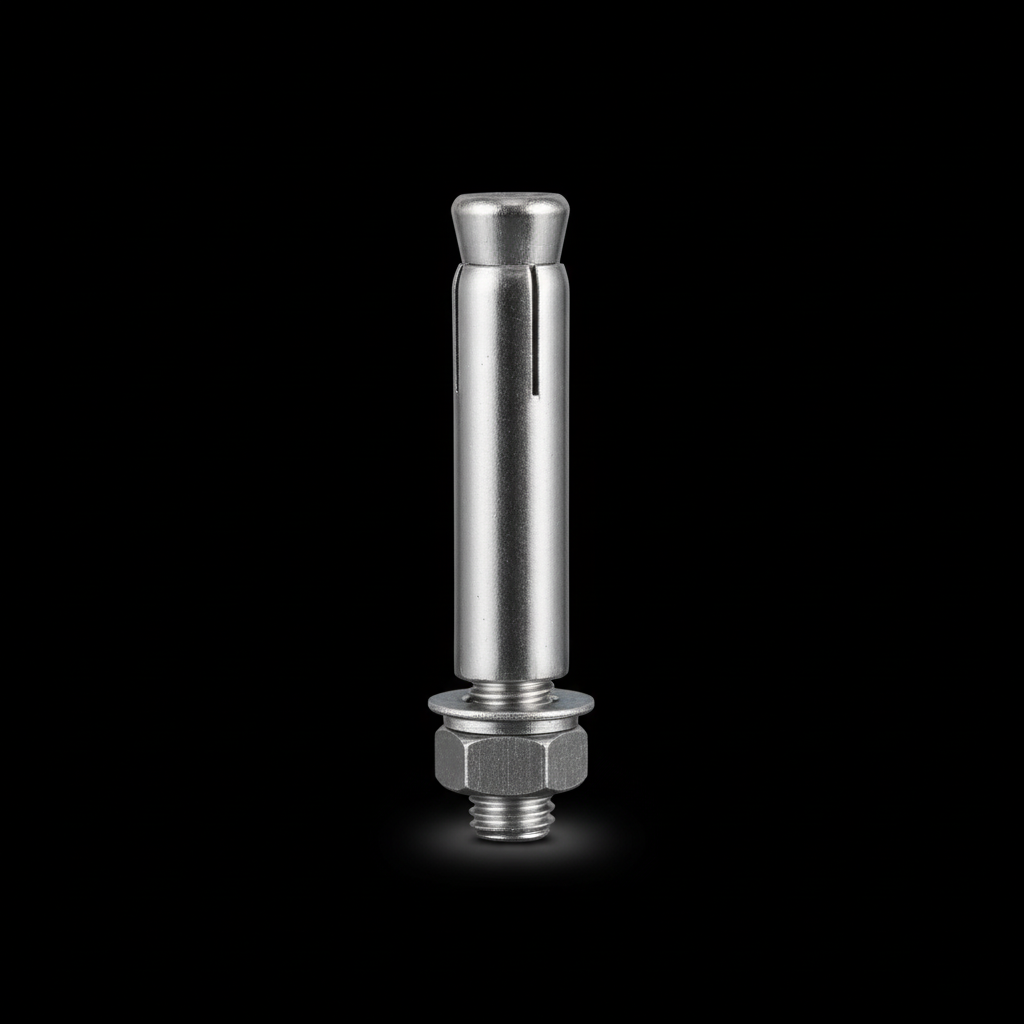

Sleeve Anchor (Expansion Sleeve Anchor)

Product

Galvanized Steel

Metric thread (ISO 261)
mm4050607080100120150200
M6———
M8———
M10———
M12—————
M16—————
In stock— Not manufactured

Selected: Galvanized Steel · choose a size from the chart

Available in Galvanized Steel, Stainless Steel 304 and Yellow Zinc. Standard sizes (Metric thread (ISO 261)): M6 (40-100mm), M8 (50-120mm), M10 (60-150mm), M12 (80-150mm), M16 (100-200mm). Request a quote for your exact requirement.

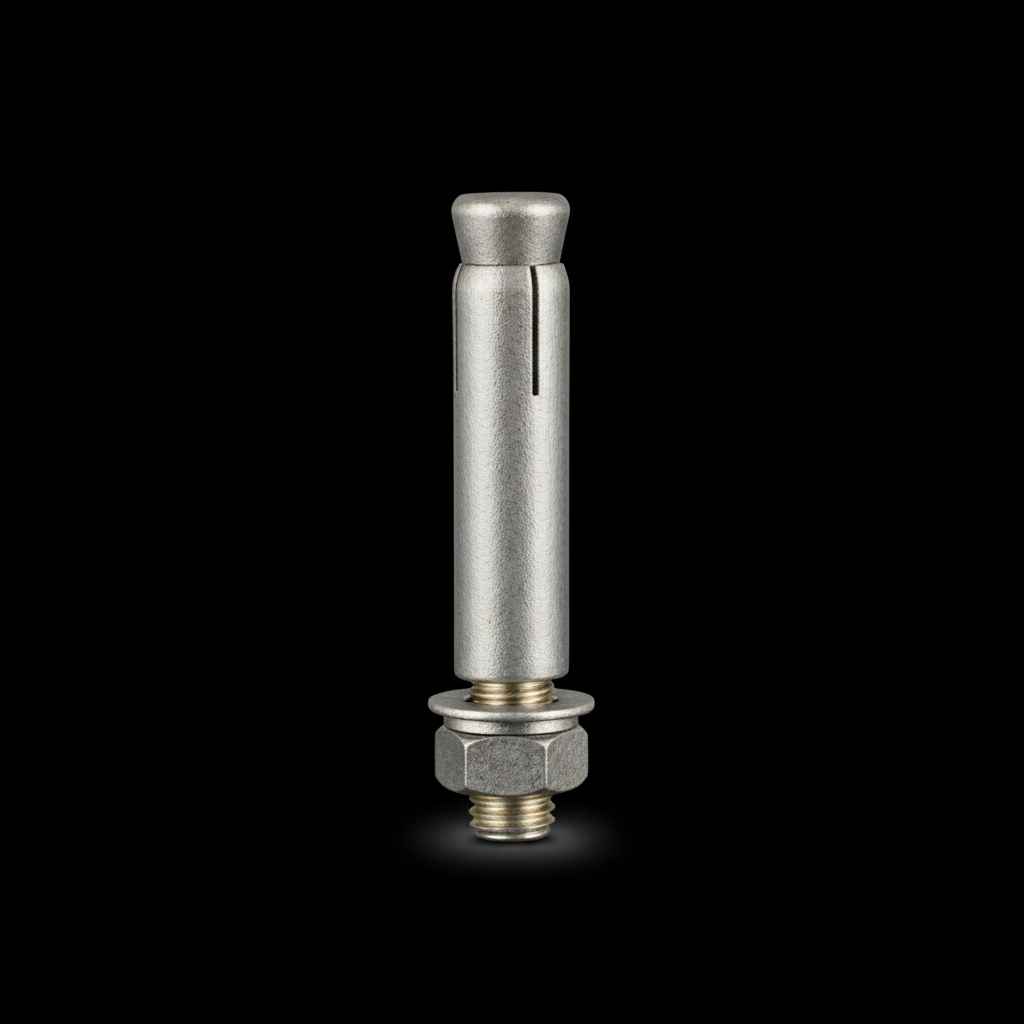

Sleeve Anchors feature a threaded bolt surrounded by an expansion sleeve that grips the walls of the drilled hole as the nut is tightened. This even, 360° expansion ensures strong holding power across various masonry materials. Offering easy installation, reliable load capacity, and clean finish, Sleeve Anchors are ideal for construction, industrial setups, and structural mounting where dependable, all-purpose anchoring is essential. Also commonly known as Expansion Sleeve Anchor or Loose Bolt Anchor in the trade.

About Sleeve Anchor

Sleeve Anchors (Expansion Sleeve Anchor, Loose Bolt Anchor) are anchoring fasteners used in industrial and construction applications. ScrewBazar supplies sleeve anchors in Galvanized Steel, SS 304 and Yellow Zinc. Typical uses include fixing machinery to concrete floors, structural steel base plates and railings, brackets and supports.

Applications

  • •Fixing machinery to concrete floors
  • •Structural steel base plates
  • •Railings, brackets and supports
  • •Cable trays and pipe supports
  • •Building services installation

Specifications

Materials
Galvanized Steel, SS 304, Yellow Zinc
Size range
M6 to M16, lengths 40 mm to 200 mm

Industries served

  • Construction
  • Civil engineering
  • Building services
  • Industrial plants

Related categories

Sleeve Anchor: frequently asked questions

What materials are sleeve anchors available in?

Sleeve Anchors are available in Galvanized Steel, SS 304 and Yellow Zinc. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

Where are sleeve anchors used?

Sleeve Anchors are used in fixing machinery to concrete floors, structural steel base plates, railings, brackets and supports, cable trays and pipe supports and building services installation. They are supplied to the construction, civil engineering, building services and industrial plants sectors.

How do I choose the right size of sleeve anchor?

Choose the anchor diameter from the fixture hole and load, and the length from the fixture thickness plus the minimum embedment depth in the base material. Drill the hole to the size given for that anchor. ScrewBazar can match a size from a drawing or sample.

What sizes of sleeve anchor are available?

Sleeve Anchors are supplied in M6 to M16, lengths 40 mm to 200 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order sleeve anchors in bulk?

Yes. ScrewBazar supplies sleeve anchors in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
