| mm | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| M4 | — | — | — | — | — | — | — | — | — | — | |||||||||
| M5 | — | — | — | — | — | — | — | — | |||||||||||
| M6 | — | — | — | — | — | — | |||||||||||||
| M8 | — | — | — | — | |||||||||||||||
| M10 | — | — | — | ||||||||||||||||
| M12 | — | — | — | — | |||||||||||||||
| M16 | — | — | — | — | — | — | |||||||||||||
| M20 | — | — | — | — | — | — | — | — |
Selected: Stainless Steel 304 / A2-70 · choose a size from the chart
Available in Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Alloy Steel. Standard sizes (DIN 7991 / ISO 10642): M3 (6-30mm), M4 (8-40mm), M5 (8-50mm), M6 (8-60mm), M8 (10-80mm), M10 (12-100mm), M12 (16-100mm), M16 (25-100mm), M20 (35-100mm). Request a quote for your exact requirement.

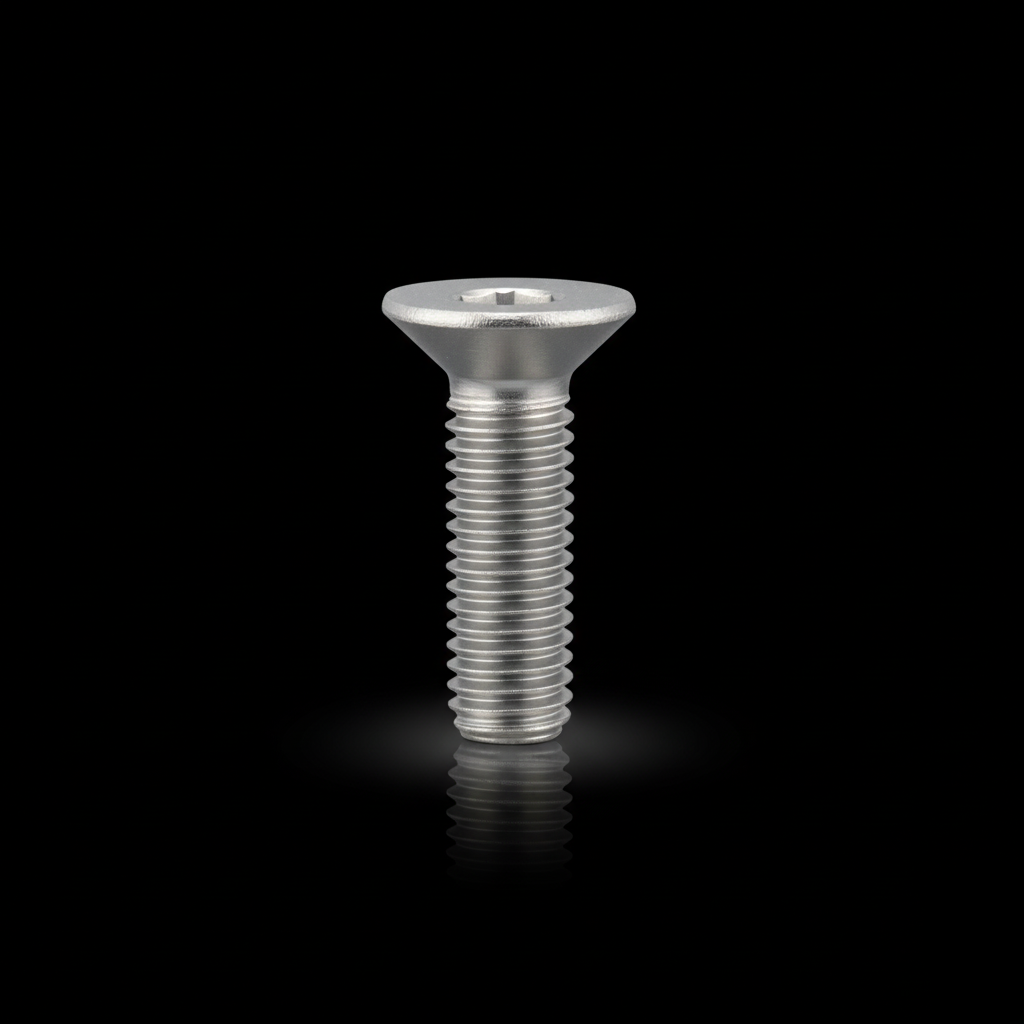

Allen CSK (Countersunk) Bolts feature a flat, countersunk head with an internal hex drive, allowing them to sit flush with the surface while providing high torque and secure fastening. Designed for precision applications, these bolts are ideal for assemblies where both aesthetics and performance matter. With durable construction and reliable holding strength, Allen CSK Bolts ensure long-lasting, vibration-resistant fastening in industrial, mechanical, and electronic setups.
Common uses and specifications for Allen CSK Bolt:
Allen CSK Bolts are available in SS 304, SS 316, Mild Steel and Alloy Steel. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.
Allen CSK Bolts are commonly made to DIN 7991 and ISO 10642. State the standard on your enquiry so dimensions and tolerances match your drawing.
Allen CSK Bolts are supplied in M3 to M20, lengths 6 mm to 100 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies allen CSK bolts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
