Allen Flange Button Head Screw

Product

Stainless Steel 202

ISO 7380-2
mm681012162025303540
M3โ€”โ€”โ€”โ€”
M4โ€”โ€”โ€”
M5โ€”โ€”
M6โ€”โ€”
M8โ€”โ€”โ€”โ€”
M10โ€”โ€”โ€”โ€”
M12โ€”โ€”โ€”โ€”โ€”
In stockโ€” Not manufactured

Selected: Stainless Steel 202 ยท choose a size from the chart

Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel, Brass, Nylon and Black Oxide. Standard sizes (ISO 7380-2): M3 (6-20mm), M4 (8-30mm), M5 (10-40mm), M6 (10-40mm), M8 (16-40mm), M10 (16-40mm), M12 (20-40mm). Request a quote for your exact requirement.

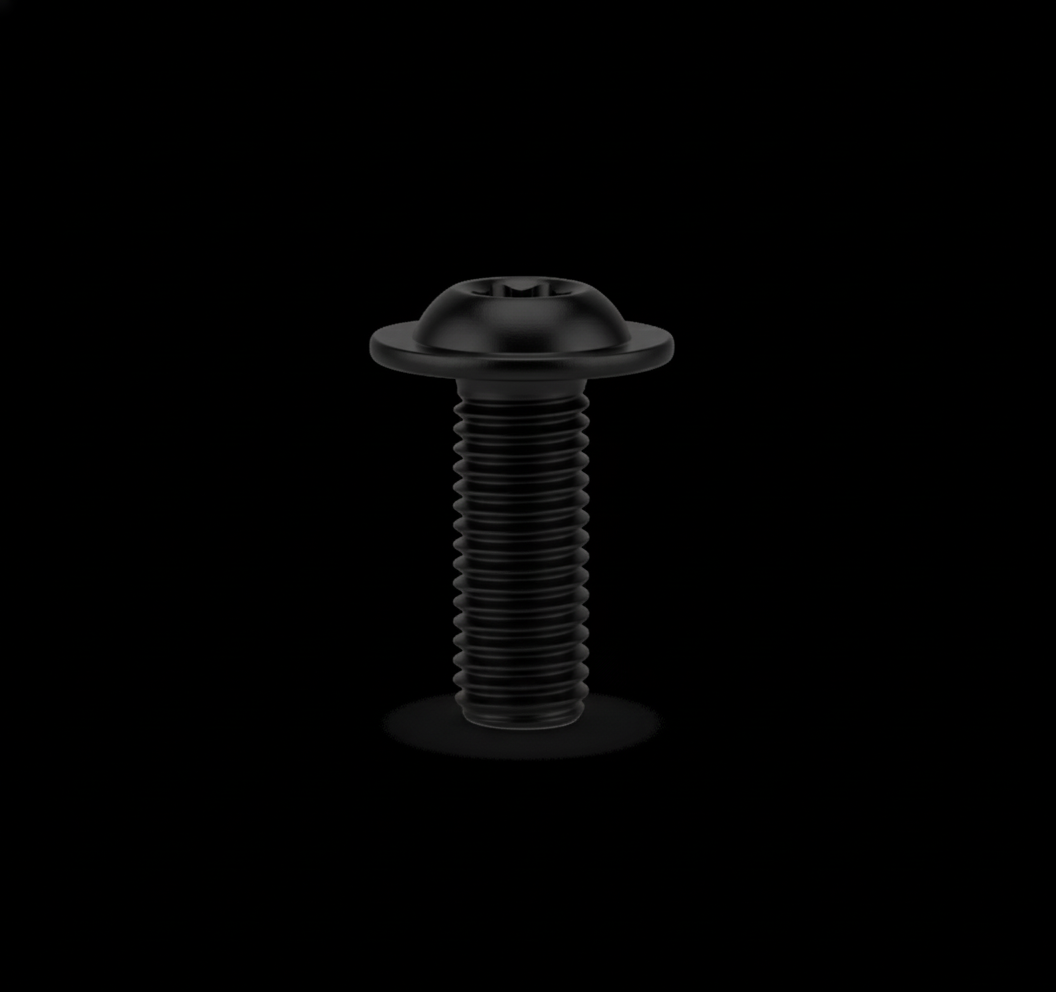

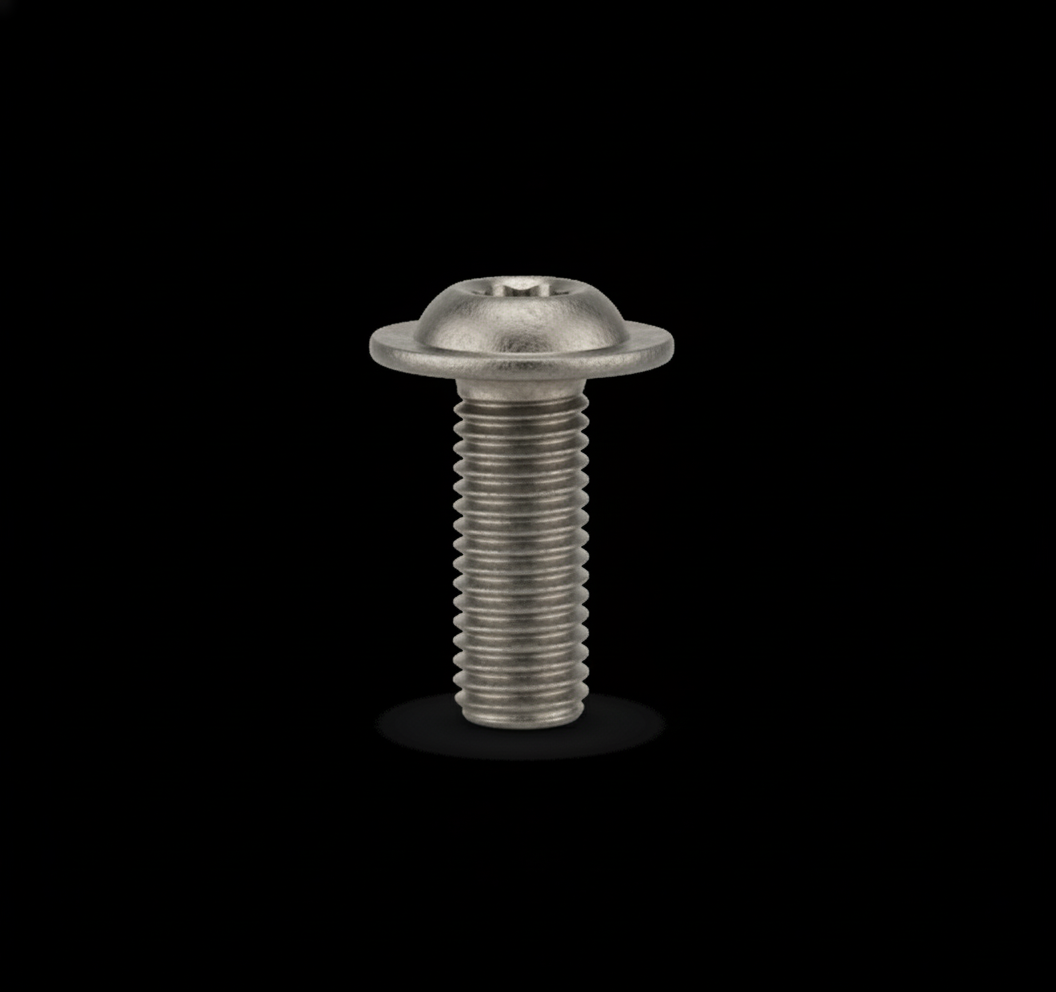

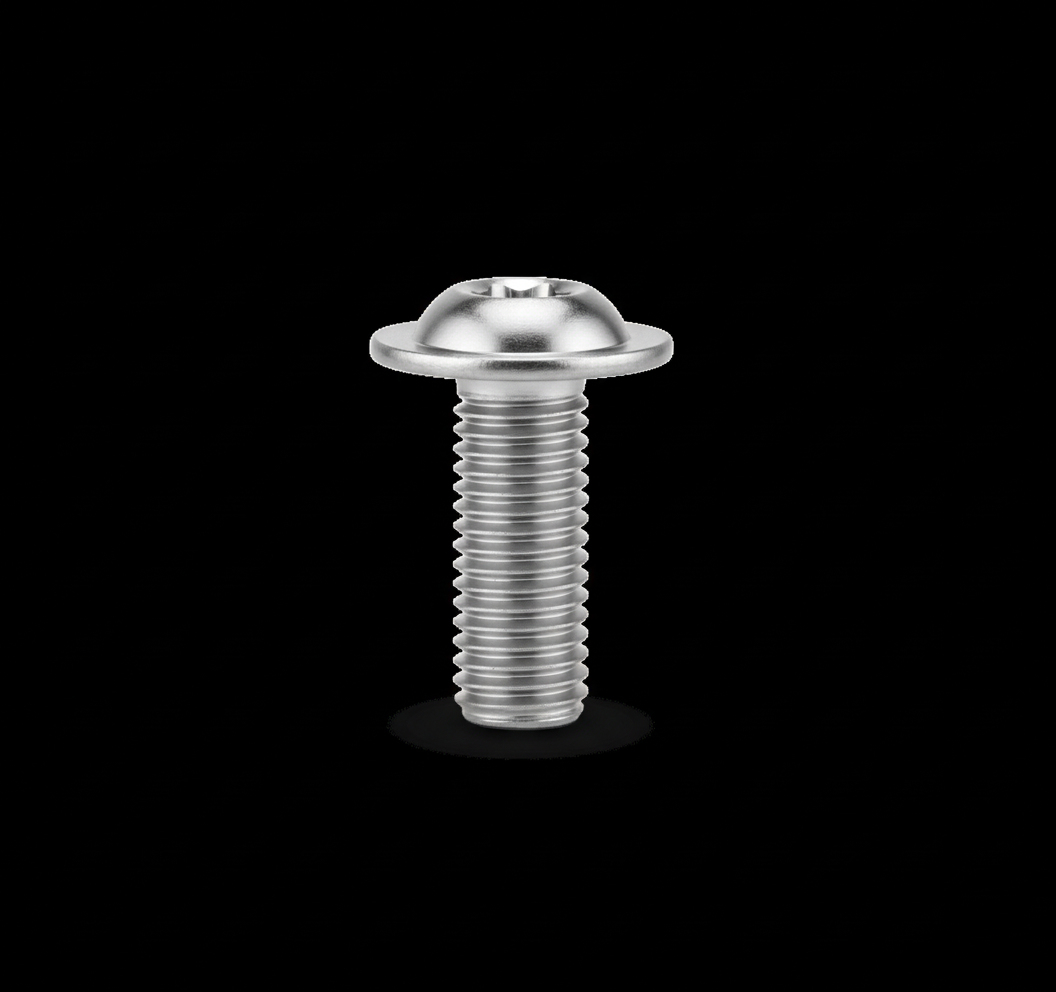

The Allen Flange Button Head Screw combines a low-profile, rounded button head with an integrated flange that acts like a built-in washer. With an internal hex (Allen) drive, it allows precise torque control in confined spaces while the flange provides a larger bearing surface to distribute load, reduce material damage, and improve vibration resistance. This makes it ideal for panel assemblies, covers, and applications where a neat, flush appearance and reliable clamping are required.

About Allen Flange Button Head Screw

Common uses and specifications for Allen Flange Button Head Screw:

Applications

  • โ€ขFastening panels, covers, and thin-sheet materials where a low-profile finished appearance is desired
  • โ€ขMachinery and equipment assembly
  • โ€ขElectrical panels and enclosures
  • โ€ขSheet metal fabrication
  • โ€ขAppliance manufacturing

Specifications

Materials
SS 202, SS 304, SS 316, Mild Steel, Brass, Nylon, Black Oxide
Size range
M3 to M12, lengths 6 mm to 40 mm
Standards
ISO 7380-2

Industries served

  • Automotive
  • Industrial machinery
  • Electrical
  • Appliances

Related categories

Allen Flange Button Head Screw: frequently asked questions

What materials are allen flange button head screws available in?

Allen Flange Button Head Screws are available in SS 202, SS 304, SS 316, Mild Steel, Brass, Nylon and Black Oxide. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of allen flange button head screw?

Choose the thread size from the hole or nut it must fit, then pick a length that gives full thread engagement of at least one diameter in steel and 1.5 to 2 diameters in aluminium or plastic. ScrewBazar can match a size from a drawing or sample.

Which standards do allen flange button head screws follow?

Allen Flange Button Head Screws are commonly made to ISO 7380-2. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of allen flange button head screw are available?

Allen Flange Button Head Screws are supplied in M3 to M12, lengths 6 mm to 40 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order allen flange button head screws in bulk?

Yes. ScrewBazar supplies allen flange button head screws in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
