| mm | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
|---|---|---|---|---|---|---|---|---|---|
| M4 | — | — | — | — | |||||
| M5 | — | — | |||||||
| M6 | |||||||||
| M8 | — |
Selected: Stainless Steel · choose a size from the chart
Available in Stainless Steel and Brass. Standard sizes (Metric thread (ISO 261)): M4 (10-30mm), M5 (10-40mm), M6 (10-50mm), M8 (15-50mm). Request a quote for your exact requirement.

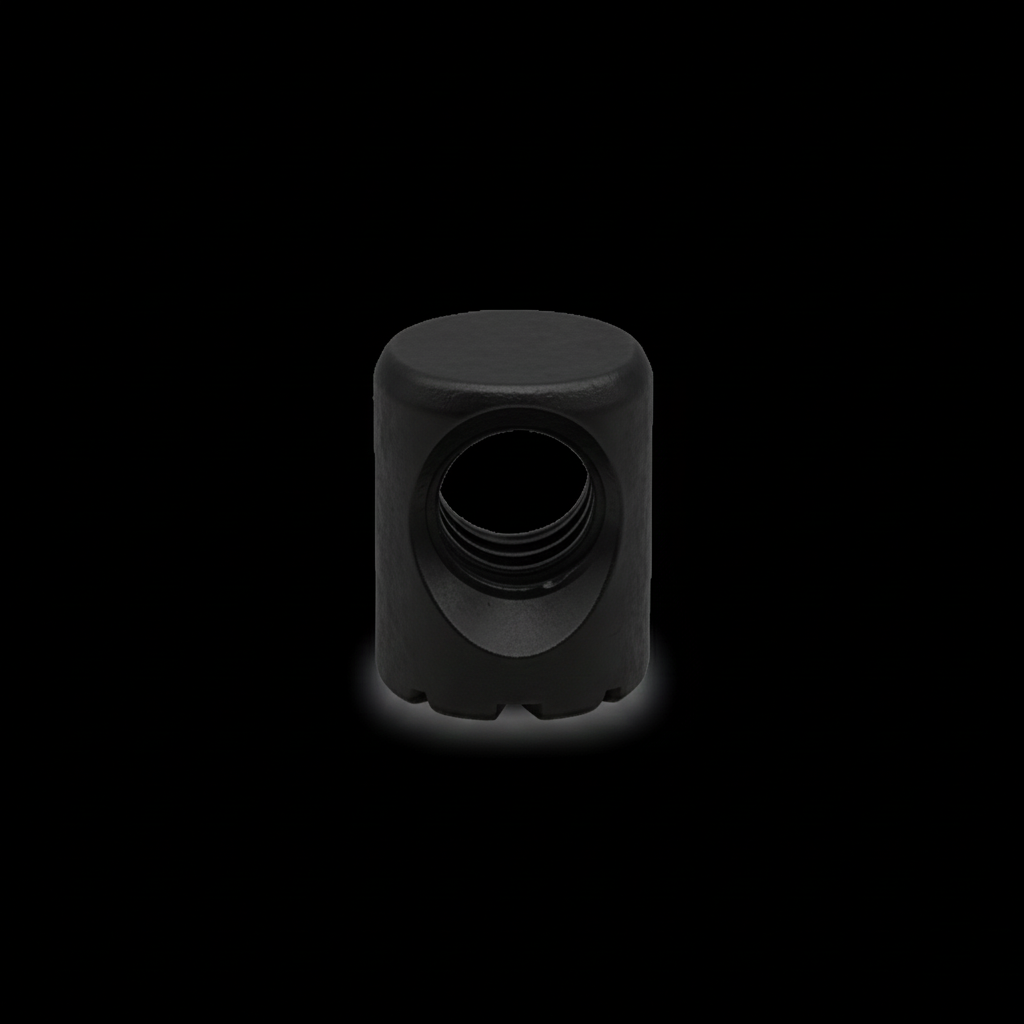

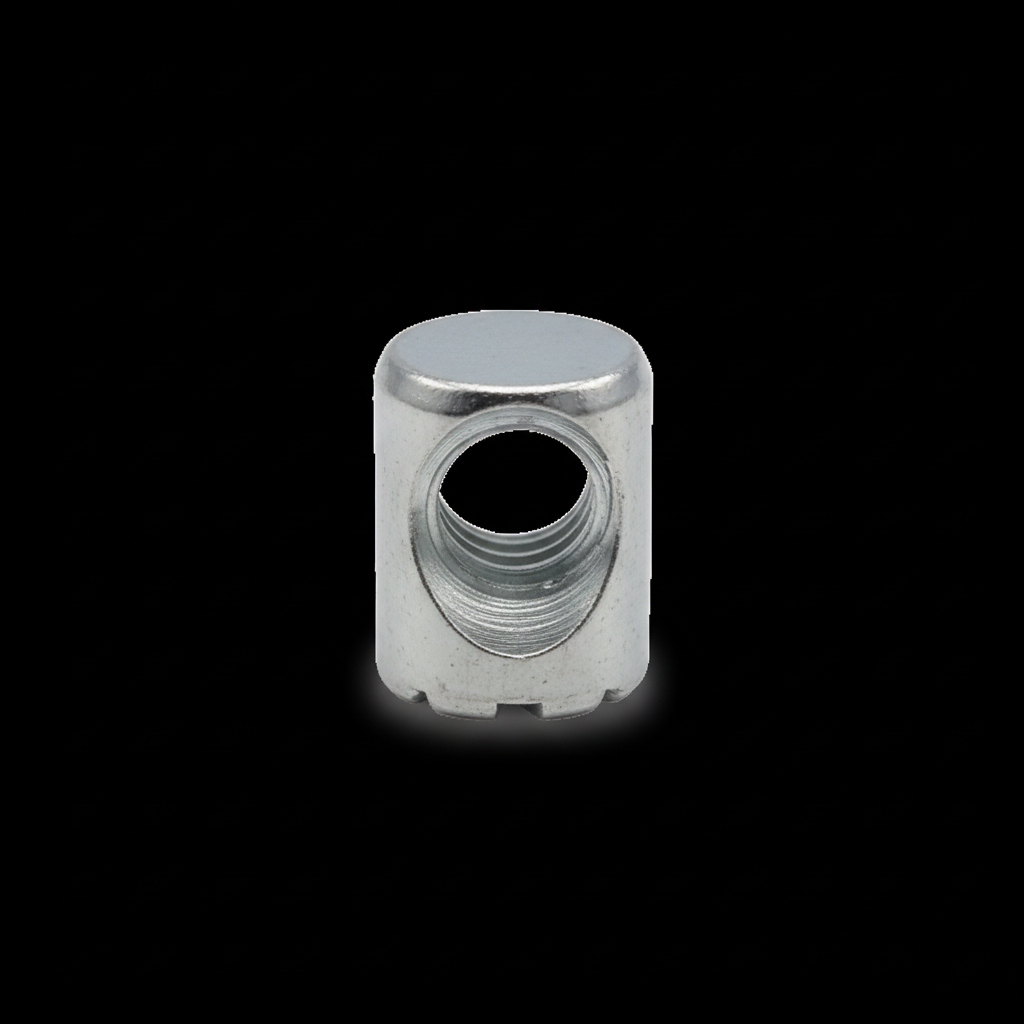

Barrel Nuts (cross dowel nuts) are cylindrical nuts used with bolts to create strong joints in furniture and panel constructions. The barrel sits perpendicular to the bolt and provides high shear and tensile strength for knock-down assemblies.
Common uses and specifications for Barrel Nut:
Barrel Nuts are available in Stainless Steel and Brass. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Match the nut to the thread size and pitch of the bolt or stud, for example M8 x 1.25 coarse. Use a nut grade equal to or higher than the bolt grade. ScrewBazar can match a size from a drawing or sample.
Barrel Nuts are supplied to common metric dimensions. State the required DIN, ISO or IS standard on your enquiry, or send a drawing or sample, and ScrewBazar will match it.
Barrel Nuts are supplied in M4 to M8, lengths 10 mm to 50 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies barrel nuts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
