| mm | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | — | — | — | — | — | — | — | — | — | — | |||||||||||||
| M6 | — | — | — | ||||||||||||||||||||
| M8 | — | ||||||||||||||||||||||
| M10 | — | ||||||||||||||||||||||
| M12 | — | — | — | ||||||||||||||||||||
| M16 | — | — | — | — | — | — | — |
Selected: Galvanized Steel · choose a size from the chart
Available in Galvanized Steel, Stainless Steel 304 / A2-70 and Mild Steel. Standard sizes (DIN 603): M5 (16-80mm), M6 (16-150mm), M8 (20-200mm), M10 (20-200mm), M12 (30-200mm), M16 (50-200mm). Request a quote for your exact requirement.

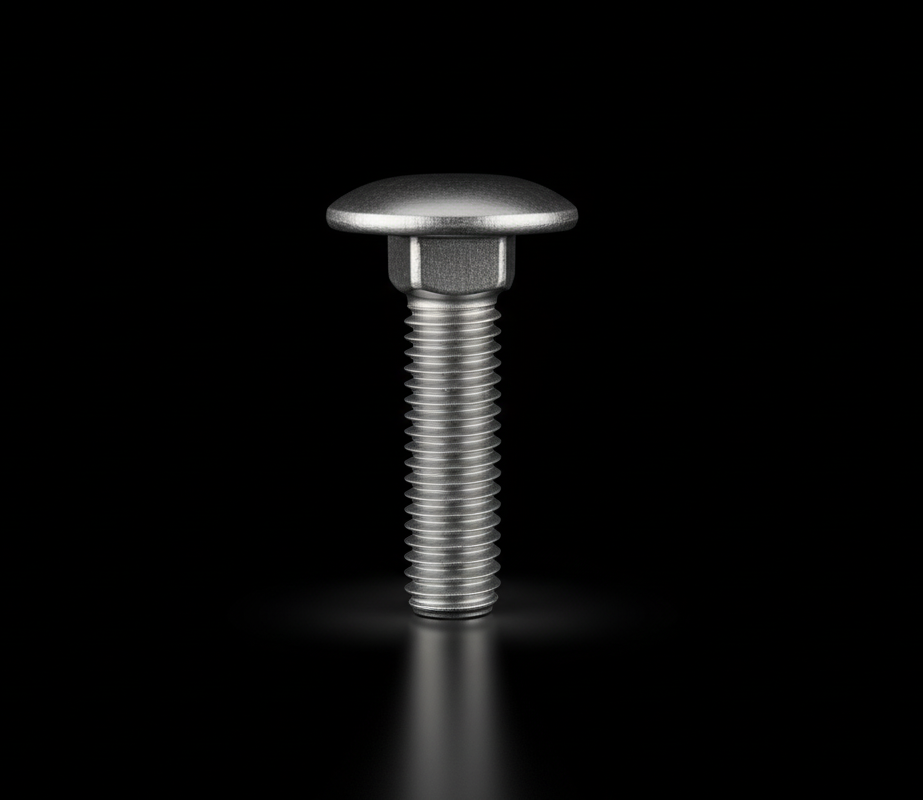

Coach Bolts, also known as carriage bolts, feature a domed head with a square neck that prevents rotation when tightened. Designed for wooden and structural applications, they offer strong clamping force, secure connections, and a smooth, finished appearance. Widely used in construction, furniture, and timber assemblies, Coach Bolts deliver durability, reliability, and professional-grade fastening in both indoor and outdoor setups.
Common uses and specifications for Coach Bolt:
Coach Bolts are available in Galvanized Steel, SS 304 and Mild Steel. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.
Coach Bolts are commonly made to DIN 603. State the standard on your enquiry so dimensions and tolerances match your drawing.
Coach Bolts are supplied in M5 to M16, lengths 16 mm to 200 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies coach bolts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
