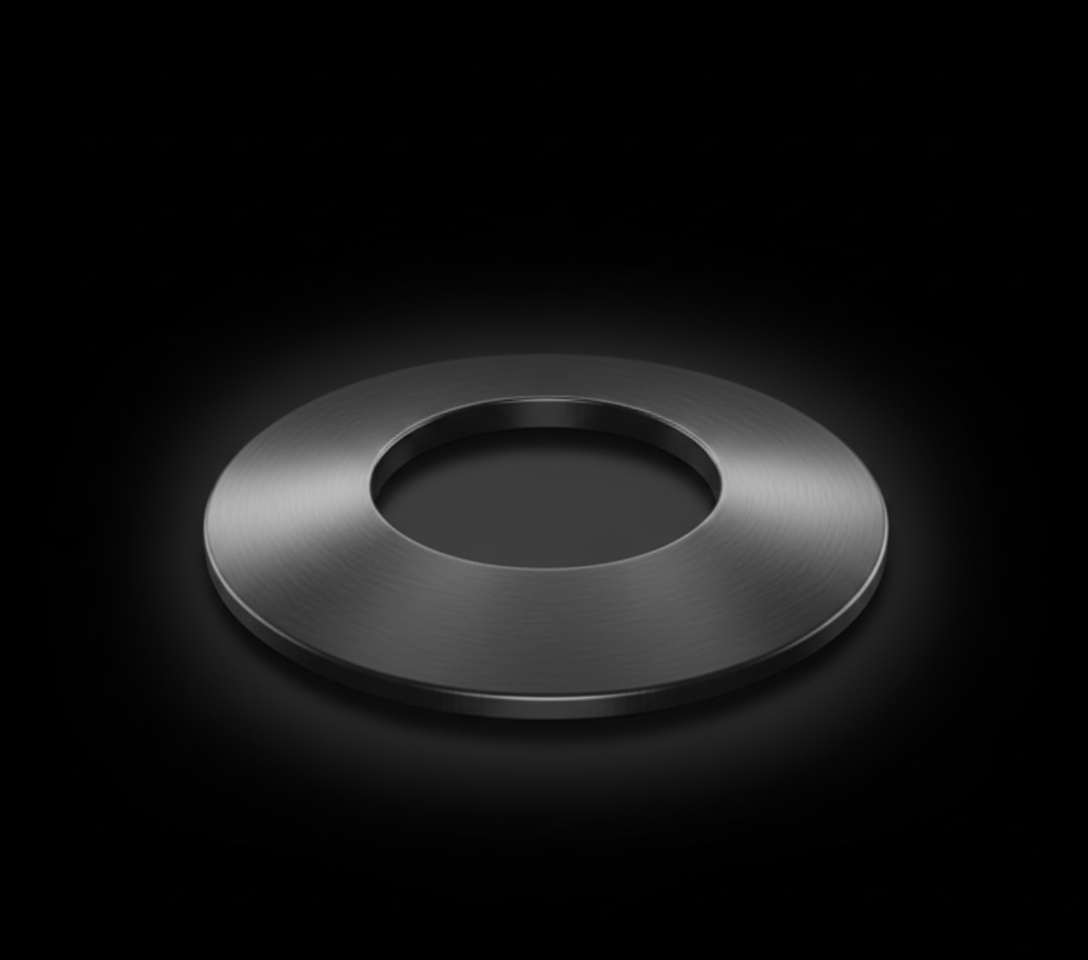

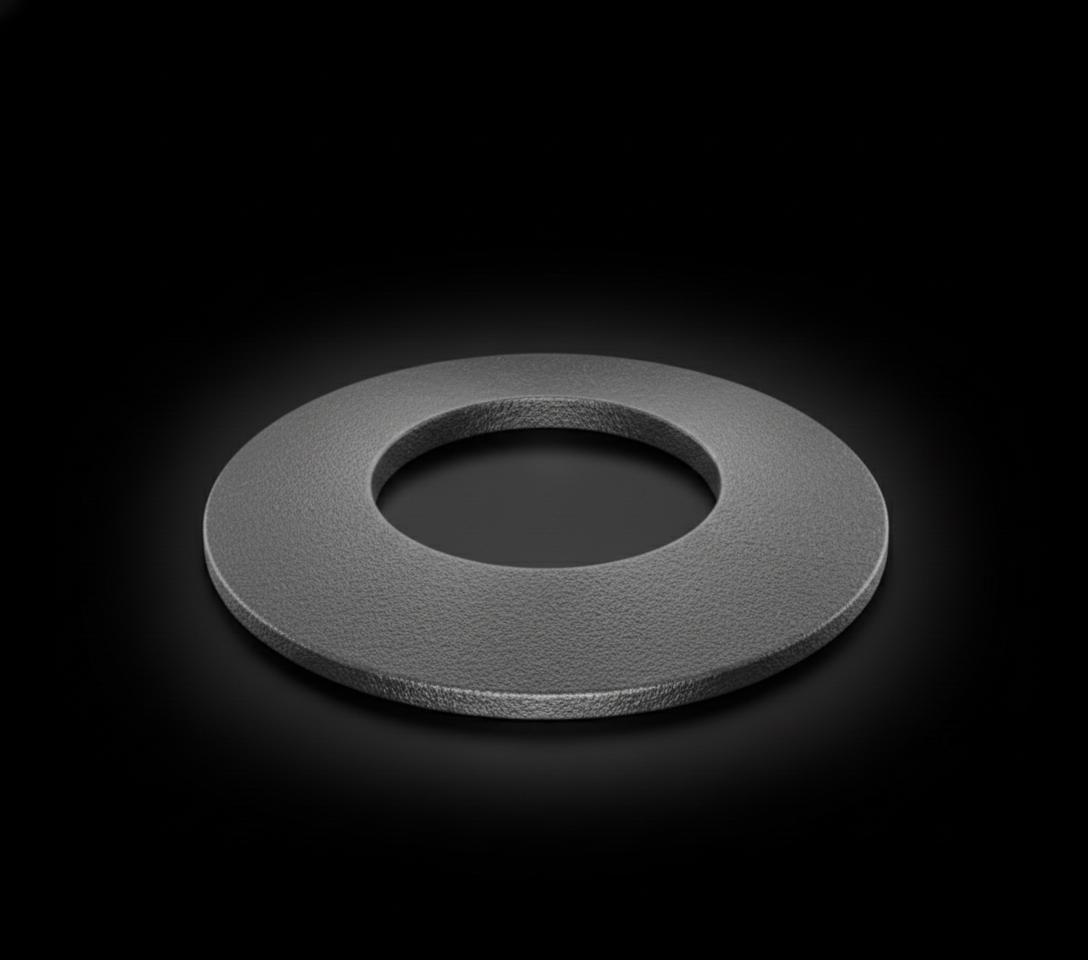

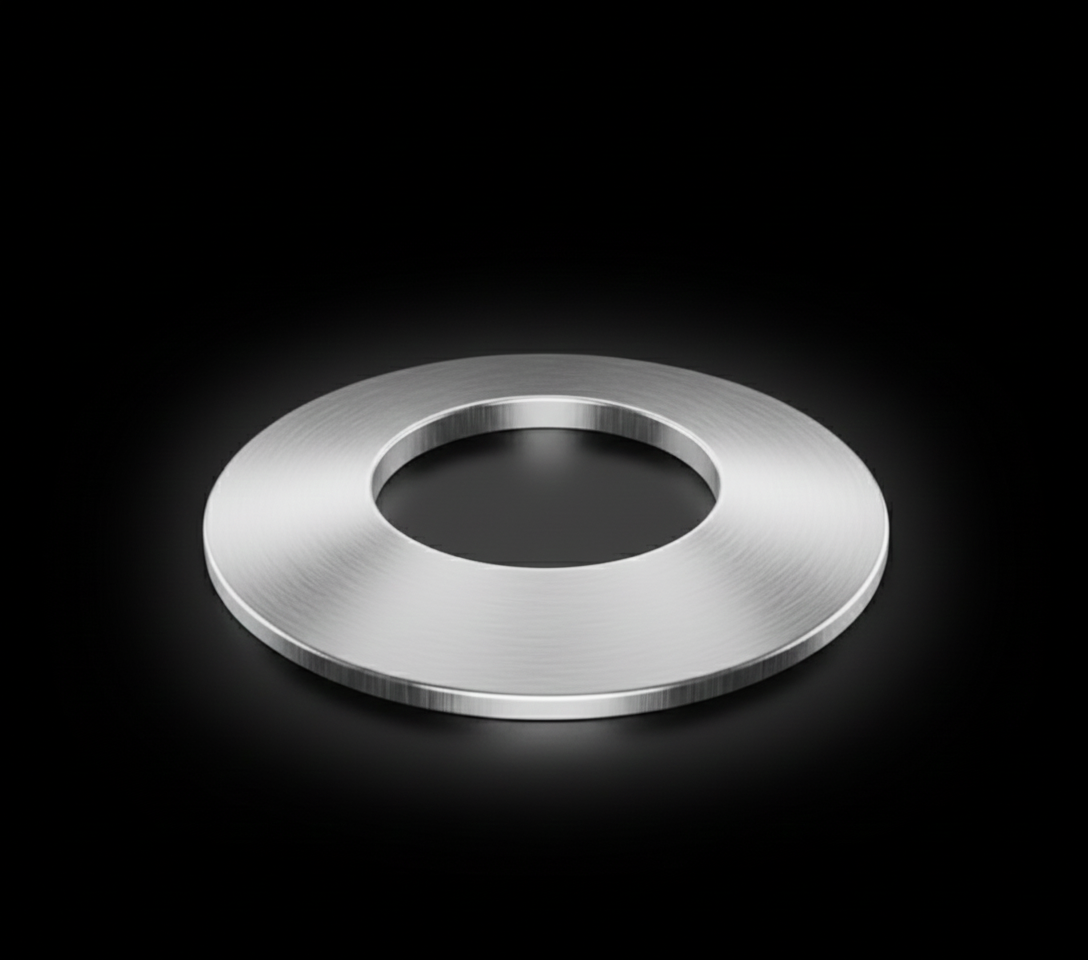

Conical Disc Washer

Product

Spring Steel

DIN 6796
SizeM2M2.5M3M4M5M6M8M10M12M14M16M20M24M30
DIN 6796
In stock— Not manufactured

Selected: Spring Steel · choose a size from the chart

Available in Spring Steel and Stainless Steel. Standard sizes (DIN 6796): M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30. Request a quote for your exact requirement.

Circlip Type B is an internal retaining ring designed to fit tightly into a machined groove inside a bore. Once installed, it forms a strong shoulder that holds components firmly in place, preventing displacement during operation. Known for its durability and compact design, Type B circlips are essential in mechanical and automotive systems that require secure internal retention and dependable long-term performance.

About Conical Disc Washer

Common uses and specifications for Conical Disc Washer:

Applications

  • •Used to retain components on shafts or inside bores, preventing axial movement
  • •Ideal for machinery, automotive assemblies, pumps, gearboxes, and precision equipment
  • •Commonly used in bearings, gears, pulleys, and rotating or sliding mechanisms
  • •Suitable for applications requiring strong, reliable retention with easy installation and removal
  • •Provides secure locking in internal grooves where compact, efficient fastening is needed

Specifications

Materials
Spring Steel, Stainless Steel
Size range
M2 to M30
Standards
DIN 6796

Industries served

  • Industrial machinery
  • Construction
  • Electrical
  • Automotive

Related categories

Conical Disc Washer: frequently asked questions

What materials are conical disc washers available in?

Conical Disc Washers are available in Spring Steel and Stainless Steel. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of conical disc washer?

Washers are sized by the bolt they fit, so an M10 washer suits an M10 bolt. Choose a larger outer diameter for soft materials, thin sheet or oversized holes. ScrewBazar can match a size from a drawing or sample.

Which standards do conical disc washers follow?

Conical Disc Washers are commonly made to DIN 6796. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of conical disc washer are available?

Conical Disc Washers are supplied in M2 to M30. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order conical disc washers in bulk?

Yes. ScrewBazar supplies conical disc washers in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
