| Size | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M36 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIN 125-A |
Selected: Stainless Steel 304 / A2 · choose a size from the chart
Available in Stainless Steel 304 / A2, Stainless Steel 316 / A4, Mild Steel, Galvanized Steel and Brass. Standard sizes (DIN 125-A / ISO 7089): M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M36. Request a quote for your exact requirement.

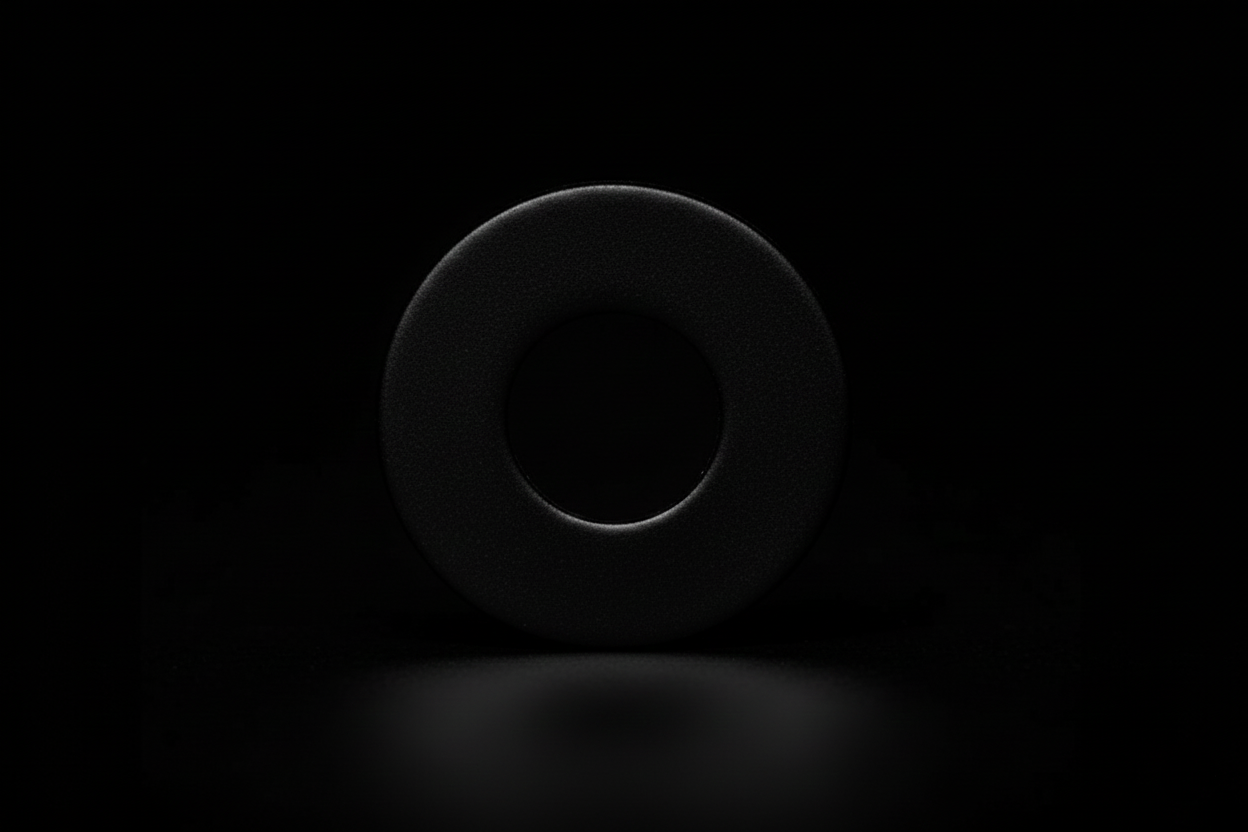

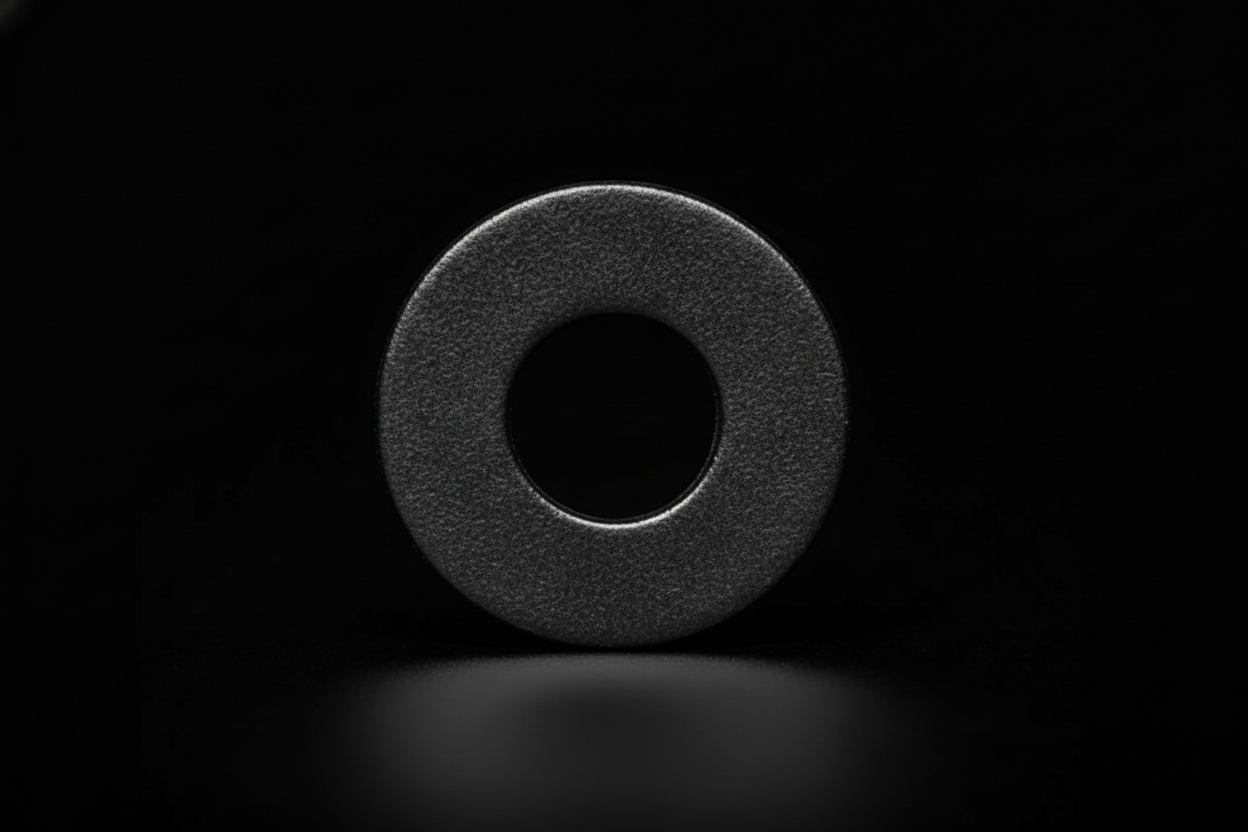

Plain Washers are flat, round washers designed to provide a smooth bearing surface under nuts, bolts, and screws. They help distribute load evenly, protect surfaces from indentation, and enhance the stability of the fastening. Simple yet essential, Plain Washers are widely used in all types of mechanical, structural, and everyday assemblies to ensure reliable, long-lasting fastening performance. Also commonly known as Flat Washer or DIN 125 in the trade.
Plain washers are flat, ring-shaped discs placed under a bolt head or nut to spread the clamp load and protect the surface. They are also called flat washers. The most common standard is DIN 125, equivalent to ISO 7089 (plain) and ISO 7090 (chamfered). DIN 9021 and ISO 7093 cover large washers with an outer diameter about three times the bolt size. The Indian standard is IS 2016. A plain washer reduces surface pressure, so the bolt head does not dig into soft or painted material. It also bridges slotted or oversized holes. Steel washers are made in hardness classes 200 HV and 300 HV. Use 300 HV washers with grade 8.8 and 10.9 bolts. Stainless steel washers are made in SS 304 and SS 316.
An M10 DIN 125 washer has a 10.5 mm inner diameter, 20 mm outer diameter and 2 mm thickness. An M8 washer is 8.4 x 16 x 1.6 mm, an M6 is 6.4 x 12 x 1.6 mm and an M12 is 13 x 24 x 2.5 mm.
A DIN 125 washer has an outer diameter of about twice the bolt size. A DIN 9021 washer has an outer diameter of about three times the bolt size, for example 30 mm for M10. Use DIN 9021 on soft materials, thin sheet and oversized holes.
Yes. Use 300 HV hardened washers with property class 8.8 and 10.9 bolts. A soft 200 HV washer can deform under the high clamp load, which reduces preload and lets the joint loosen.
Put the washer under the part that is turned during tightening, which is usually the nut. In soft materials or slotted holes, use a washer under both the bolt head and the nut.
No. A plain washer spreads the load and protects the surface, but it does not lock the joint. For vibration, use correct preload together with a nyloc nut, wedge lock washer or thread-locking adhesive.
