| mm | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | — | — | — | — | — | — | — | — | — | — | ||||||||||||||||
| M6 | — | — | — | — | — | — | — | |||||||||||||||||||
| M8 | — | — | — | — | ||||||||||||||||||||||
| M10 | — | — | — | |||||||||||||||||||||||
| M12 | — | — | — | — | ||||||||||||||||||||||
| M16 | — | — | — | — | — | |||||||||||||||||||||
| M20 | — | — | — | — | — | — | — | |||||||||||||||||||
| M24 | — | — | — | — | — | — | — | — | — |
Selected: Stainless Steel 304 / A2-70 · choose a size from the chart
Available in Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel, Galvanized Steel and Brass. Standard sizes (DIN 931 / DIN 933): M5 (8-80mm), M6 (10-120mm), M8 (12-160mm), M10 (16-200mm), M12 (20-200mm), M16 (25-200mm), M20 (35-200mm), M24 (45-200mm). Request a quote for your exact requirement.

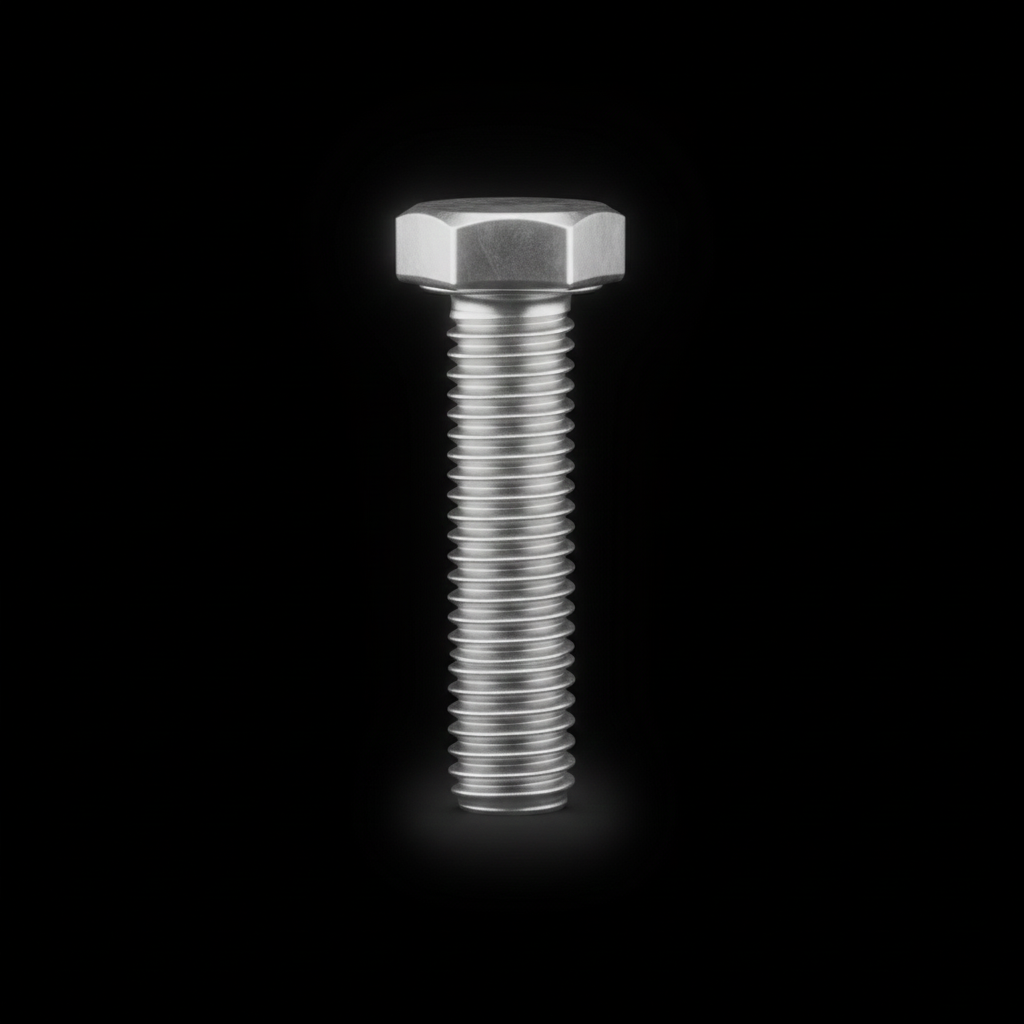

Hex Bolts feature a six-sided head designed for easy tightening with wrenches or spanners, offering excellent grip and torque. Known for their strength and durability, they ensure secure fastening in both heavy-duty and general-purpose applications. With precise threading and robust construction, Hex Bolts deliver dependable performance, resistance to loosening, and long-lasting stability in structural, mechanical, and engineered assemblies. Also commonly known as Hexagon Bolt or Hex Head Bolt in the trade.
Hex bolts are externally threaded fasteners with a six-sided head, tightened with a spanner or socket and used with a nut or a tapped hole. They are also called hexagon bolts, hex head bolts or machine bolts. Fully threaded hex bolts are made to DIN 933 and ISO 4017. Partly threaded hex bolts, with a plain shank under the head, are made to DIN 931 and ISO 4014. The Indian standard is IS 1364. Steel hex bolts are graded by property class. Class 4.6 is general-purpose mild steel, class 8.8 is high tensile (800 MPa minimum) and class 10.9 is used for heavier loads. Stainless steel hex bolts are A2-70 (SS 304) and A4-70 (SS 316). Hot-dip galvanised bolts are used for outdoor steel structures.
DIN 933 hex bolts are threaded along the full length. DIN 931 hex bolts have a plain shank under the head and are threaded only near the end. Use DIN 931 where the joint is loaded in shear, so the plain shank, not the thread, sits in the shear plane.
They are property classes under ISO 898-1 and IS 1367. The first number times 100 is the nominal tensile strength in MPa, and the second number is the yield-to-tensile ratio. So 8.8 means 800 MPa tensile and 640 MPa yield, and 10.9 means 1,000 MPa tensile and 900 MPa yield nominal.
Under ISO 4017 an M10 hex bolt takes a 16 mm spanner and an M12 takes 18 mm. Under the older DIN 933 the same sizes take 17 mm and 19 mm. M6 = 10 mm, M8 = 13 mm, M16 = 24 mm and M20 = 30 mm are the same in both standards.
An M12 grade 8.8 coarse-thread bolt with lightly oiled threads (friction coefficient about 0.14) is typically tightened to about 85 Nm. An M10 8.8 bolt is about 49 Nm and an M16 8.8 bolt about 210 Nm. Galvanised and stainless bolts need different values, so check the friction condition first.
No. Hot-dip galvanising adds a thick zinc layer to the bolt thread. Galvanised bolts are used with nuts tapped oversize after galvanising, as described in ISO 10684. A standard nut will not run on or will strip the coating.
Use high tensile 8.8 or 10.9 steel bolts when strength is the main requirement. Use SS 304 or SS 316 when corrosion resistance matters more. Stainless A2-70 bolts have a tensile strength of 700 MPa, which is below grade 8.8 steel.
