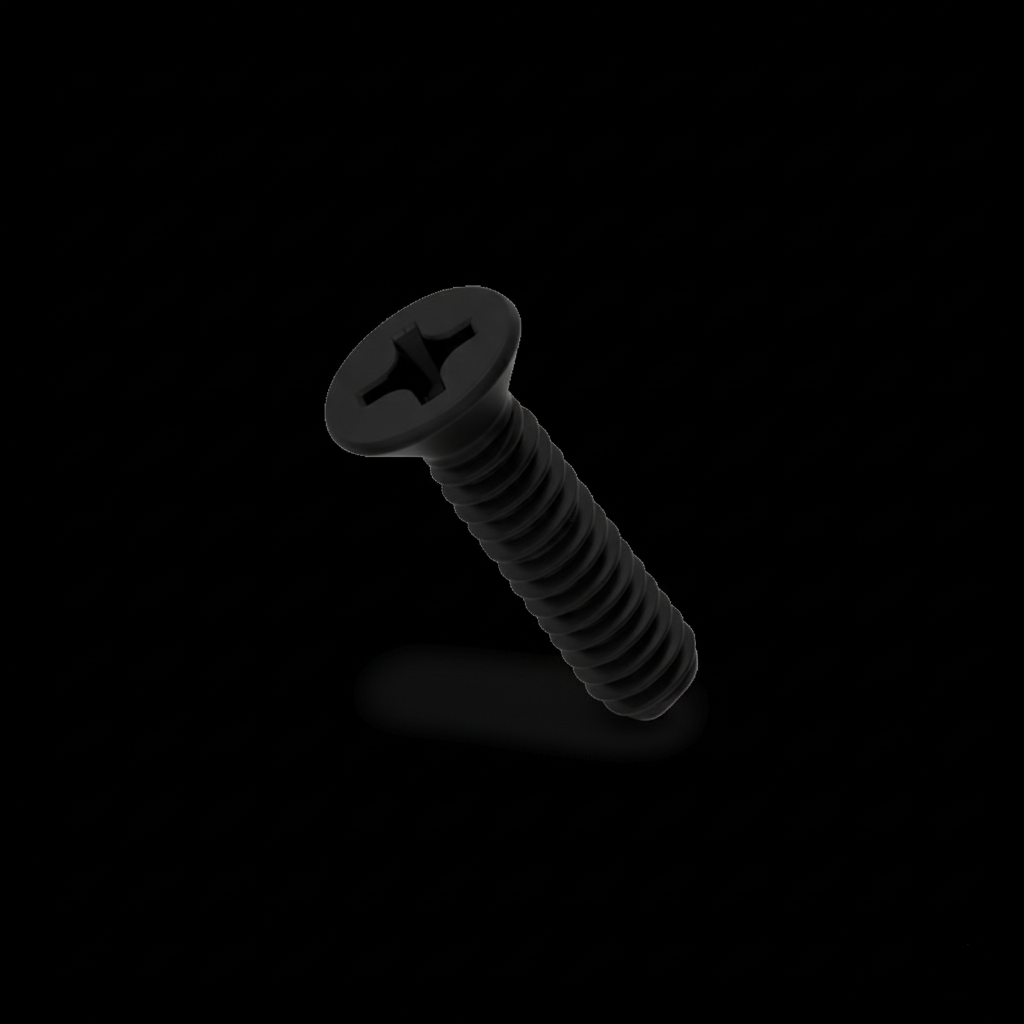

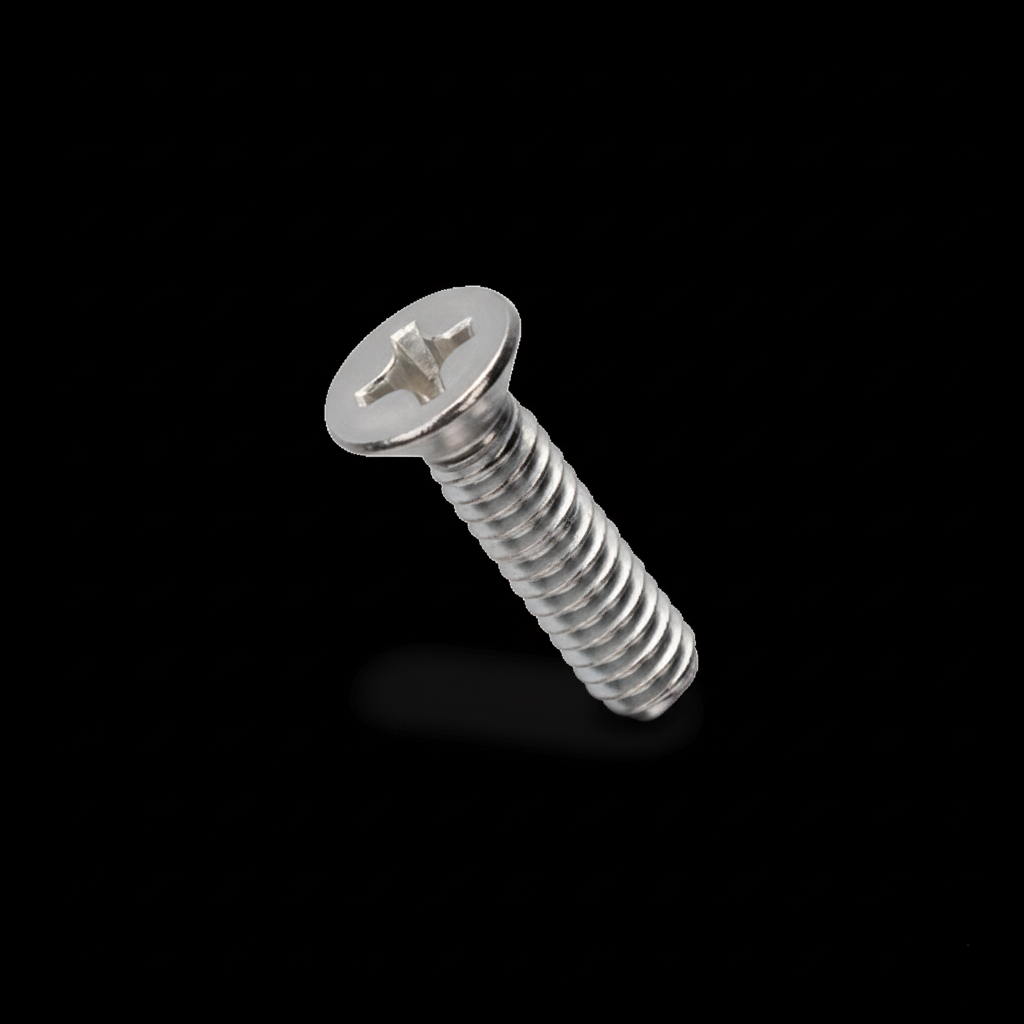

CSK Phillips Screw (Countersunk Machine Screw)

Product

Stainless Steel 202

DIN 965 / ISO 7046
mm34568101216202530354045505560
M2โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”
M2.5โ€”โ€”โ€”โ€”โ€”โ€”โ€”
M3โ€”โ€”โ€”โ€”โ€”โ€”โ€”
M4โ€”โ€”โ€”โ€”โ€”โ€”
M5โ€”โ€”โ€”โ€”โ€”
M6โ€”โ€”โ€”โ€”
M8โ€”โ€”โ€”โ€”โ€”
In stockโ€” Not manufactured

Selected: Stainless Steel 202 ยท choose a size from the chart

Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Brass. Standard sizes (DIN 965 / ISO 7046): M2 (3-20mm), M2.5 (3-25mm), M3 (4-30mm), M4 (5-40mm), M5 (6-50mm), M6 (8-60mm), M8 (10-60mm). Request a quote for your exact requirement.

CSK Head Phillips Machine Screws feature a flat, countersunk head that sits flush with the surface, combined with a Phillips cross-recess drive. This design provides a clean, streamlined finish while maintaining easy installation and reliable fastening. Perfect for applications requiring smooth, snag-free surfaces in electronics, furniture, and precision assemblies. Also commonly known as Countersunk Machine Screw or Flat Head Phillips Screw in the trade.

About CSK Phillips Screw

CSK Phillips machine screws are countersunk machine screws with a 90-degree flat head and a cross recess drive. They are also called countersunk Phillips screws, flat head Phillips screws or CPPMS. The standards are ISO 7046 and DIN 965. The conical head sits fully inside a 90-degree countersunk hole, leaving the surface flush. The screw has a metric machine thread and goes into a tapped hole or a nut. The length of a countersunk screw is measured including the head. The cross recess is usually Phillips (type H); Pozidriv (type Z) is also made under the same standards. Steel screws are typically property class 4.8, and stainless steel screws are A2-70 (SS 304) or A4-70 (SS 316). Brass versions are used on electrical fittings.

Applications

  • โ€ขHinges and door and cabinet hardware
  • โ€ขElectrical switch plates and panels
  • โ€ขAppliance and electronics housings
  • โ€ขNameplates and covers that must sit flush
  • โ€ขAluminium and sheet metal assemblies
  • โ€ขFurniture fittings with countersunk holes

Specifications

Materials
SS 202, SS 304 (A2-70), SS 316 (A4-70), Mild Steel, Brass
Size range
M2 to M8 metric coarse thread, lengths 4 mm to 60 mm
Standards
ISO 7046, DIN 965

Industries served

  • Electrical
  • Electronics
  • Furniture and interiors
  • Appliances
  • Sheet metal fabrication

Related categories

CSK Phillips Screw: frequently asked questions

How is the length of a CSK Phillips screw measured?

A countersunk screw is measured from the top of the head to the end of the screw, because the whole head sits inside the part. A pan head screw is measured from under the head.

What countersink angle is needed for DIN 965 screws?

DIN 965 and ISO 7046 screws have a 90-degree head, so the hole needs a 90-degree countersink. An 82-degree countersink, used for inch screws, will not let the head sit flush.

Which Phillips driver fits a CSK machine screw?

Under ISO 7046, M2 screws take a PH0 driver, M2.5 and M3 take PH1, M3.5 to M5 take PH2, M6 takes PH3 and M8 takes PH4. The correct driver size reduces cam-out and damage to the recess.

Can CSK Phillips screws be used in thin sheet metal?

Only if the sheet is thick enough to hold the full countersink depth. In thin sheet the countersink cuts through, and the head pulls through under load. For thin sheet, dimple the hole or use a pan head screw with a washer.

Should I use SS 304 or brass countersunk screws?

Use SS 304 or SS 316 for strength and corrosion resistance on hardware, panels and outdoor fittings. Use brass for electrical terminals, switch plates and decorative fittings. Brass is softer, so drive it carefully to avoid damaging the recess.
