| mm | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | — | — | — | — | — | — | — | — | — | |||||||||
| M2.5 | — | — | — | — | — | — | — | — | ||||||||||
| M3 | — | — | — | — | — | — | — | — | ||||||||||
| M4 | — | — | — | — | — | — | — | |||||||||||
| M5 | — | — | — | — | — | — | ||||||||||||
| M6 | — | — | — | — | — | — | ||||||||||||
| M8 | — | — | — | — | — | |||||||||||||
| M10 | — | — | — | — | — | — |
Selected: Stainless Steel 202 · choose a size from the chart
Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Brass. Standard sizes (DIN 963 / ISO 2009): M2 (3-20mm), M2.5 (3-25mm), M3 (4-30mm), M4 (5-40mm), M5 (6-50mm), M6 (8-60mm), M8 (10-80mm), M10 (12-80mm). Request a quote for your exact requirement.

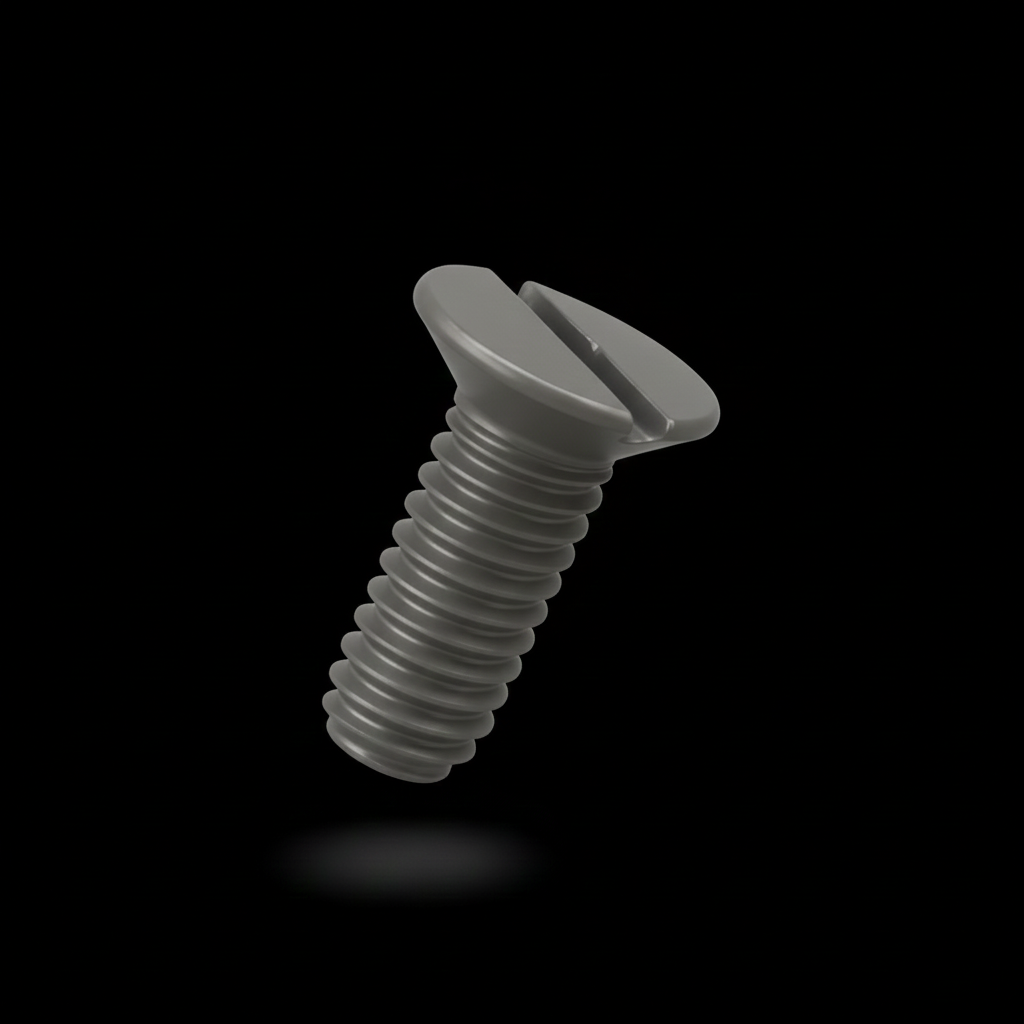

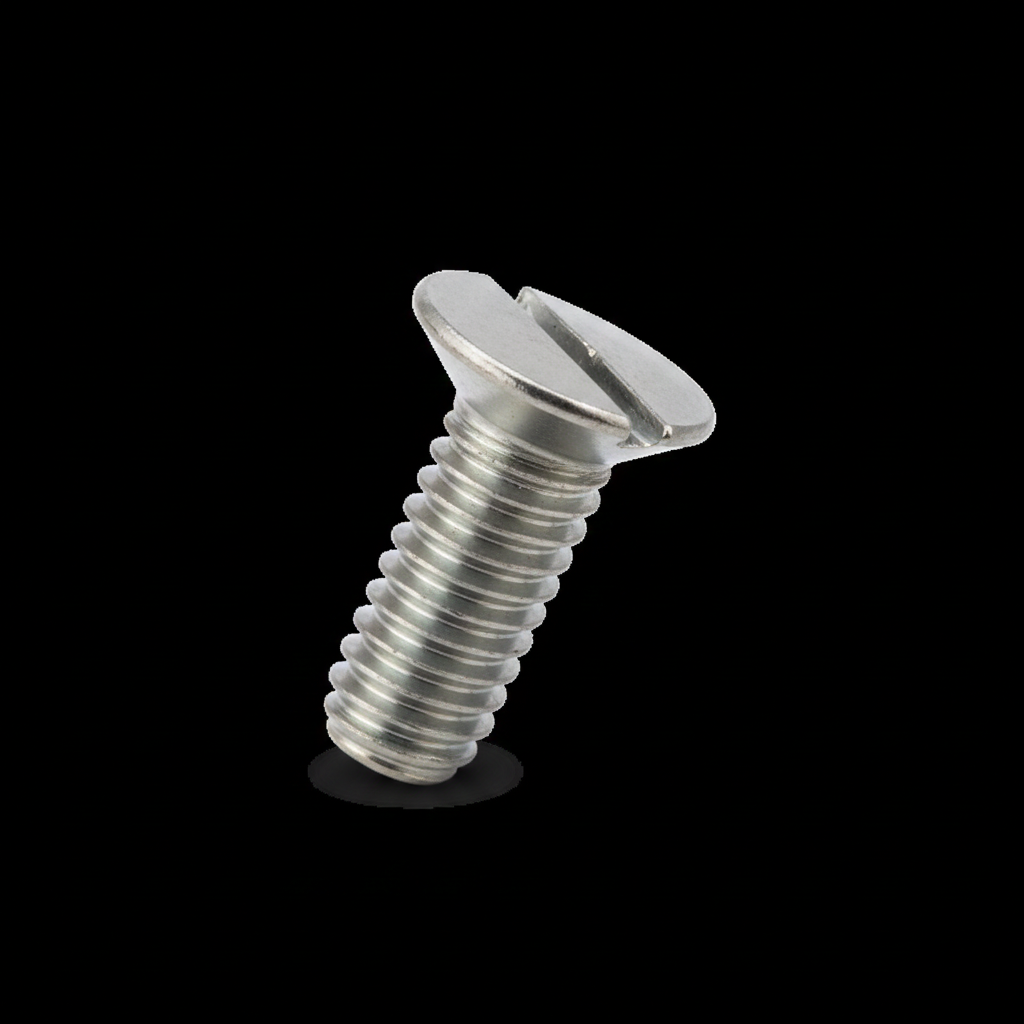

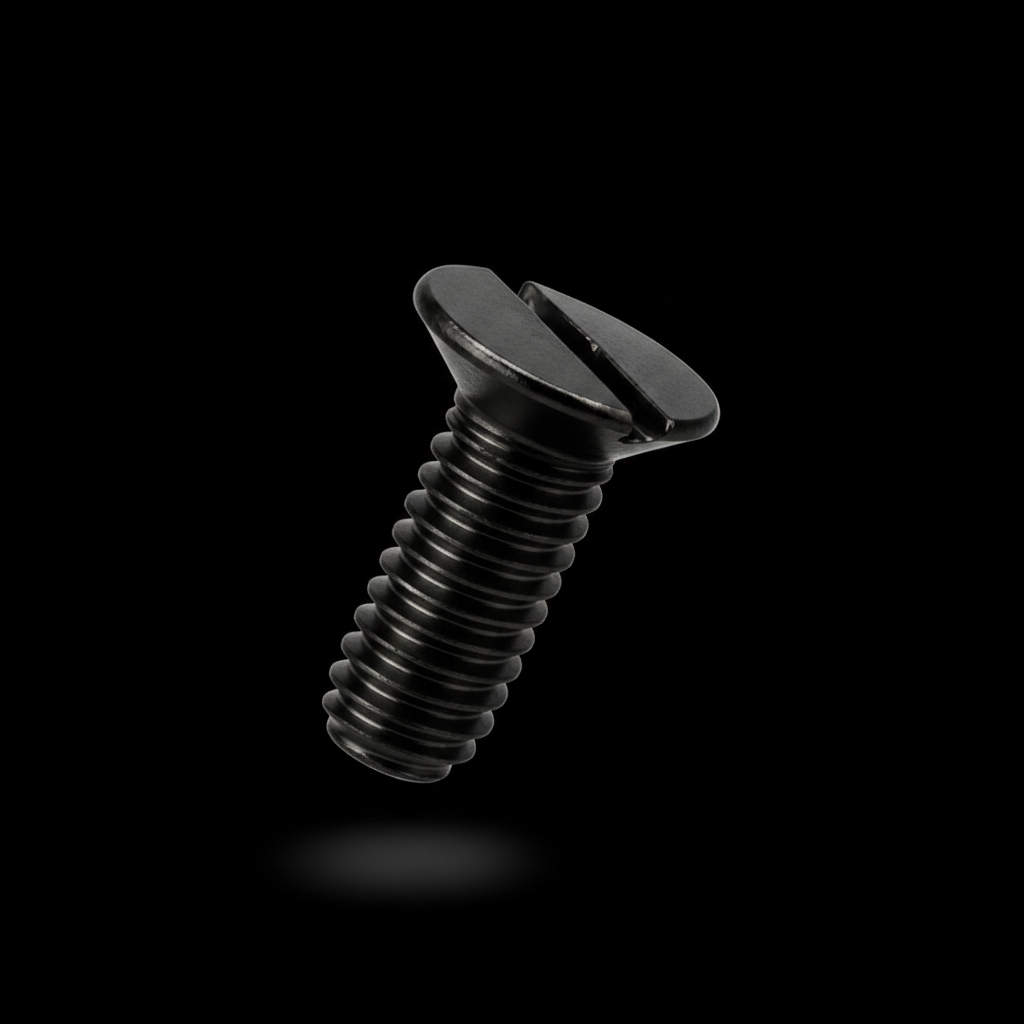

CSK Slotted Machine Screws feature a flat, countersunk head with a traditional slotted drive. The countersunk design allows the screw to sit flush with the surface, providing a clean, streamlined finish. The slotted drive offers universal compatibility with flat-blade screwdrivers. Perfect for vintage restorations, electrical equipment, and applications requiring a classic aesthetic.
Common uses and specifications for CSK Slotted Machine Screw:
CSK Slotted Machine Screws are available in SS 202, SS 304, SS 316, Mild Steel and Brass. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the thread size from the hole or nut it must fit, then pick a length that gives full thread engagement of at least one diameter in steel and 1.5 to 2 diameters in aluminium or plastic. ScrewBazar can match a size from a drawing or sample.
CSK Slotted Machine Screws are commonly made to DIN 963 and ISO 2009. State the standard on your enquiry so dimensions and tolerances match your drawing.
CSK Slotted Machine Screws are supplied in M2 to M10, lengths 3 mm to 80 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies CSK slotted machine screws in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
