Socket Head Cap Screw (Allen Screw)

Product

Stainless Steel 202

DIN 912 / ISO 4762
mm56810121620253035404550556065708090100110120130140150160180200
M3———————————————————
M4——————————————————
M5—————————————————
M6————————————————
M8——————————————
M10—————————————
M12————————————
M16—————————
M20————————
M24——————————
In stock— Not manufactured

Selected: Stainless Steel 202 · choose a size from the chart

Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel, Brass, Nylon and Black Oxide. Standard sizes (DIN 912 / ISO 4762): M3 (5-30mm), M4 (6-40mm), M5 (8-50mm), M6 (10-60mm), M8 (12-80mm), M10 (16-100mm), M12 (20-120mm), M16 (25-160mm), M20 (30-200mm), M24 (40-200mm). Request a quote for your exact requirement.

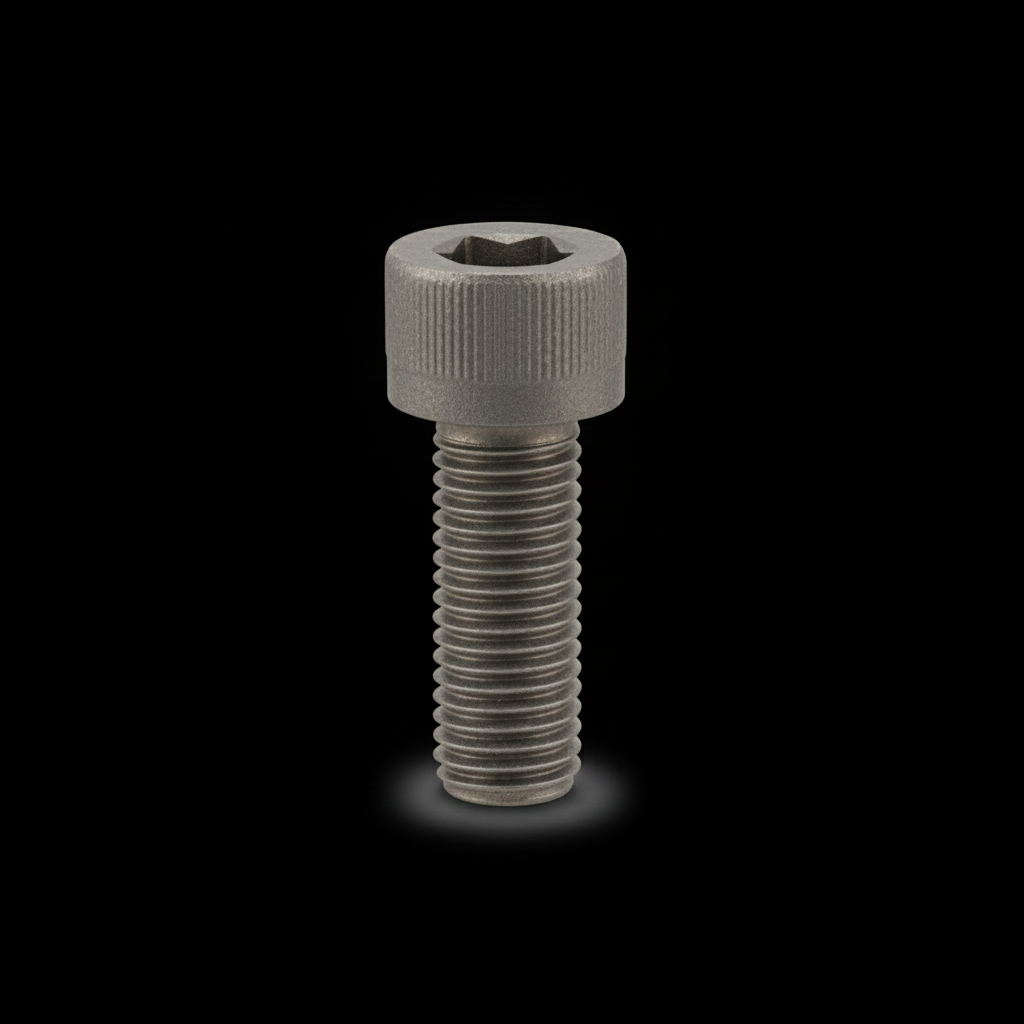

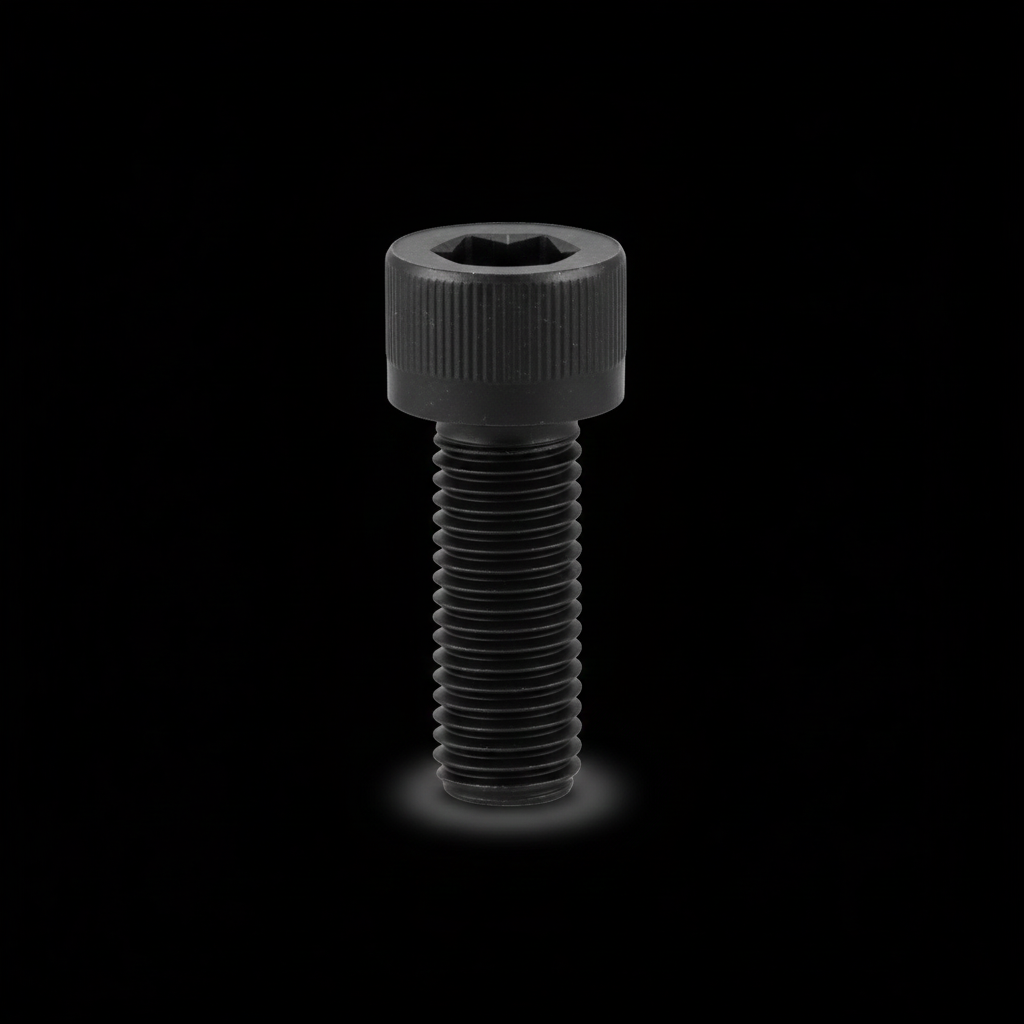

An Allen Cap Socket Head Cap Screw (SHCS) is a high-strength fastener featuring a cylindrical head with an internal hex drive, allowing reliable tightening using a hex key. Its design offers excellent clamping force, durability, and the ability to fit into confined areas, making it a preferred choice in precision engineering, heavy machinery, and structural assemblies. Also commonly known as Allen Screw or Socket Head Bolt in the trade.

About Socket Head Cap Screw

Socket head cap screws (SHCS) are machine screws with a tall cylindrical head and an internal hexagon drive. They are also called Allen cap screws, Allen bolts or hex socket screws, because they are tightened with an Allen (hex) key. The dimensions are set by DIN 912, ISO 4762 and IS 2269. The head diameter is about 1.5 times the thread diameter, and the head height equals the thread diameter. This compact head fits into counterbored holes and tight spaces where a spanner cannot reach. The socket drive takes high tightening torque without cam-out. Alloy steel socket head cap screws are made in property classes 8.8, 10.9 and 12.9. Class 12.9 has a minimum tensile strength of 1,220 MPa. Stainless steel versions are A2-70 (SS 304) and A4-70 (SS 316).

Applications

  • •Machine tool fixtures, jigs and CNC work-holding
  • •Press tools, dies and injection moulds
  • •Automotive engine and gearbox assembly
  • •Hydraulic and pneumatic cylinder end caps
  • •Robotics and linear motion assemblies
  • •Counterbored joints where the head must sit below the surface
  • •Food processing and pharma equipment (SS 304 / SS 316)

Specifications

Materials
SS 202, SS 304 (A2-70), SS 316 (A4-70), Mild Steel, Black Oxide Alloy Steel, Brass, Nylon
Size range
M3 to M24 metric coarse thread, lengths 6 mm to 150 mm
Standards
DIN 912, ISO 4762, IS 2269

Industries served

  • Machine tools and CNC
  • Automotive
  • Die and mould making
  • Industrial automation
  • Hydraulics and pneumatics
  • Food and pharma equipment

Related categories

Socket Head Cap Screw: frequently asked questions

Is an Allen bolt the same as a socket head cap screw?

Yes. Allen bolt, Allen cap screw and socket head cap screw are trade names for the same part. It is a screw with a cylindrical head and a hexagon socket, made to DIN 912, ISO 4762 or IS 2269. "Allen" refers to the hex key used to tighten it.

What Allen key size fits an M6 socket head cap screw?

An M6 socket head cap screw takes a 5 mm Allen key. Other common sizes are M3 = 2.5 mm, M4 = 3 mm, M5 = 4 mm, M8 = 6 mm, M10 = 8 mm, M12 = 10 mm, M16 = 14 mm and M20 = 17 mm. These key sizes are fixed by DIN 912 and ISO 4762.

What is the difference between grade 8.8, 10.9 and 12.9 Allen screws?

The grade is the property class of the steel. Class 8.8 has a minimum tensile strength of 800 MPa and yield strength of 640 MPa. Class 10.9 has 1,040 MPa tensile and 940 MPa yield. Class 12.9 has 1,220 MPa tensile and 1,100 MPa yield, and is the usual grade for black oxide Allen cap screws used in tooling.

What tightening torque should I use for an M8 socket head cap screw?

For an M8 coarse-thread socket head cap screw with lightly oiled threads (friction coefficient about 0.14), typical torque is 25 Nm for class 8.8, 35 Nm for class 10.9 and 41 Nm for class 12.9. A stainless A2-70 M8 screw is typically tightened to about 18 Nm. Confirm the final value against your joint design.

Should I choose SS 304 or SS 316 socket head cap screws?

SS 304 (A2) is suitable for indoor, humid and general outdoor use. SS 316 (A4) contains 2 to 3 percent molybdenum, which gives better resistance to chlorides, sea water and cleaning chemicals. Both are typically supplied as property class 70, with a minimum tensile strength of 700 MPa.

Are DIN 912 and ISO 4762 screws interchangeable?

Yes, for practical purposes. ISO 4762 replaced DIN 912 and keeps the same head diameter, head height and socket size for standard metric sizes. IS 2269 is the Indian equivalent. Screws to any of the three standards fit the same counterbore and use the same Allen key.
