Button Head Cap Screw (Allen Button Head Bolt)

Product

Stainless Steel 202

ISO 7380
mm568101216202530354045505560657080
M3——————————
M4——————————
M5—————————
M6———————
M8——————
M10—————
M12—————
M16———————
In stock— Not manufactured

Selected: Stainless Steel 202 · choose a size from the chart

Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel, Brass, Nylon and Black Oxide. Standard sizes (ISO 7380): M3 (5-25mm), M4 (6-30mm), M5 (8-40mm), M6 (8-50mm), M8 (10-60mm), M10 (12-70mm), M12 (16-80mm), M16 (25-80mm). Request a quote for your exact requirement.

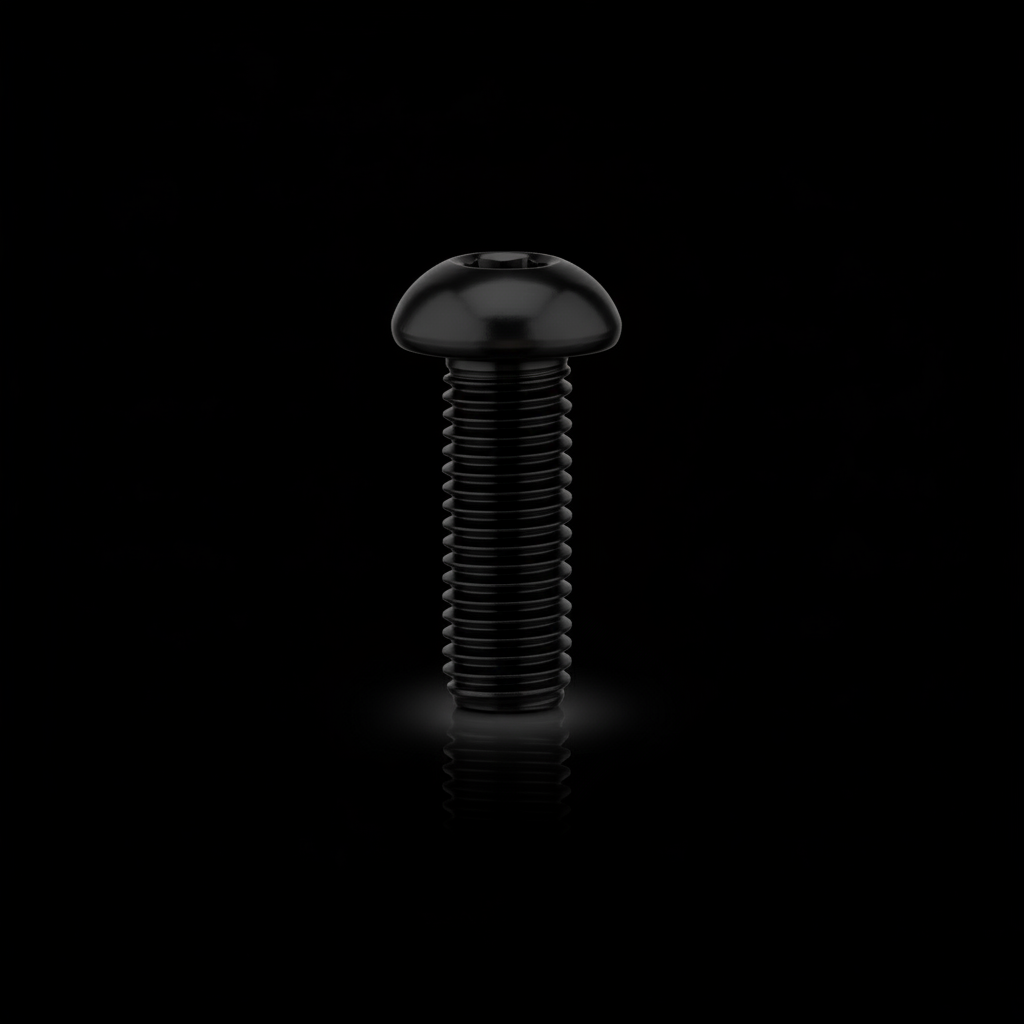

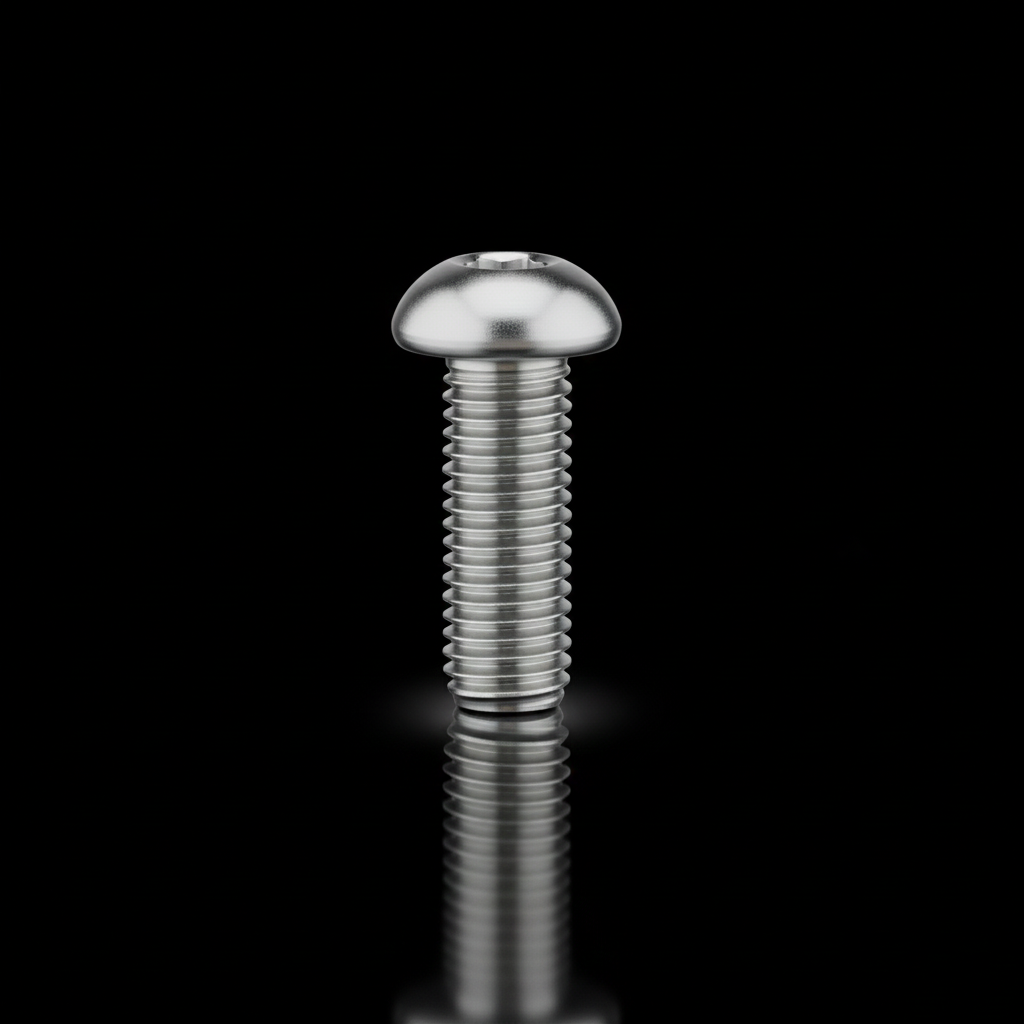

An Allen Button Head Cap Screw (BHCS) is a machine screw featuring a rounded, low-profile head with an internal hex drive. It offers a clean appearance, easy installation, and a broader bearing surface, making it well-suited for fastening panels, guards, and components where moderate strength, safety, and aesthetics are important. Also commonly known as Allen Button Head Bolt or Dome Head Allen Screw in the trade.

About Button Head Cap Screw

Button head cap screws (BHCS) are hex socket screws with a low, domed head. They are also called button head Allen screws or dome head Allen bolts. The standard is ISO 7380-1; the flanged version is ISO 7380-2. The head is wider and much lower than a socket head cap screw, so it sits close to the surface and has no sharp edges. The rounded profile is used on guards, covers and panels where a flush or snag-free finish matters. Button head screws use a smaller hex key than a socket head cap screw of the same thread size. This limits the tightening torque, so they are used for light and medium loads rather than high-preload structural joints. They are made in alloy steel classes 8.8, 10.9 and 12.9 and in stainless steel A2 and A4.

Applications

  • •Machine guards and safety covers
  • •Sheet metal panels and enclosures
  • •Aluminium extrusion frames and profiles
  • •Consumer electronics and appliance housings
  • •Furniture and display fittings
  • •Thin materials that need a wide bearing face

Specifications

Materials
SS 202, SS 304 (A2), SS 316 (A4), Mild Steel, Black Oxide Alloy Steel, Brass, Nylon
Size range
M3 to M16 metric coarse thread, lengths 6 mm to 60 mm
Standards
ISO 7380-1, ISO 7380-2 (flanged)

Industries served

  • Industrial machinery
  • Electrical enclosures
  • Automation and framing systems
  • Consumer products
  • Furniture

Related categories

Button Head Cap Screw: frequently asked questions

What is the difference between a button head and a socket head cap screw?

A button head cap screw (ISO 7380) has a low domed head that is about 55 percent of the thread diameter in height. A socket head cap screw (DIN 912) has a cylindrical head equal in height to the thread diameter. Button heads look neater and sit lower, but they use a smaller hex key and accept less torque.

What Allen key size fits a button head screw?

ISO 7380 button head screws use M3 = 2 mm, M4 = 2.5 mm, M5 = 3 mm, M6 = 4 mm, M8 = 5 mm, M10 = 6 mm and M12 = 8 mm hex keys. This is one size smaller than a socket head cap screw of the same thread, so a worn key slips more easily.

Can button head screws be used for high-strength joints?

Only with care. The shallow socket limits how much torque can be applied, so a button head screw rarely reaches the full preload of its property class. For joints that need high clamp force, use a DIN 912 socket head cap screw or a hex bolt instead.

What is ISO 7380-2?

ISO 7380-2 covers button head screws with an integrated flange under the head. The flange spreads the load like a built-in washer. It is useful on thin sheet, plastic and slotted holes where a plain button head could pull through.

Which material should I use for button head screws on outdoor equipment?

Use SS 304 (A2) for general outdoor exposure and SS 316 (A4) near the sea or where chlorides and cleaning chemicals are present. Black oxide alloy steel screws have only light corrosion protection and are intended for oiled, indoor use.
