Curved Washer | Spherical Washer | Angle Compensation | Beveled | Channel Applications | Multiple Materials

Product

Mild Steel

DIN 6319
SizeM6M8M10M12M16M20M24M30M36
DIN 6319
In stock— Not manufactured

Selected: Mild Steel · choose a size from the chart

Available in Mild Steel, Stainless Steel 304 / A2 and Zinc Plated. Standard sizes (DIN 6319): M6, M8, M10, M12, M16, M20, M24, M30, M36. Request a quote for your exact requirement.

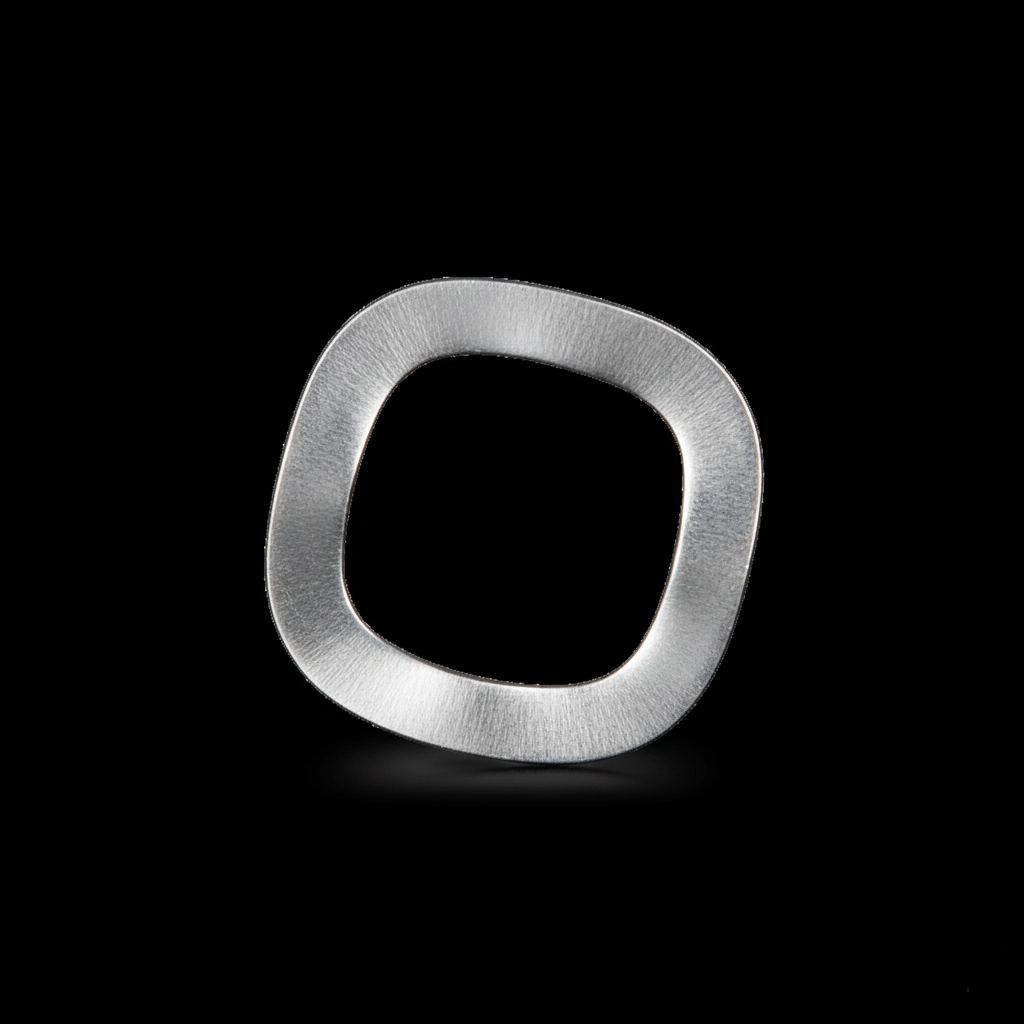

Curved Washers (Spherical Washers) have one flat side and one curved side to compensate for angled surfaces. Used with structural bolts, I-beams, and channels where surfaces aren't parallel.

About Curved Washer

Common uses and specifications for Curved Washer:

Applications

  • •Curved/Spherical Washer
  • •One Flat, One Curved Side
  • •Angle Compensation
  • •I-Beams, Channels, Structural
  • •Used in Pairs (Opposing Curves)
  • •DIN 6319

Specifications

Materials
Mild Steel, SS 304, Zinc Plated
Size range
M6 to M36
Standards
DIN 6319

Industries served

  • Industrial machinery
  • Construction
  • Electrical
  • Automotive

Related categories

Curved Washer: frequently asked questions

What materials are curved washers available in?

Curved Washers are available in Mild Steel, SS 304 and Zinc Plated. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of curved washer?

Washers are sized by the bolt they fit, so an M10 washer suits an M10 bolt. Choose a larger outer diameter for soft materials, thin sheet or oversized holes. ScrewBazar can match a size from a drawing or sample.

Which standards do curved washers follow?

Curved Washers are commonly made to DIN 6319. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of curved washer are available?

Curved Washers are supplied in M6 to M36. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order curved washers in bulk?

Yes. ScrewBazar supplies curved washers in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
