| mm | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | — | — | ||||||||||
| M6 | ||||||||||||
| M8 | — | |||||||||||
| M10 | — | — | ||||||||||
| M12 | — | — | — |
Selected: Stainless Steel 304 / A2-70 · choose a size from the chart
Available in Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Brass and Chrome. Standard sizes (ISO 7380-1): M5 (10-50mm), M6 (10-60mm), M8 (12-60mm), M10 (16-60mm), M12 (20-60mm). Request a quote for your exact requirement.

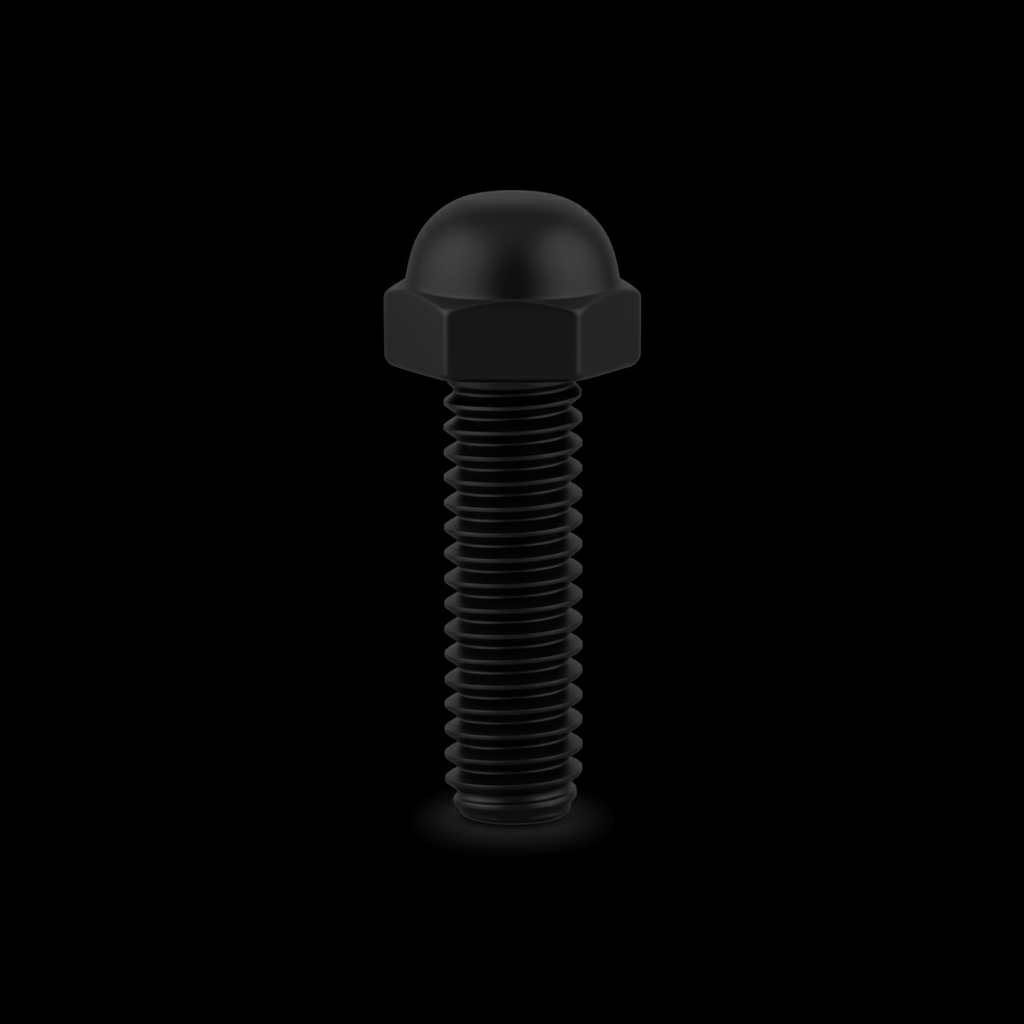

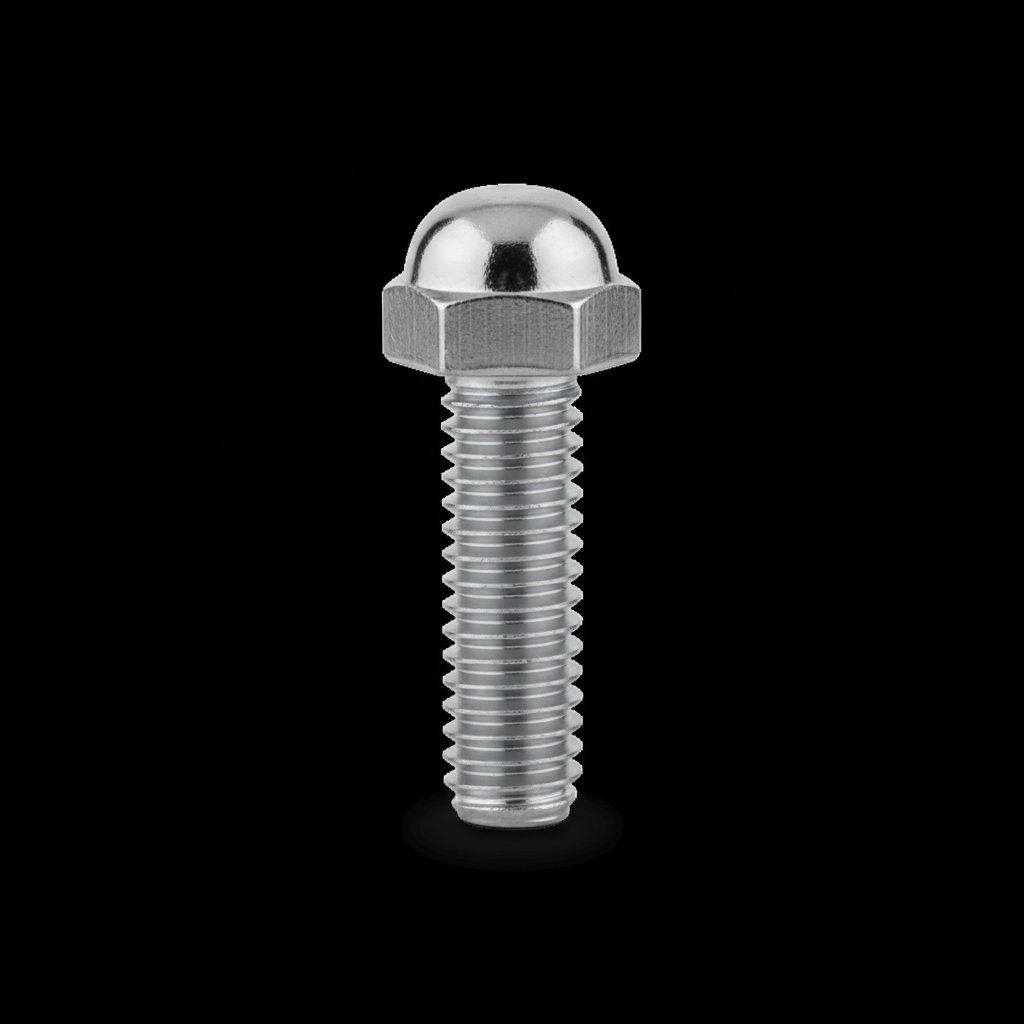

Dome Bolts feature a rounded, dome-shaped head that offers a smooth and safe finish, making them perfect for exposed or touchable surfaces. The low-profile design not only enhances appearance but also reduces the risk of catching on clothing or skin. With strong threading and reliable fastening capability, Dome Bolts are ideal for furniture, protective covers, and structural assemblies that require both safety and visual appeal.
Common uses and specifications for Dome Bolt:
Dome Bolts are available in SS 304, SS 316, Brass and Chrome. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.
Dome Bolts are commonly made to ISO 7380-1. State the standard on your enquiry so dimensions and tolerances match your drawing.
Dome Bolts are supplied in M5 to M12, lengths 10 mm to 60 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies dome bolts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
