| mm | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | โ | โ | โ | โ | โ | โ | โ | ||||||||||
| M6 | โ | โ | โ | โ | โ | ||||||||||||
| M8 | โ | โ | โ | ||||||||||||||
| M10 | โ | โ | |||||||||||||||
| M12 | โ | โ | โ | ||||||||||||||
| M16 | โ | โ | โ | โ | โ |
Selected: Stainless Steel 304 / A2-70 ยท choose a size from the chart
Available in Stainless Steel 304 / A2-70, Mild Steel and Zinc Plated. Standard sizes (DIN 6921 / ISO 4162): M5 (10-50mm), M6 (10-60mm), M8 (12-80mm), M10 (16-100mm), M12 (20-100mm), M16 (30-100mm). Request a quote for your exact requirement.

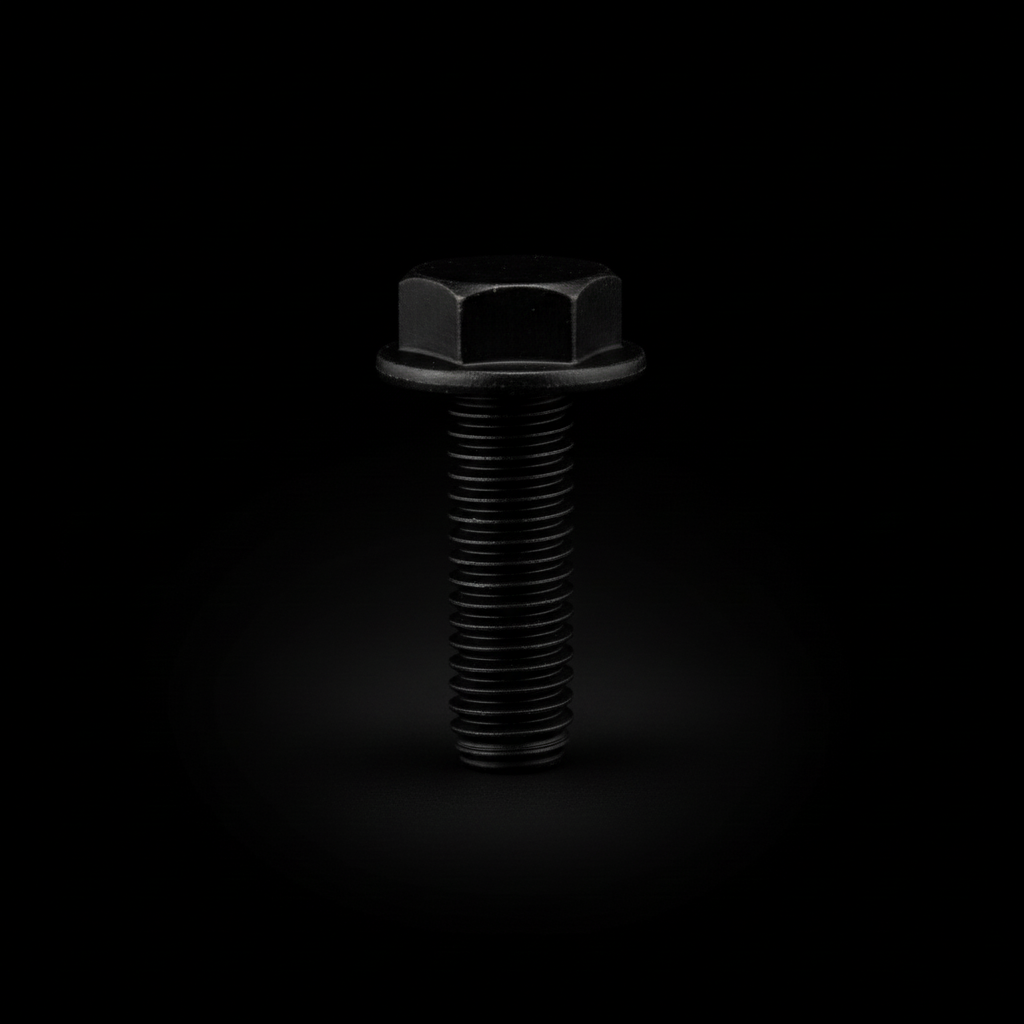

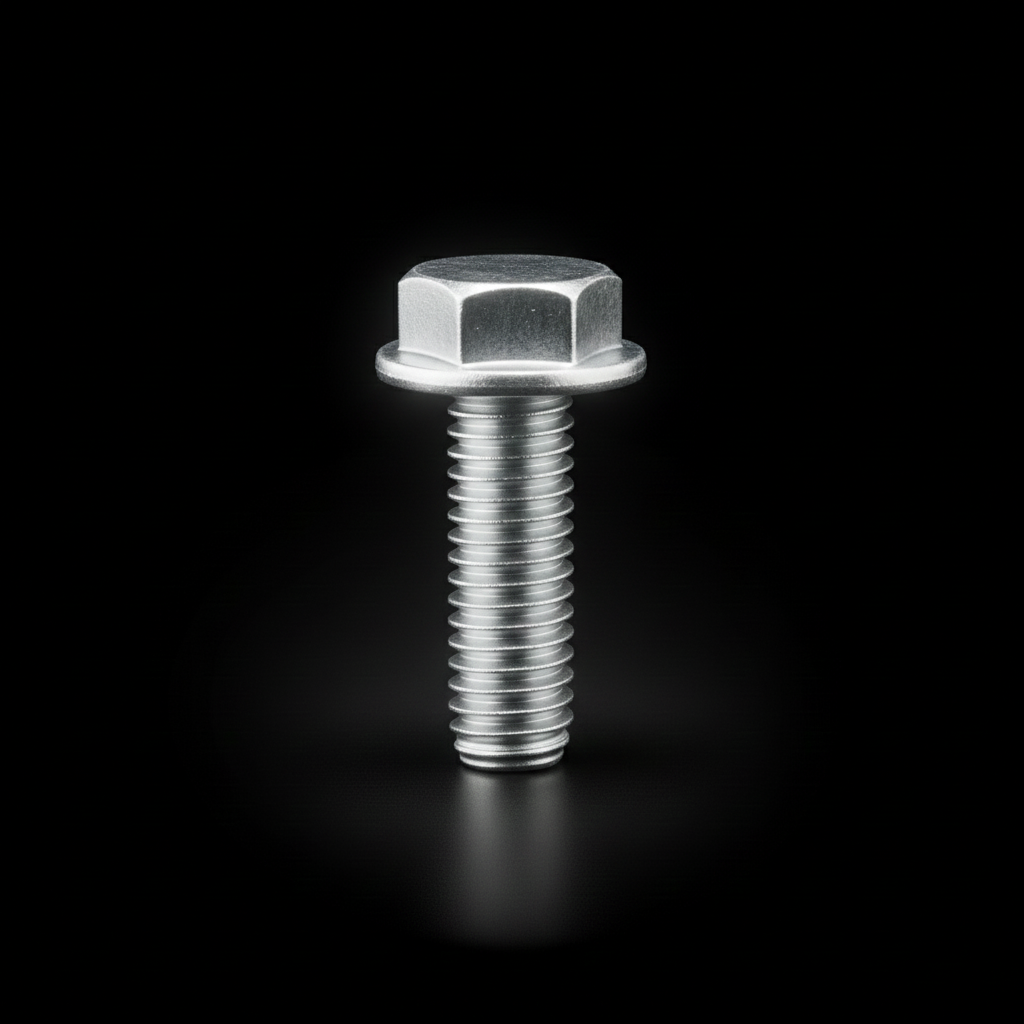

Flange Bolts feature an integrated flange beneath the head that acts as a built-in washer, distributing pressure across the surface for stronger, more stable fastening. Their robust design and high tensile strength make them ideal for industrial, automotive, and construction applications. Flange Bolts ensure secure, vibration-resistant connections while simplifying installation and delivering a clean, professional finish.
Common uses and specifications for Flange:
Flanges are available in SS 304, Mild Steel and Zinc Plated. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.
Flanges are commonly made to DIN 6921 and ISO 4162. State the standard on your enquiry so dimensions and tolerances match your drawing.
Flanges are supplied in M5 to M16, lengths 10 mm to 100 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies flanges in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
