| mm | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M6 | — | — | — | — | — | — | ||||||||||||||
| M8 | — | — | — | |||||||||||||||||
| M10 | — | — | ||||||||||||||||||
| M12 | — | — | — | |||||||||||||||||
| M16 | — | — | — | — | — | |||||||||||||||
| M20 | — | — | — | — | — | — | — | |||||||||||||
| M24 | — | — | — | — | — | — | — | — | — | |||||||||||
| M30 | — | — | — | — | — | — | — | — | — | — |
Selected: Stainless Steel 304 / A2-70 · choose a size from the chart
Available in Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Galvanized Steel. Standard sizes (DIN 931 / ISO 4014): M6 (30-120mm), M8 (35-160mm), M10 (40-200mm), M12 (45-200mm), M16 (55-200mm), M20 (65-200mm), M24 (80-200mm), M30 (90-200mm). Request a quote for your exact requirement.

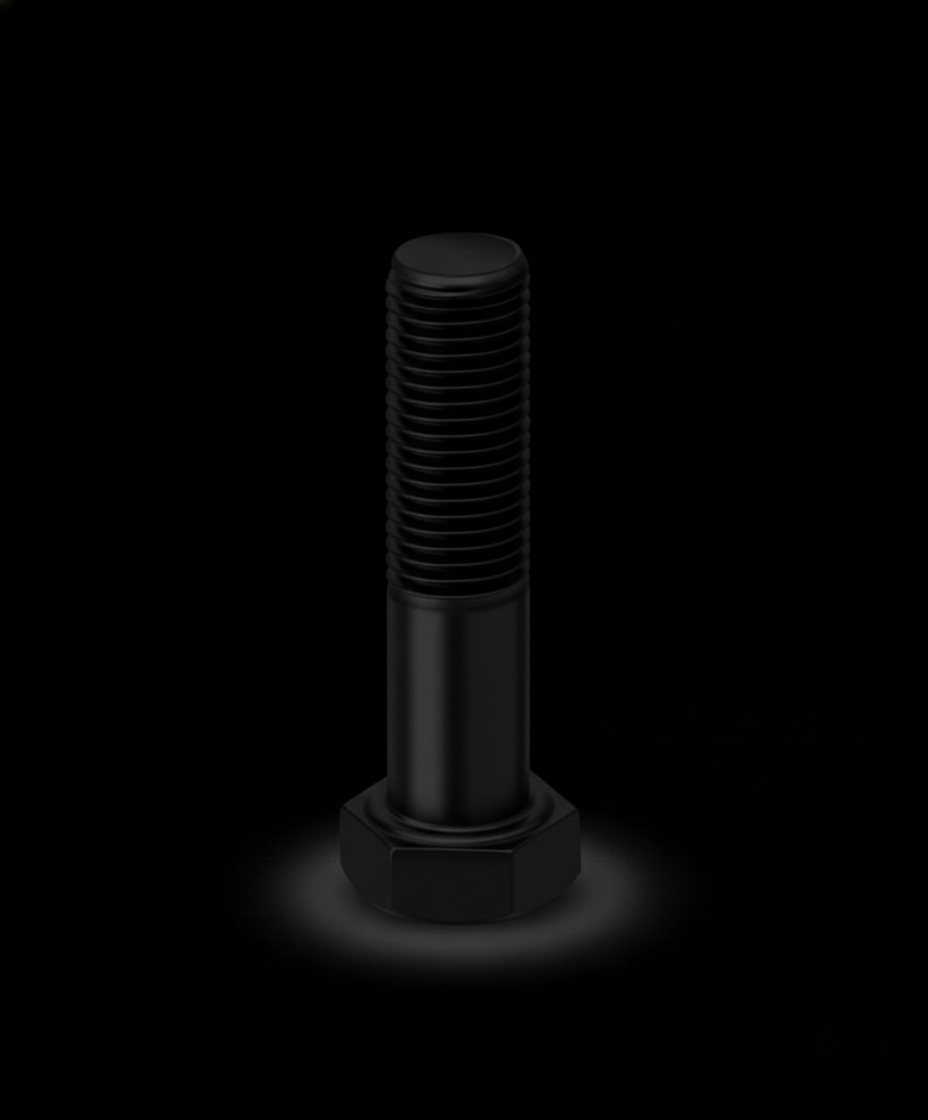

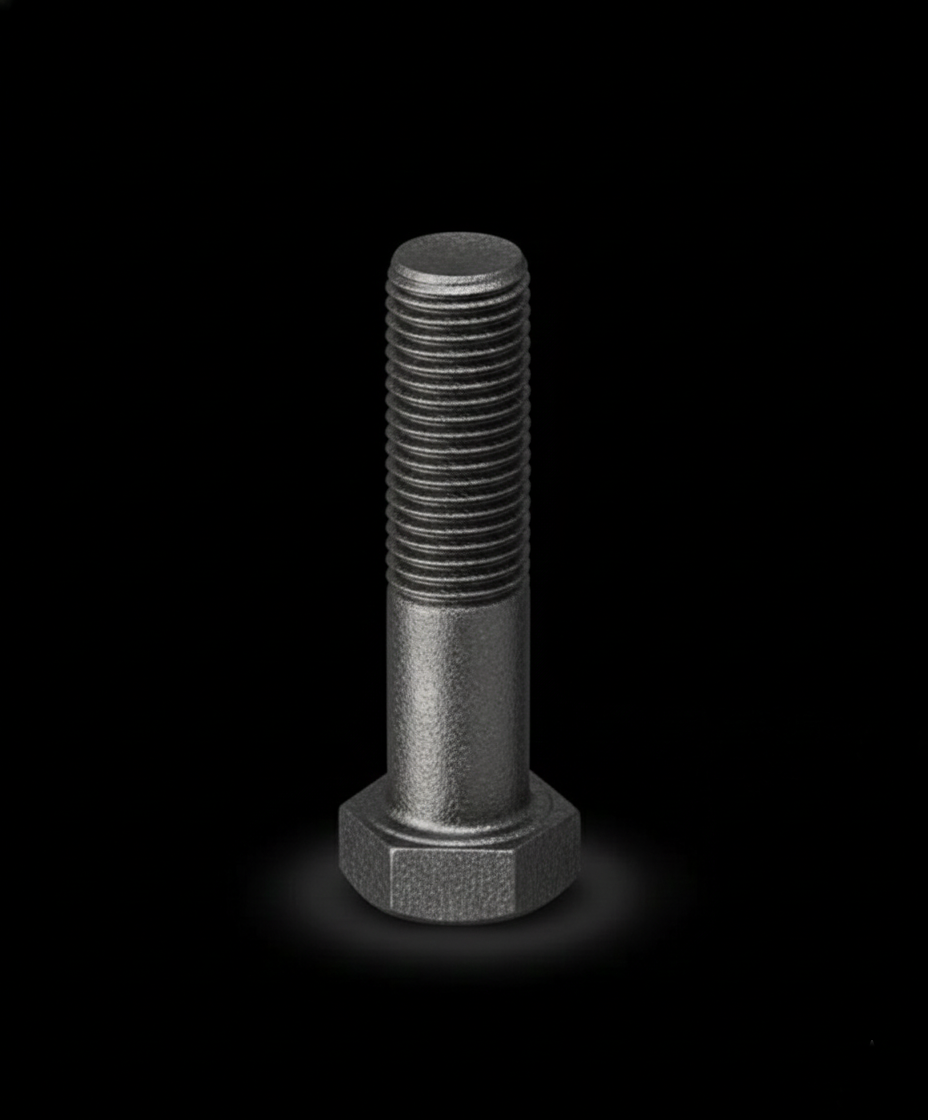

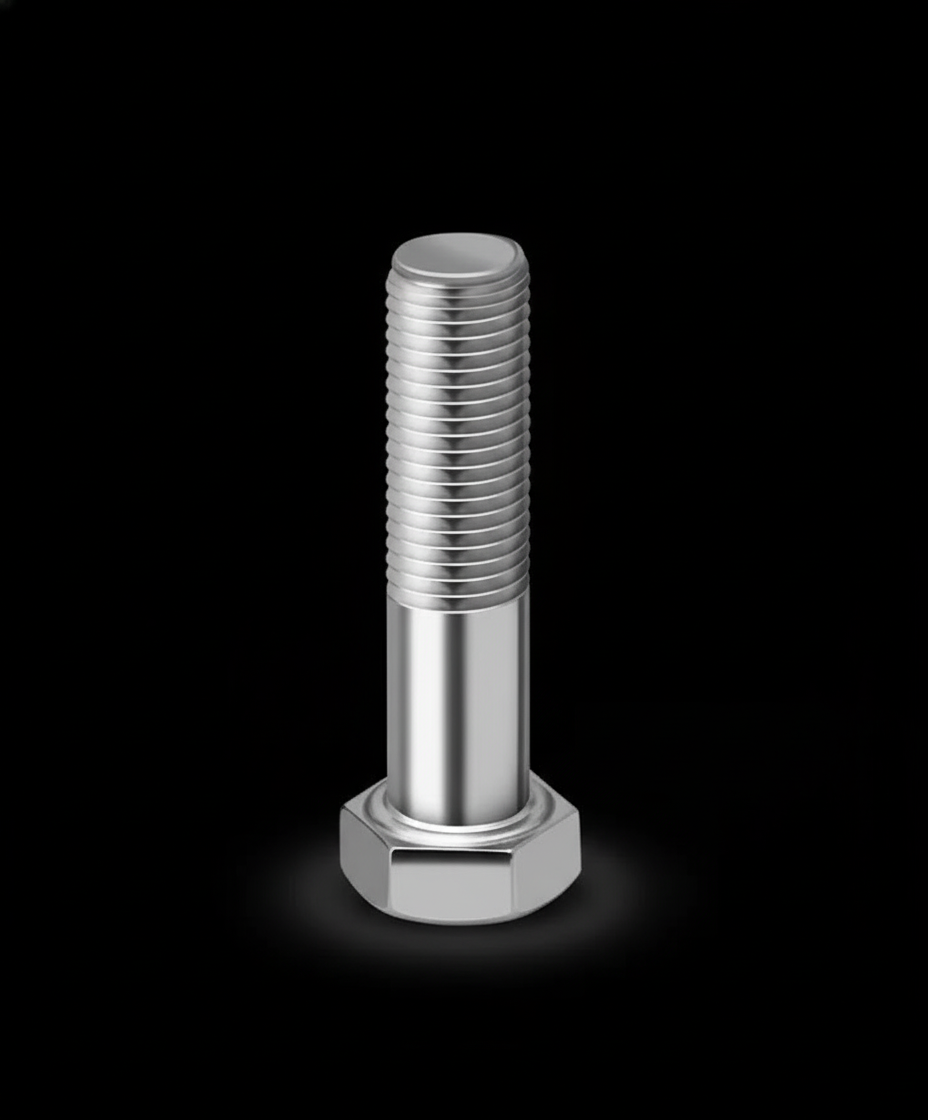

Hex Bolt Half Threaded bolts feature a partially threaded design, combining a strong unthreaded shank with a threaded end for secure fastening. The smooth shank enhances shear strength, alignment, and load distribution, making them ideal for structural and mechanical assemblies. With a six-sided head for easy tightening and robust performance, these bolts ensure dependable, long-lasting connections in demanding applications.
Common uses and specifications for Hex Bolt Half Threaded:
Hex Bolt Half Threadeds are available in SS 304, SS 316, Mild Steel and Galvanized Steel. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.
Hex Bolt Half Threadeds are commonly made to DIN 931 and ISO 4014. State the standard on your enquiry so dimensions and tolerances match your drawing.
Hex Bolt Half Threadeds are supplied in M6 to M30, lengths 30 mm to 200 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies hex bolt half threadeds in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
