| mm | 4.5 | 6.5 | 9.5 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | 45 | 50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST2.2 | โ | โ | โ | โ | โ | โ | โ | |||||
| ST2.9 | โ | โ | โ | โ | ||||||||
| ST3.5 | โ | โ | โ | โ | ||||||||
| ST3.9 | โ | โ | โ | โ | ||||||||
| ST4.2 | โ | โ | โ | |||||||||
| ST4.8 | โ | โ | ||||||||||
| ST5.5 | โ | โ | โ | |||||||||
| ST6.3 | โ | โ | โ |
Selected: Stainless Steel 202 ยท choose a size from the chart

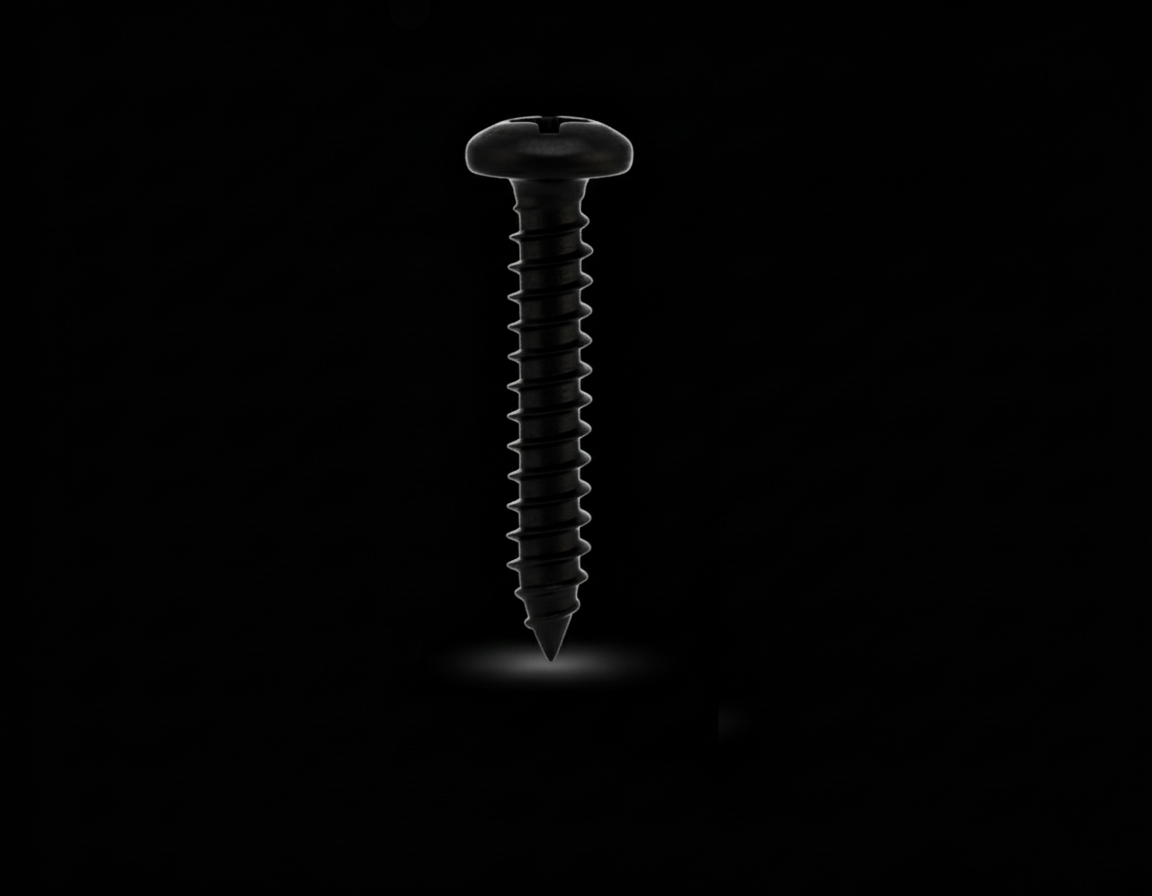

Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Mild Steel and Black Oxide. Standard sizes (DIN 7981 / ISO 7049): ST2.2 (4.5-16mm), ST2.9 (4.5-25mm), ST3.5 (6.5-32mm), ST3.9 (9.5-38mm), ST4.2 (9.5-45mm), ST4.8 (9.5-50mm), ST5.5 (13-50mm), ST6.3 (13-50mm). Request a quote for your exact requirement.

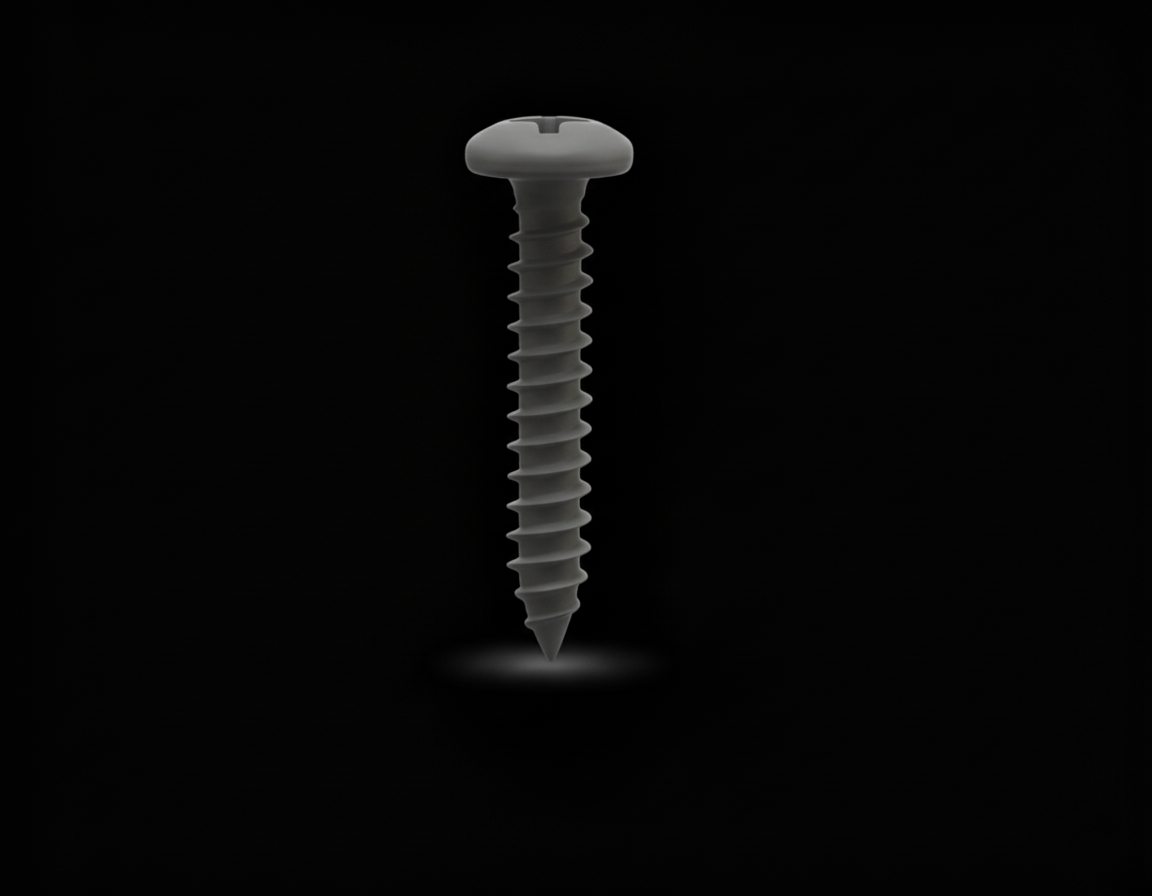

Pan Head Phillips Self-Tapping Screws feature a rounded pan head with Phillips cross-recess drive and self-tapping threads. These screws create their own threads as they're driven, eliminating pre-drilling needs. Perfect for sheet metal, HVAC, and electrical applications. Also commonly known as Self Tapping Screw or Sheet Metal Screw in the trade.
Pan head Phillips self-tapping screws are screws that form their own thread as they are driven into a pre-drilled hole in sheet metal or plastic. They are also called sheet metal screws, tapping screws or PPST screws. The standards are ISO 7049 and DIN 7981. The thread form is the ST tapping thread of ISO 1478, which is coarser and sharper than a machine thread. Sizes are given as ST2.2 to ST6.3, which match US gauges #2 to #14. The pan head is low and slightly domed, giving a wide bearing face on thin sheet. Carbon steel tapping screws are case hardened so the thread can cut steel. SS 304 tapping screws resist corrosion but are softer, and are best used in aluminium, plastic and thin stainless sheet.
ST is the ISO 1478 tapping thread, and the number is the outside thread diameter in mm. ST2.9 = #4, ST3.5 = #6, ST3.9 = #7, ST4.2 = #8, ST4.8 = #10, ST5.5 = #12 and ST6.3 = #14 in US gauge sizes.
For steel sheet about 1 mm thick, typical pilot holes are 2.8 mm for ST3.5, 3.3 mm for ST4.2 and 3.9 mm for ST4.8. Use a slightly larger hole in thicker or harder sheet and a slightly smaller hole in aluminium and soft plastic.
A self-tapping screw needs a pre-drilled pilot hole and then forms its own thread. A self-drilling screw (Tek screw) has a drill point that drills the hole and taps it in one step. Self-drilling screws save time on steel sections up to a few millimetres thick.
SS 304 tapping screws are not hardened and may strip or gall when driven into mild steel. They work well in aluminium, plastic and thin sheet. For steel sheet, use case-hardened carbon steel screws or SS 410, which can be hardened.
Type AB screws have a sharp gimlet point, which helps start the screw in thin sheet. Type B screws have the same thread spacing but a blunt point, and are used in thicker sheet and pre-drilled holes. Type AB replaced the older, coarser Type A for most uses. Both use the ISO 1478 ST thread form; Type AB is the common choice for sheet metal, HVAC and enclosures.
