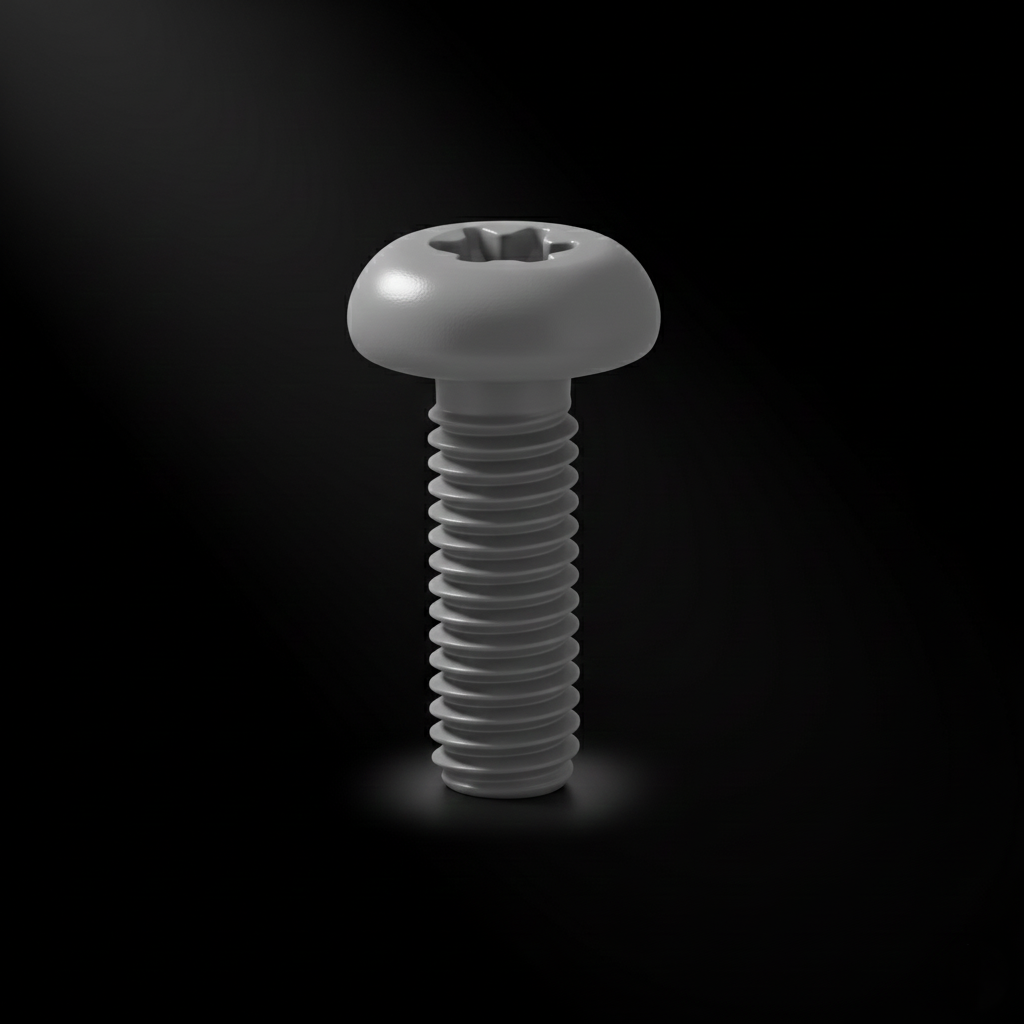

Pan Torx Machine Screw

Product

Stainless Steel 202

ISO 14583
mm345681012162025303540455060
M2———————
M2.5——————
M3——————
M4—————
M5—————
M6————
M8—————
M10——————
In stock— Not manufactured

Selected: Stainless Steel 202 · choose a size from the chart

Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel, Brass and Black Oxide. Standard sizes (ISO 14583): M2 (3-20mm), M2.5 (3-25mm), M3 (4-30mm), M4 (5-40mm), M5 (6-45mm), M6 (8-60mm), M8 (10-60mm), M10 (12-60mm). Request a quote for your exact requirement.

A Pan Phillips Machine Screw features a rounded, slightly raised pan head with a Phillips cross-drive, providing stable tool engagement and neat appearance. Designed for machine-threaded applications, it offers reliable fastening for metal or plastic components and is widely used in electronics, appliances, and general hardware assembly.

About Pan Torx Machine Screw

Common uses and specifications for Pan Torx Machine Screw:

Applications

  • •Used in electronics, appliances, and general industrial assemblies
  • •Ideal for fastening metal, plastic, and light mechanical components
  • •Suitable for panels, brackets, enclosures, and device housings
  • •Common in automotive interiors, electrical equipment, and consumer products
  • •Easy to install and remove using standard Phillips screwdrivers

Specifications

Materials
SS 202, SS 304, SS 316, Mild Steel, Brass, Black Oxide
Size range
M2 to M10, lengths 3 mm to 60 mm
Standards
ISO 14583

Industries served

  • Automotive
  • Industrial machinery
  • Electrical
  • Appliances

Related categories

Pan Torx Machine Screw: frequently asked questions

What materials are pan torx machine screws available in?

Pan Torx Machine Screws are available in SS 202, SS 304, SS 316, Mild Steel, Brass and Black Oxide. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of pan torx machine screw?

Choose the thread size from the hole or nut it must fit, then pick a length that gives full thread engagement of at least one diameter in steel and 1.5 to 2 diameters in aluminium or plastic. ScrewBazar can match a size from a drawing or sample.

Which standards do pan torx machine screws follow?

Pan Torx Machine Screws are commonly made to ISO 14583. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of pan torx machine screw are available?

Pan Torx Machine Screws are supplied in M2 to M10, lengths 3 mm to 60 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order pan torx machine screws in bulk?

Yes. ScrewBazar supplies pan torx machine screws in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
