| mm | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | — | — | — | ||||||||
| M4 | — | — | — | ||||||||
| M5 | — | — | |||||||||
| M6 | — | — | — | ||||||||
| M8 | — | — | — | — |
Selected: Stainless Steel 202 · choose a size from the chart
Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Black Oxide. Standard sizes (ISO 14581 (pin-in Torx drive)): M3 (5-25mm), M4 (6-30mm), M5 (8-40mm), M6 (10-40mm), M8 (12-40mm). Request a quote for your exact requirement.

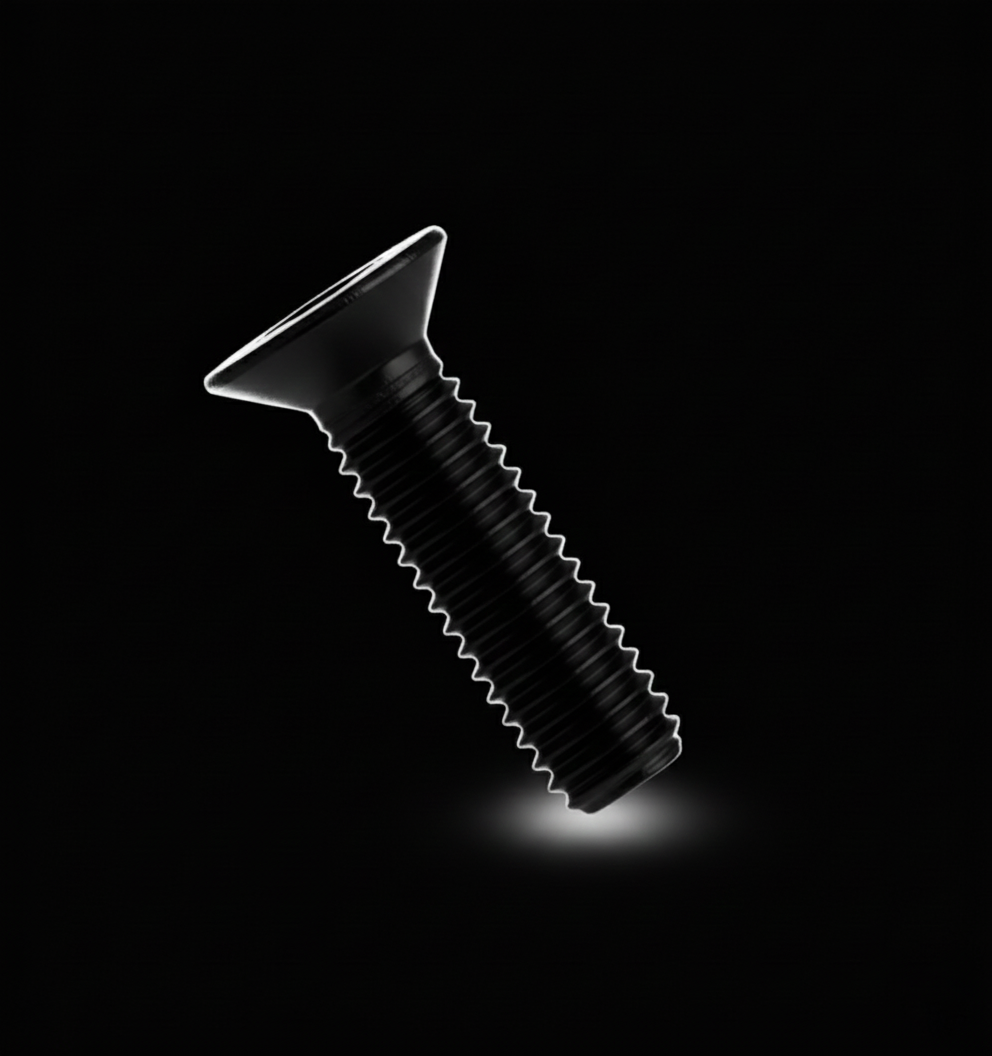

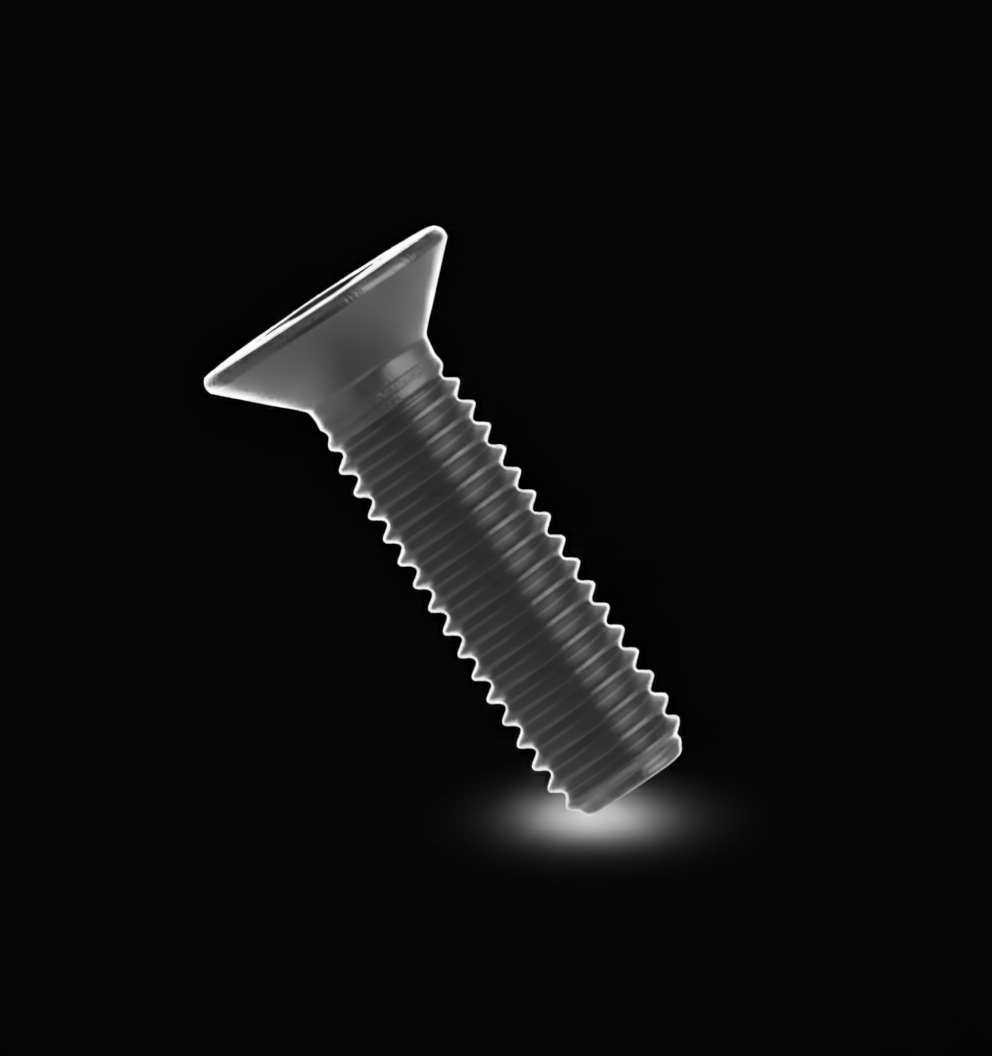

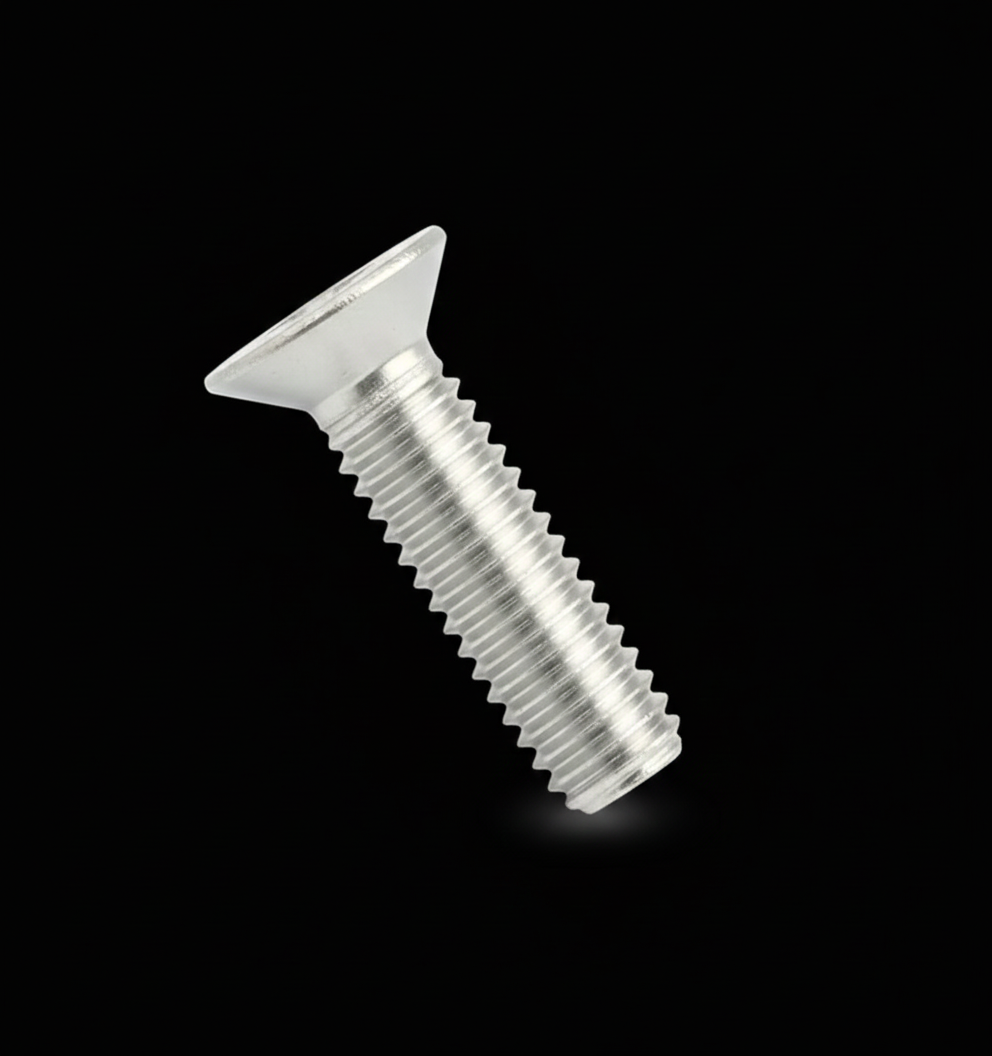

A Security CSK Torx Machine Screw features a countersunk flat head and a tamper-resistant Torx drive—typically incorporating a central pin—to prevent unauthorized removal. Designed to sit flush with the surface, it offers clean aesthetics, strong torque transfer, and enhanced protection, making it ideal for secure enclosures, machinery, and public-access devices. Also commonly known as Tamper Proof Screw or Pin-in-Torx Screw in the trade.
Security CSK Torx Machine Screws (Tamper Proof Screw, Pin-in-Torx Screw, Anti-Theft Screw) are threaded fasteners used in industrial and construction applications. They are commonly made to ISO 14581. ScrewBazar supplies security CSK torx machine screws in SS 202, SS 304, SS 316, Mild Steel and Black Oxide. Typical uses include machinery and equipment assembly, electrical panels and enclosures and sheet metal fabrication.
Security CSK Torx Machine Screws are available in SS 202, SS 304, SS 316, Mild Steel and Black Oxide. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Security CSK Torx Machine Screws are used in machinery and equipment assembly, electrical panels and enclosures, sheet metal fabrication, appliance manufacturing and maintenance and repair. They are supplied to the automotive, industrial machinery, electrical and appliances sectors.
Choose the thread size from the hole or nut it must fit, then pick a length that gives full thread engagement of at least one diameter in steel and 1.5 to 2 diameters in aluminium or plastic. ScrewBazar can match a size from a drawing or sample.
Security CSK Torx Machine Screws are supplied in M3 to M8, lengths 5 mm to 40 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies security CSK torx machine screws in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
Security CSK Torx Machine Screws are commonly made to ISO 14581. State the standard on your enquiry so dimensions and tolerances match your drawing.
