| mm | 4.5 | 6.5 | 9.5 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | 45 | 50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST2.2 | โ | โ | โ | โ | โ | โ | โ | |||||
| ST2.9 | โ | โ | โ | โ | ||||||||
| ST3.5 | โ | โ | โ | โ | ||||||||
| ST3.9 | โ | โ | โ | โ | ||||||||
| ST4.2 | โ | โ | โ | |||||||||
| ST4.8 | โ | โ | ||||||||||
| ST5.5 | โ | โ | โ | |||||||||
| ST6.3 | โ | โ | โ |
Selected: Stainless Steel 202 ยท choose a size from the chart
Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Black Oxide. Standard sizes (ISO 14585): ST2.2 (4.5-16mm), ST2.9 (4.5-25mm), ST3.5 (6.5-32mm), ST3.9 (9.5-38mm), ST4.2 (9.5-45mm), ST4.8 (9.5-50mm), ST5.5 (13-50mm), ST6.3 (13-50mm). Request a quote for your exact requirement.

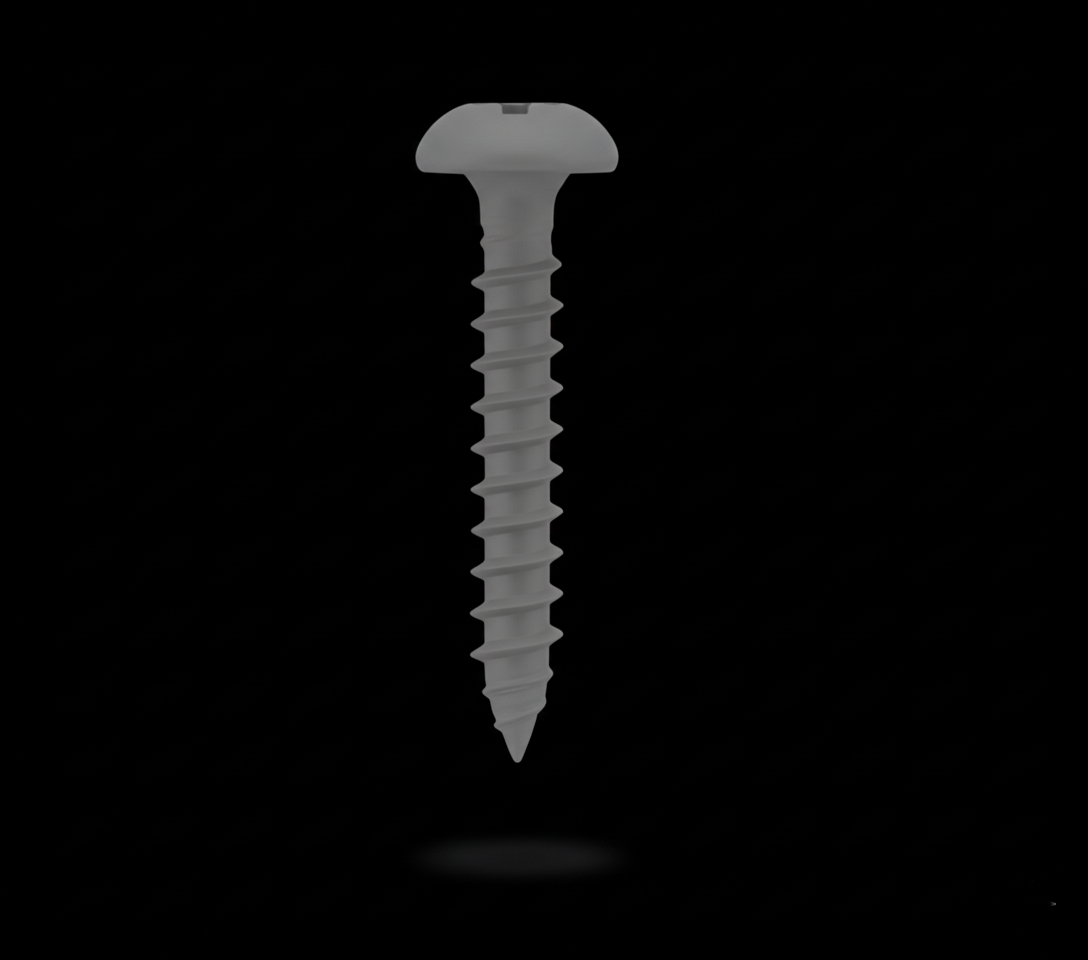

Pan Head Torx Self-Tapping Screws create their own threads as they're driven into materials, eliminating the need for pre-tapping. The Torx drive provides superior torque transfer and reduced cam-out.
Common uses and specifications for Pan Torx STS:
Pan Torx STS are available in SS 202, SS 304, SS 316, Mild Steel and Black Oxide. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the thread size from the hole or nut it must fit, then pick a length that gives full thread engagement of at least one diameter in steel and 1.5 to 2 diameters in aluminium or plastic. ScrewBazar can match a size from a drawing or sample.
Pan Torx STS are commonly made to ISO 14585. State the standard on your enquiry so dimensions and tolerances match your drawing.
Pan Torx STS are supplied in ST2.2 to ST6.3, lengths 4.5 mm to 50 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies pan torx STS in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
