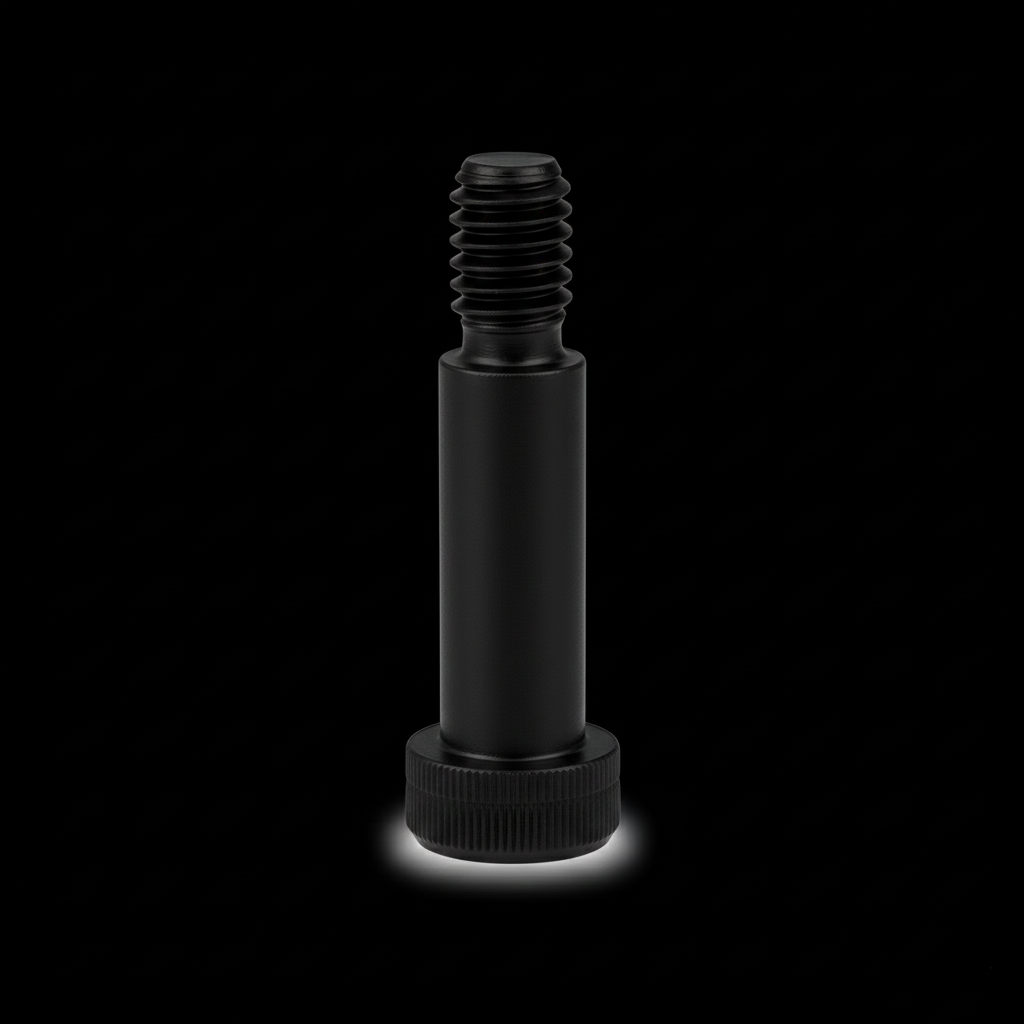

Shoulder Bolt

Product

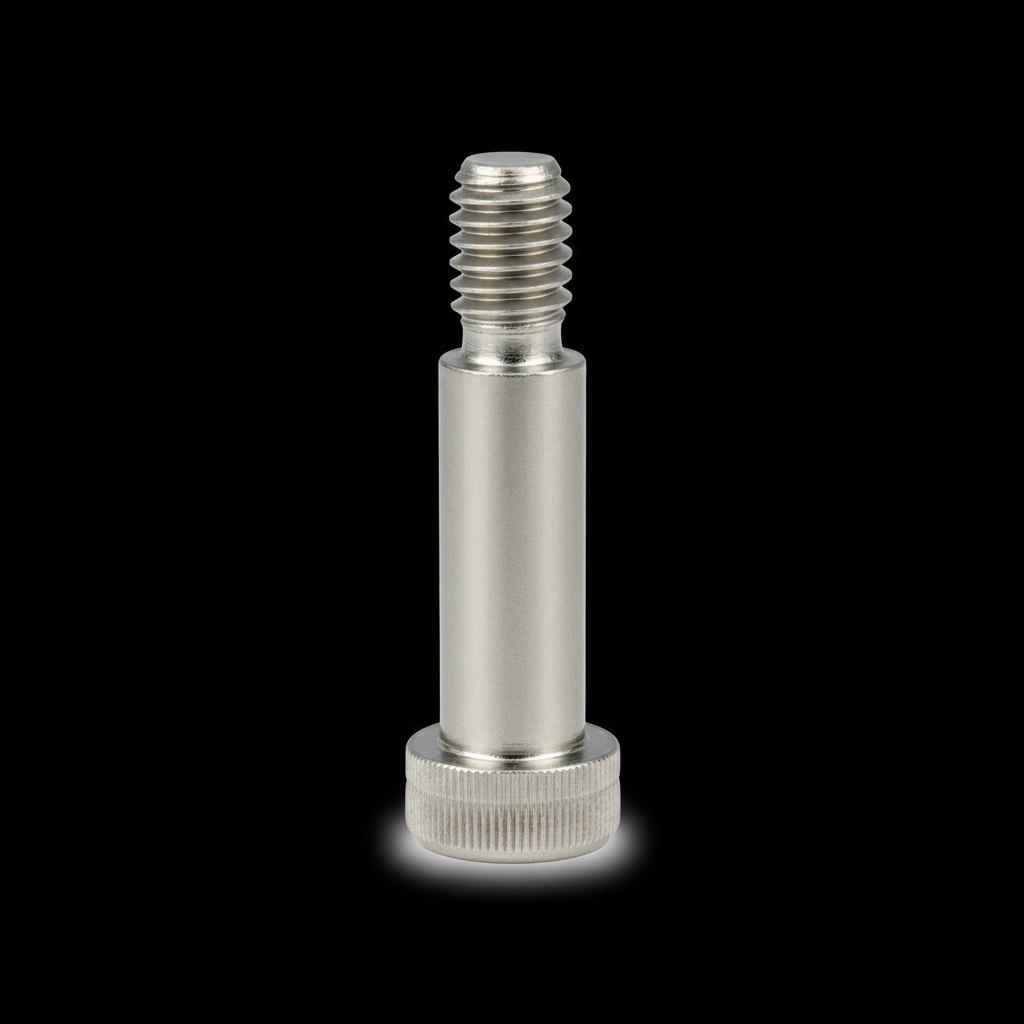

Stainless Steel 304 / A2-70

ISO 7379
mm1012162025303540455060708090100
ร˜6โ€”โ€”โ€”โ€”โ€”โ€”โ€”
ร˜8โ€”โ€”โ€”โ€”โ€”
ร˜10โ€”โ€”โ€”โ€”โ€”
ร˜12โ€”โ€”โ€”โ€”
ร˜16โ€”โ€”โ€”
ร˜20โ€”โ€”โ€”โ€”
In stockโ€” Not manufactured

Selected: Stainless Steel 304 / A2-70 ยท choose a size from the chart

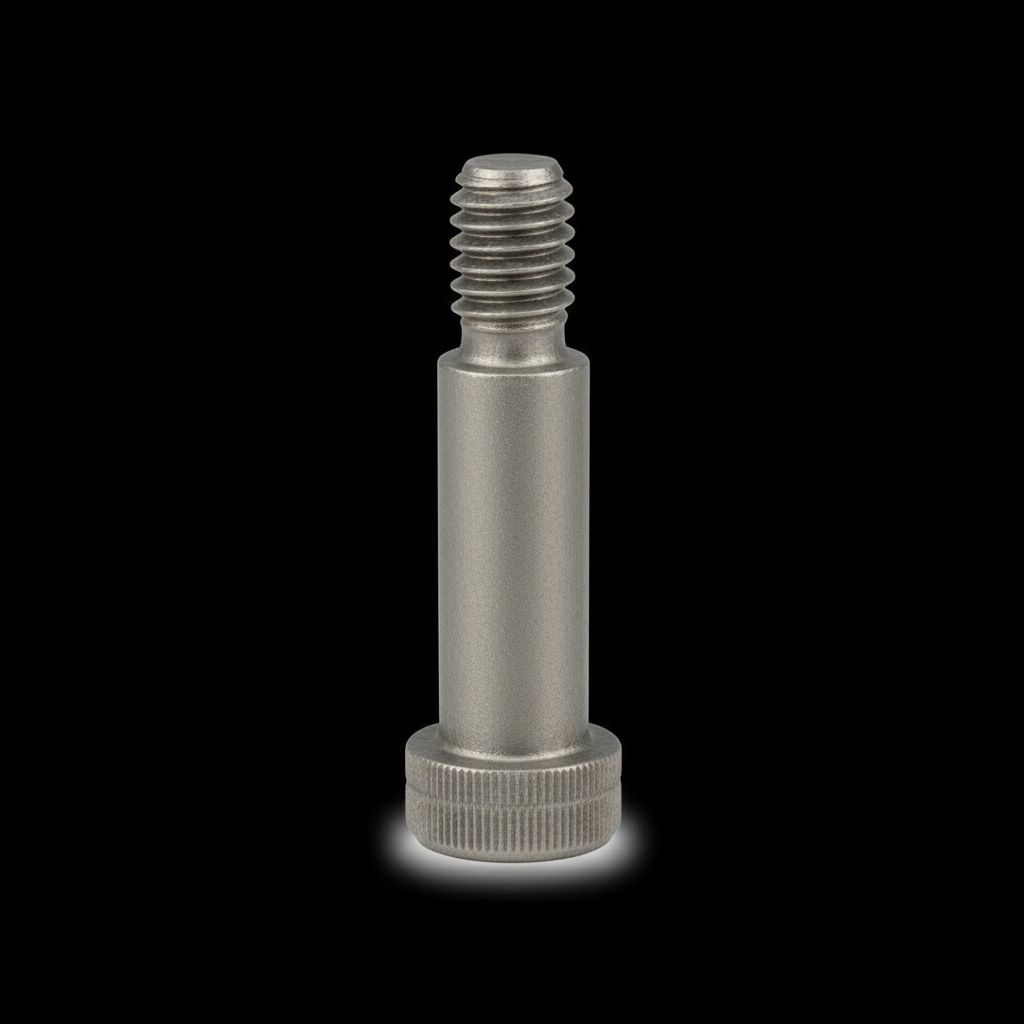

Available in Stainless Steel 304 / A2-70, Alloy Steel and Hardened Steel. Standard sizes (ISO 7379): ร˜6 (10-40mm), ร˜8 (10-50mm), ร˜10 (12-60mm), ร˜12 (16-80mm), ร˜16 (20-100mm), ร˜20 (25-100mm). Request a quote for your exact requirement.

Shoulder Bolts feature a precision-machined, unthreaded shoulder between the head and threaded section, creating a stable surface for guiding, pivoting, or mounting moving components. Their accurate dimensions and smooth finish make them essential for mechanical assemblies that demand controlled motion or exact spacing. Offering strength, reliability, and precision, Shoulder Bolts are widely used in industrial machinery, equipment design, and high-performance mechanical applications.

About Shoulder Bolt

Common uses and specifications for Shoulder Bolt:

Applications

  • โ€ขUsed where precise alignment, smooth movement, or pivoting action is required
  • โ€ขIdeal for machinery, automation equipment, linkages, pulleys, joints, and tooling setups
  • โ€ขCommonly chosen for die fixtures, sliding mechanisms, rotating parts, and precision assemblies
  • โ€ขStructural steel connections
  • โ€ขMachinery and equipment mounting

Specifications

Materials
SS 304, Alloy Steel, Hardened Steel
Size range
ร˜6 to ร˜20, lengths 10 mm to 100 mm
Standards
ISO 7379

Industries served

  • Construction
  • Automotive
  • Industrial machinery
  • Manufacturing

Related categories

Shoulder Bolt: frequently asked questions

What materials are shoulder bolts available in?

Shoulder Bolts are available in SS 304, Alloy Steel and Hardened Steel. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of shoulder bolt?

Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.

Which standards do shoulder bolts follow?

Shoulder Bolts are commonly made to ISO 7379. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of shoulder bolt are available?

Shoulder Bolts are supplied in ร˜6 to ร˜20, lengths 10 mm to 100 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order shoulder bolts in bulk?

Yes. ScrewBazar supplies shoulder bolts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
