T-Bolt

Product

Stainless Steel 304 / A2-70

DIN 186
mm20253035404550556065708090100110120130140150160180200
M6โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”
M8โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”
M10โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”
M12โ€”โ€”โ€”โ€”โ€”โ€”
M16โ€”โ€”โ€”โ€”
M20โ€”โ€”โ€”โ€”โ€”โ€”
In stockโ€” Not manufactured

Selected: Stainless Steel 304 / A2-70 ยท choose a size from the chart

Available in Stainless Steel 304 / A2-70, Mild Steel and Zinc Plated. Standard sizes (DIN 186): M6 (20-60mm), M8 (25-100mm), M10 (30-120mm), M12 (35-150mm), M16 (40-200mm), M20 (50-200mm). Request a quote for your exact requirement.

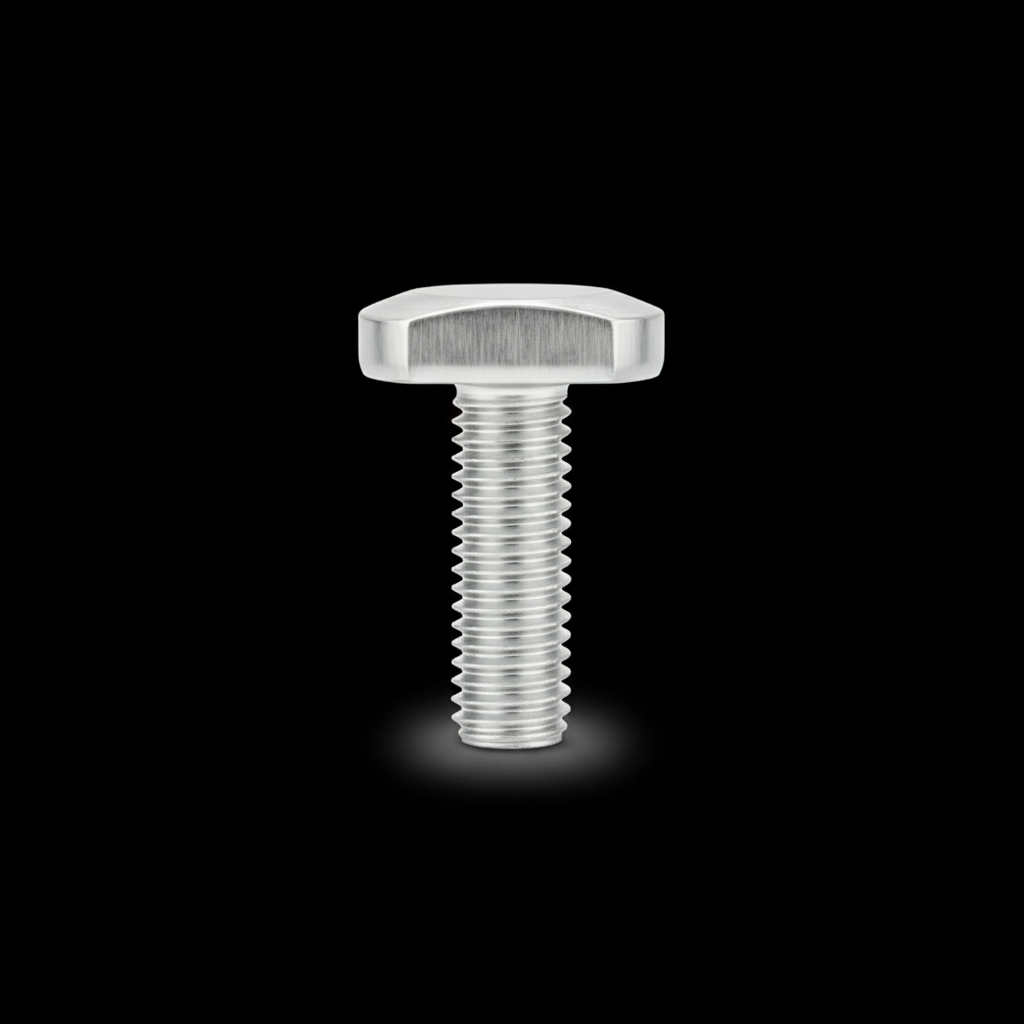

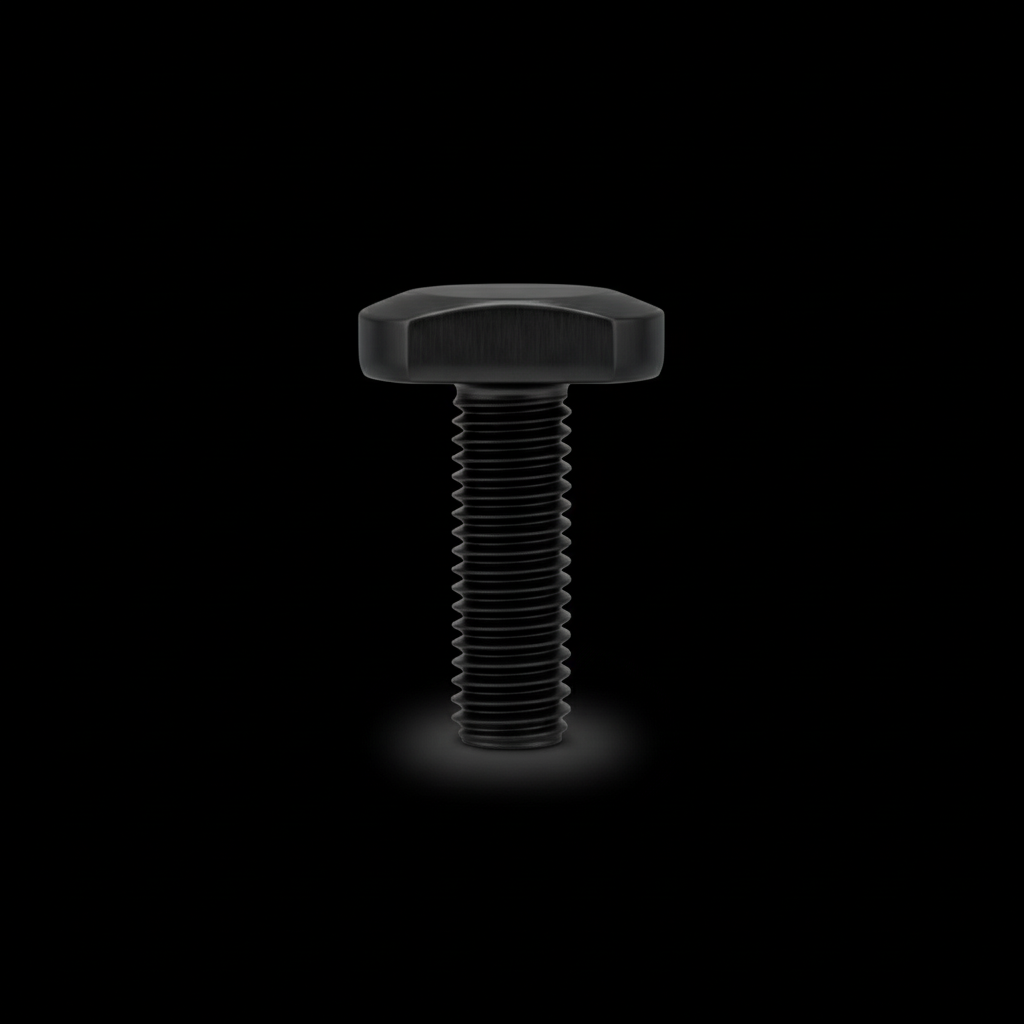

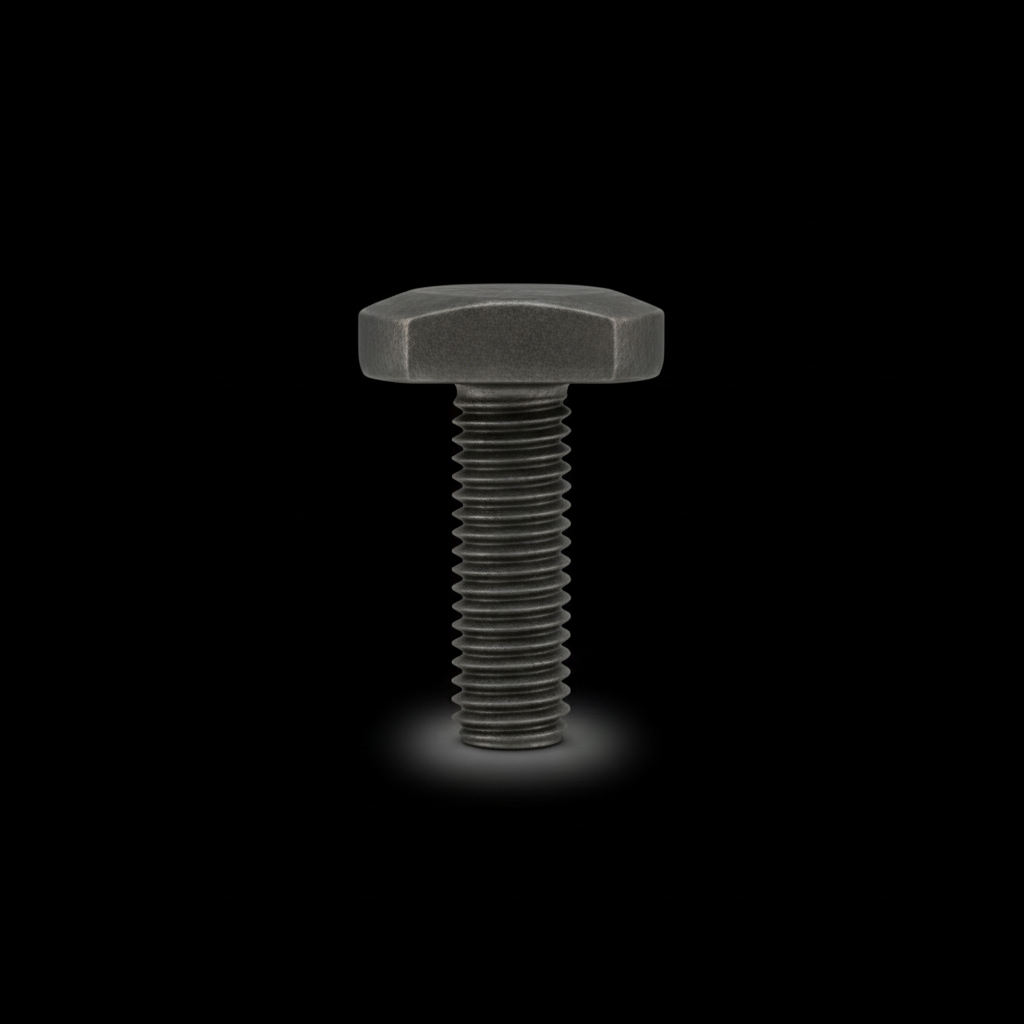

T-Bolts feature a T-shaped head designed to slide into T-slots or grooves in aluminum extrusions and machine tables. Perfect for modular framing systems, workbenches, and adjustable mounting applications.

About T-Bolt

Common uses and specifications for T-Bolt:

Applications

  • โ€ขUsed for fastening components in slots, tracks, or channels where adjustable positioning is needed
  • โ€ขMachine tables, fixture assemblies, automotive jigs, modular setups
  • โ€ขStructural steel connections
  • โ€ขMachinery and equipment mounting
  • โ€ขConstruction and fabrication

Specifications

Materials
SS 304, Mild Steel, Zinc Plated
Size range
M6 to M20, lengths 20 mm to 200 mm
Standards
DIN 186

Industries served

  • Construction
  • Automotive
  • Industrial machinery
  • Manufacturing

Related categories

T-Bolt: frequently asked questions

What materials are t-bolts available in?

T-Bolts are available in SS 304, Mild Steel and Zinc Plated. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of t-bolt?

Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.

Which standards do t-bolts follow?

T-Bolts are commonly made to DIN 186. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of t-bolt are available?

T-Bolts are supplied in M6 to M20, lengths 20 mm to 200 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order t-bolts in bulk?

Yes. ScrewBazar supplies t-bolts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
