| mm | 50 | 60 | 70 | 80 | 100 | 120 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|
| M6 | โ | โ | โ | โ | โ | |||||
| M8 | โ | โ | โ | โ | ||||||
| M10 | โ | โ | โ | โ | ||||||
| M12 | โ | โ | โ | โ | ||||||
| M16 | โ | โ | โ | โ | ||||||
| M20 | โ | โ | โ | โ | โ | โ |
Selected: Galvanized Steel ยท choose a size from the chart
Available in Galvanized Steel, Stainless Steel 304 and Stainless Steel 316. Standard sizes (Metric thread (ISO 261)): M6 (50-100mm), M8 (60-150mm), M10 (70-200mm), M12 (80-250mm), M16 (100-300mm), M20 (150-300mm). Request a quote for your exact requirement.

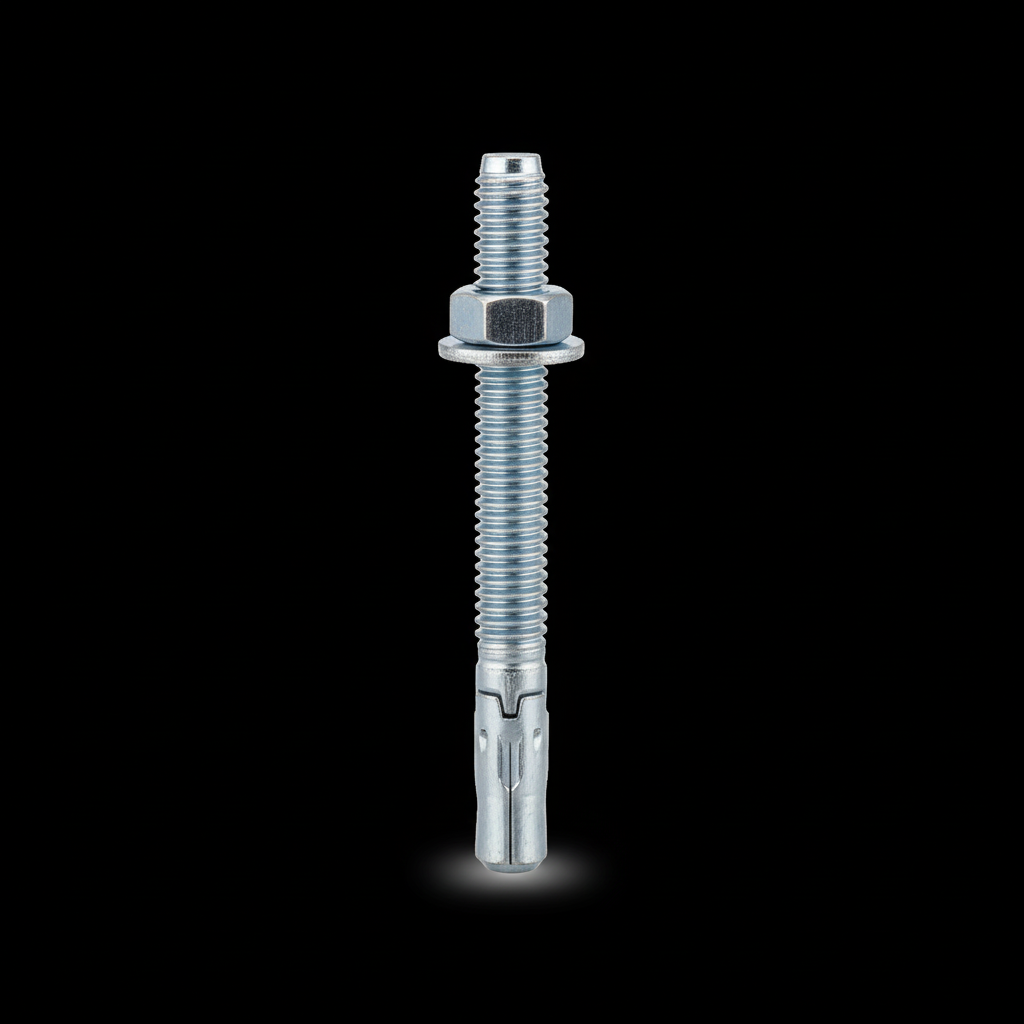

Wedge Anchors are mechanical expansion fasteners designed for solid concrete, featuring a tapered end and expansion clip that securely locks into place when tightened. Offering exceptional holding strength, they ensure firm anchoring for structural and heavy-duty applications. With reliable load capacity, corrosion-resistant options, and quick installation, Wedge Anchors provide long-lasting stability and confidence in demanding construction and industrial environments. Also commonly known as Expansion Bolt or Concrete Wedge Anchor in the trade.
Wedge Anchors (Expansion Bolt, Concrete Wedge Anchor, Stud Anchor, Through Bolt) are anchoring fasteners used in industrial and construction applications. ScrewBazar supplies wedge anchors in Galvanized Steel, SS 304 and SS 316. Typical uses include fixing machinery to concrete floors, structural steel base plates and railings, brackets and supports.
Wedge Anchors are available in Galvanized Steel, SS 304 and SS 316. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Wedge Anchors are used in fixing machinery to concrete floors, structural steel base plates, railings, brackets and supports, cable trays and pipe supports and building services installation. They are supplied to the construction, civil engineering, building services and industrial plants sectors.
Choose the anchor diameter from the fixture hole and load, and the length from the fixture thickness plus the minimum embedment depth in the base material. Drill the hole to the size given for that anchor. ScrewBazar can match a size from a drawing or sample.
Wedge Anchors are supplied in M6 to M20, lengths 50 mm to 300 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies wedge anchors in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
