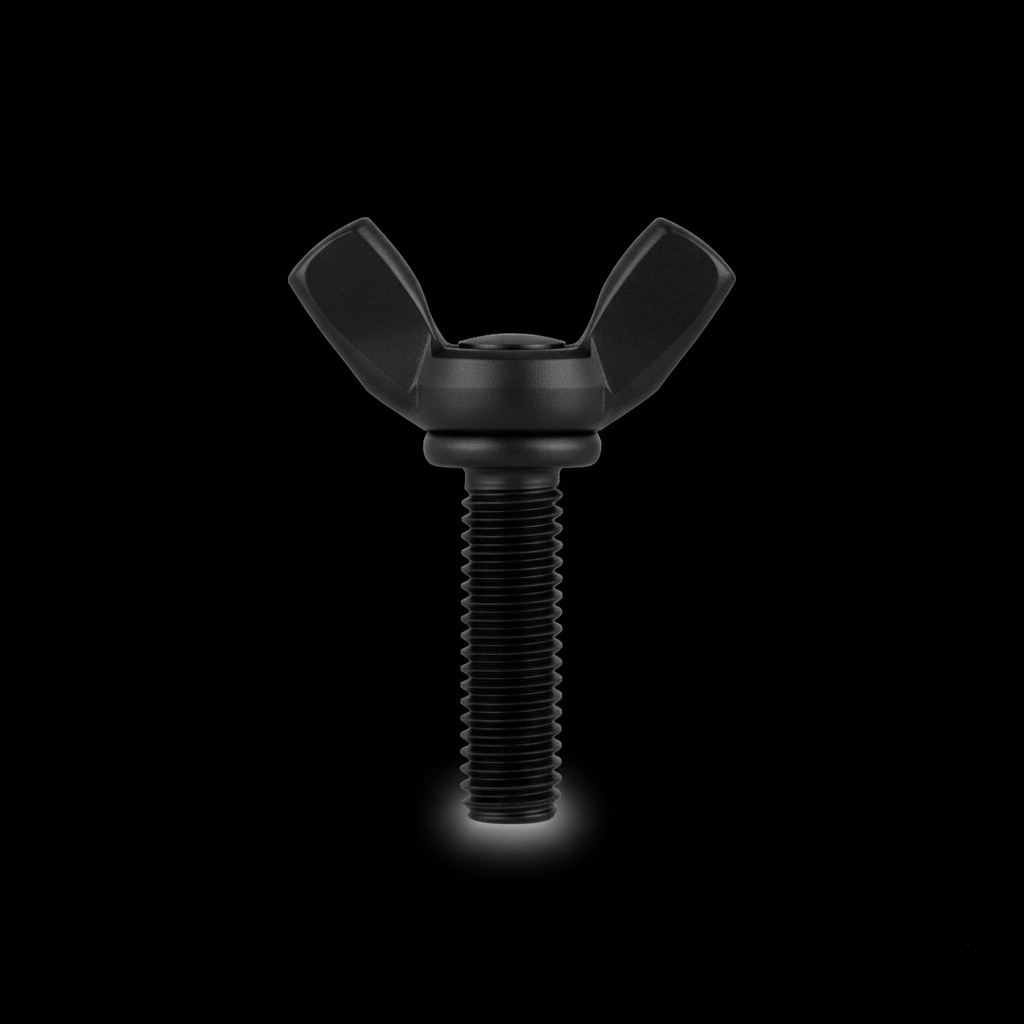

Wing Bolt

Product

Stainless Steel 304 / A2-70

DIN 316
mm8101216202530354045505560
M4——————
M5—————
M6———
M8——
M10———
M12————
In stock— Not manufactured

Selected: Stainless Steel 304 / A2-70 · choose a size from the chart

Available in Stainless Steel 304 / A2-70, Mild Steel and Zinc Plated. Standard sizes (DIN 316): M4 (8-30mm), M5 (10-40mm), M6 (10-50mm), M8 (12-60mm), M10 (16-60mm), M12 (20-60mm). Request a quote for your exact requirement.

Wing Bolts feature two wide “wings” on the head, allowing users to tighten or loosen them easily by hand. Designed for convenience and reusability, they are perfect for adjustable or frequently accessed components. With reliable threading and a grip-friendly shape, Wing Bolts deliver simple, efficient fastening in setups that prioritize ease of use and quick adjustments.

About Wing Bolt

Common uses and specifications for Wing Bolt:

Applications

  • •Used where quick, tool-free tightening and loosening is required
  • •Ideal for fixtures, panels, clamps, DIY assemblies, and adjustable setups
  • •Suitable for light to medium-duty fastening in furniture, equipment, and maintenance work
  • •Provides convenient, hand-operated fastening without the need for wrenches or screwdrivers
  • •Structural steel connections

Specifications

Materials
SS 304, Mild Steel, Zinc Plated
Size range
M4 to M12, lengths 8 mm to 60 mm
Standards
DIN 316

Industries served

  • Construction
  • Automotive
  • Industrial machinery
  • Manufacturing

Related categories

Wing Bolt: frequently asked questions

What materials are wing bolts available in?

Wing Bolts are available in SS 304, Mild Steel and Zinc Plated. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of wing bolt?

Choose the bolt diameter from the load and hole size, then pick a length equal to the total clamped thickness plus the nut and washer height, with one to two threads projecting past the nut. ScrewBazar can match a size from a drawing or sample.

Which standards do wing bolts follow?

Wing Bolts are commonly made to DIN 316. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of wing bolt are available?

Wing Bolts are supplied in M4 to M12, lengths 8 mm to 60 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order wing bolts in bulk?

Yes. ScrewBazar supplies wing bolts in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
