| mm | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | — | — | — | ||||||||
| M4 | — | — | — | ||||||||
| M5 | — | — | |||||||||
| M6 | — | — | — |
Selected: Stainless Steel 202 · choose a size from the chart
Available in Stainless Steel 202, Stainless Steel 304 / A2-70, Stainless Steel 316 / A4-70, Mild Steel and Brass. Standard sizes (Metric thread (ISO 261)): M3 (5-25mm), M4 (6-30mm), M5 (8-40mm), M6 (10-40mm). Request a quote for your exact requirement.

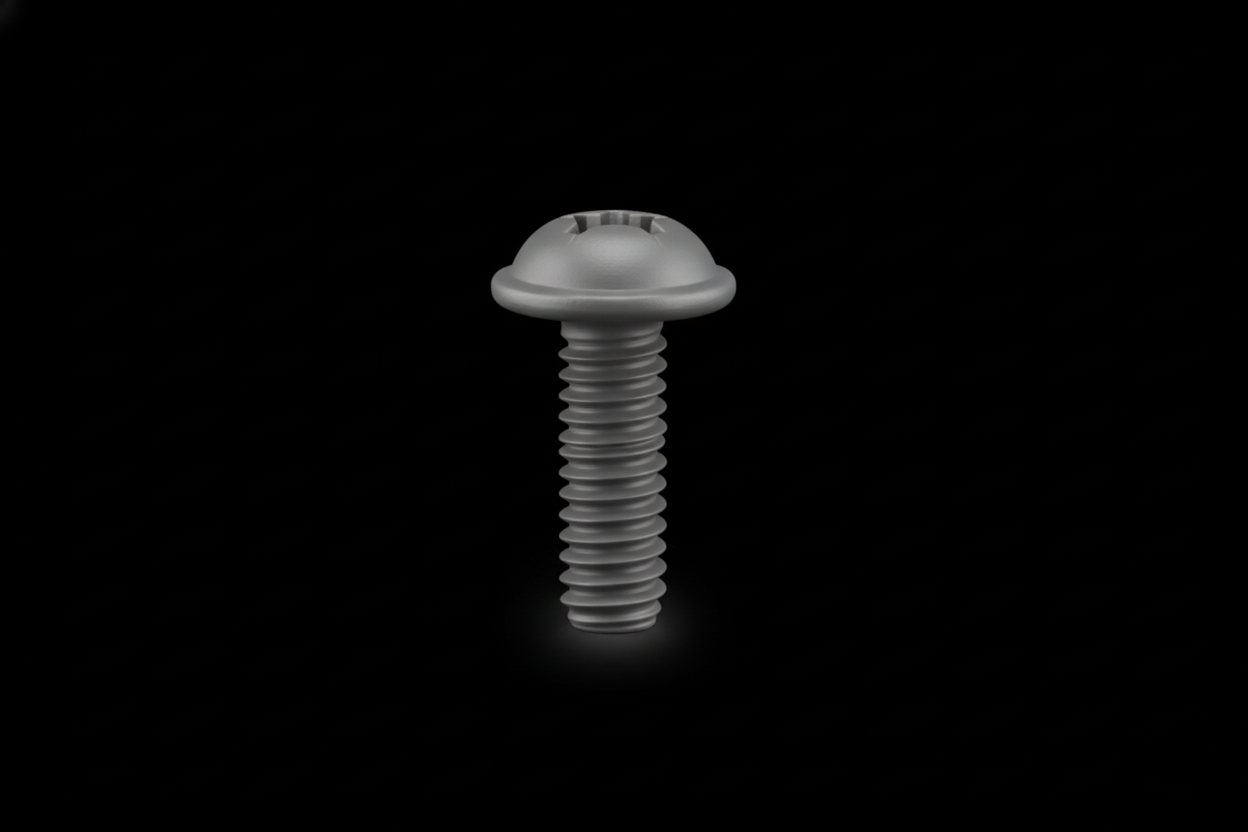

WW Pan Phillips (Wide Washer Pan) Machine Screws feature an extra-wide pan head that functions like an integrated washer, providing superior load distribution over a larger surface area. The Phillips cross-recess drive ensures easy installation. This design is ideal for soft materials, thin panels, or applications requiring enhanced clamping force without surface damage.
Common uses and specifications for WW Pan Phillips Machine Screw:
WW Pan Phillips Machine Screws are available in SS 202, SS 304, SS 316, Mild Steel and Brass. Choose the material based on the load, the corrosion exposure and the material of the mating parts.
Choose the thread size from the hole or nut it must fit, then pick a length that gives full thread engagement of at least one diameter in steel and 1.5 to 2 diameters in aluminium or plastic. ScrewBazar can match a size from a drawing or sample.
WW Pan Phillips Machine Screws are supplied to common metric dimensions. State the required DIN, ISO or IS standard on your enquiry, or send a drawing or sample, and ScrewBazar will match it.
WW Pan Phillips Machine Screws are supplied in M3 to M6, lengths 5 mm to 40 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.
Yes. ScrewBazar supplies WW pan phillips machine screws in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
