Circlip Type E (Snap Ring)

Product

Spring Steel

DIN 6799
SizeØ1.2Ø1.5Ø1.9Ø2.3Ø3.2Ø4Ø5Ø6Ø7Ø8Ø9Ø10Ø12Ø15Ø19Ø24
DIN 6799
In stock— Not manufactured

Selected: Spring Steel · choose a size from the chart

Available in Spring Steel and Stainless Steel. Standard sizes (DIN 6799): Ø1.2, Ø1.5, Ø1.9, Ø2.3, Ø3.2, Ø4, Ø5, Ø6, Ø7, Ø8, Ø9, Ø10, Ø12, Ø15, Ø19, Ø24. Request a quote for your exact requirement.

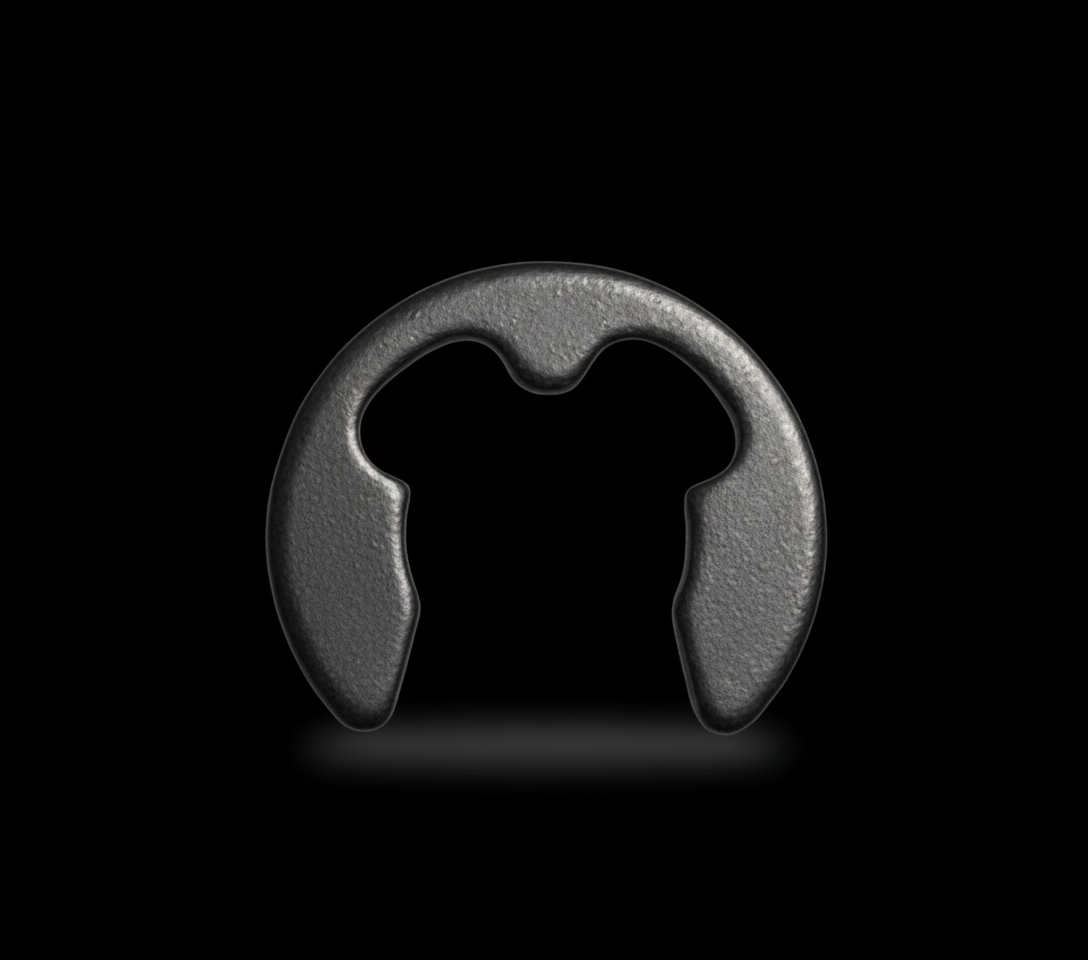

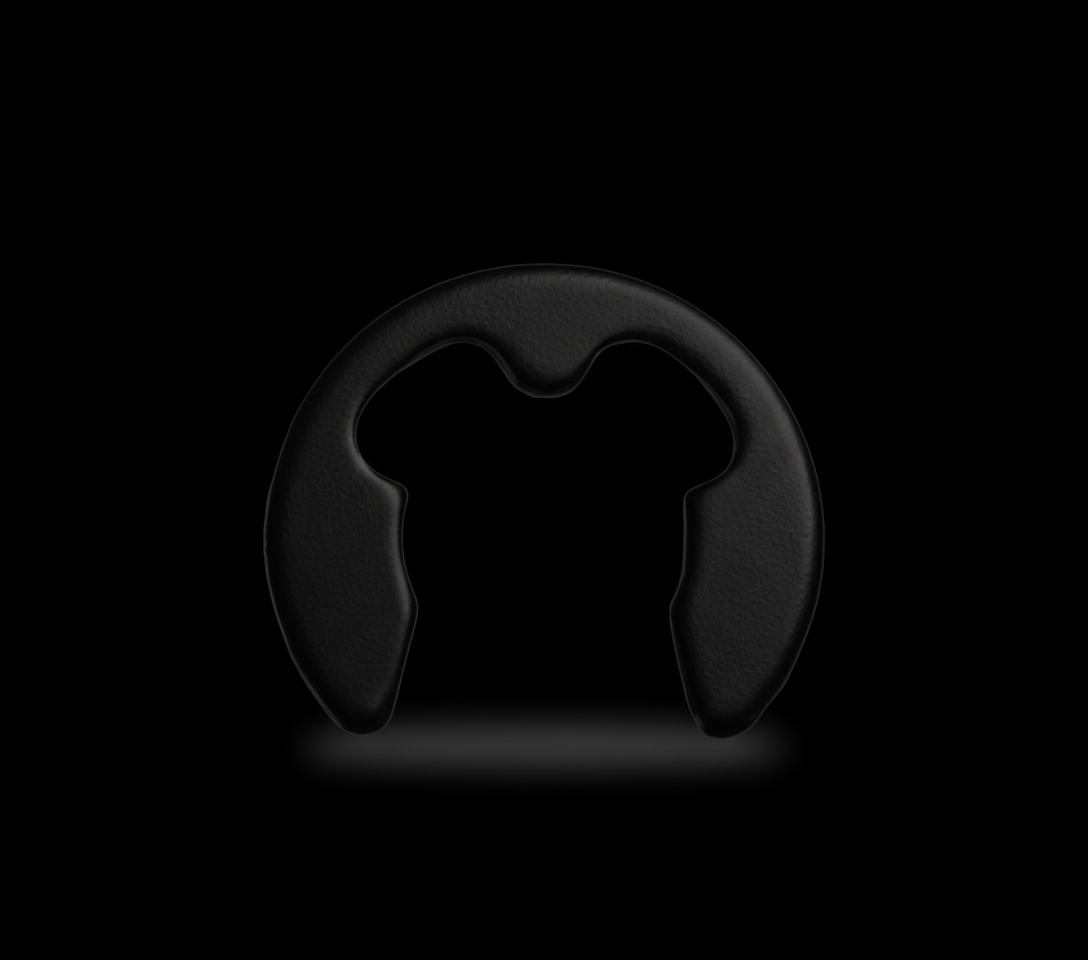

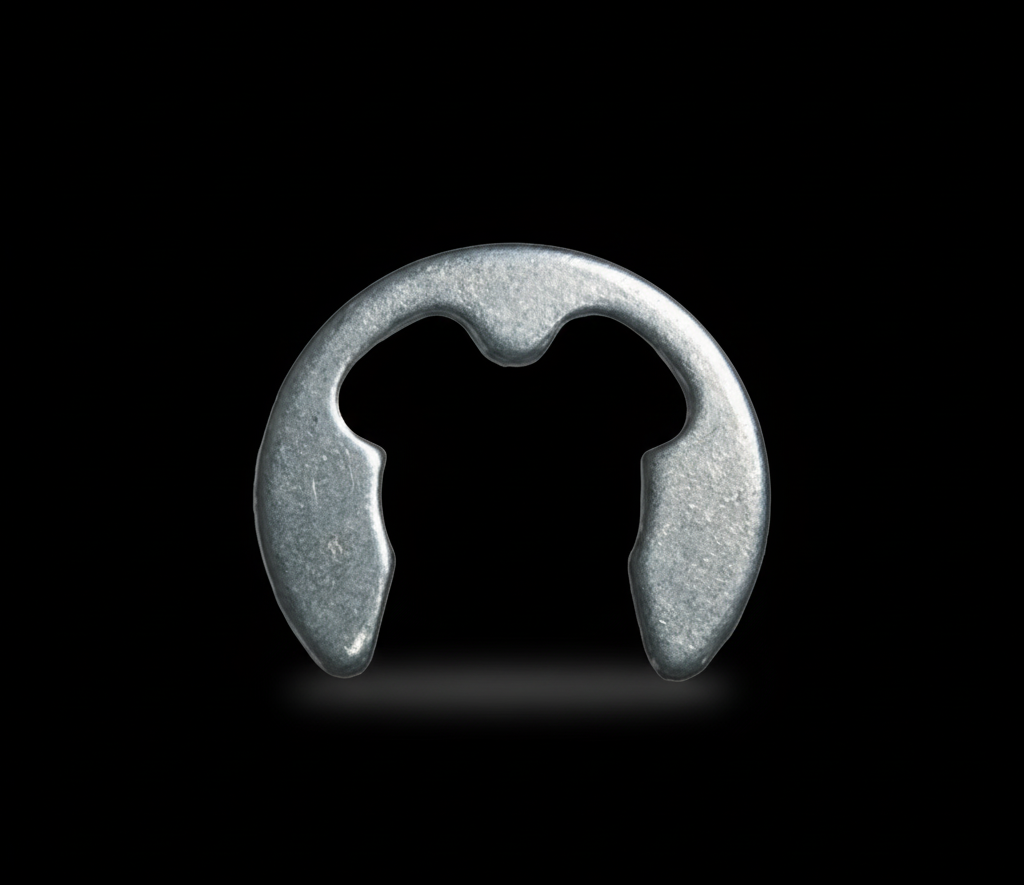

Circlip Type E, also known as an E-clip, is a three-pronged retaining ring designed to snap into a groove on a shaft. Its open shape allows easy installation from the side, making it highly efficient for securing moving parts without complete disassembly. With strong holding capability and quick removal, E-clips are ideal for mechanical assemblies requiring dependable, reusable shaft retention. Also commonly known as Snap Ring or Retaining Ring in the trade.

About Circlip Type E

Circlip Type Es (Snap Ring, Retaining Ring, C-Clip) are retaining fasteners used in industrial and construction applications. They are commonly made to DIN 471 and DIN 472. ScrewBazar supplies circlip type es in Spring Steel and Stainless Steel. Typical uses include bearing retention on shafts, gear and pulley location and axles and pivot pins.

Applications

  • •Bearing retention on shafts
  • •Gear and pulley location
  • •Axles and pivot pins
  • •Gearbox and pump assemblies
  • •Maintenance and repair

Specifications

Materials
Spring Steel, Stainless Steel
Size range
Ø1.2 to Ø24
Standards
DIN 471, DIN 472

Industries served

  • Automotive
  • Power transmission
  • Industrial machinery
  • Pumps and motors

Related categories

Circlip Type E: frequently asked questions

What materials are circlip type es available in?

Circlip Type Es are available in Spring Steel and Stainless Steel. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

Where are circlip type es used?

Circlip Type Es are used in bearing retention on shafts, gear and pulley location, axles and pivot pins, gearbox and pump assemblies and maintenance and repair. They are supplied to the automotive, power transmission, industrial machinery and pumps and motors sectors.

How do I choose the right size of circlip type e?

Retaining rings are sized by the shaft or bore diameter they fit. The groove must be machined to the dimensions given in the relevant DIN standard for that size. ScrewBazar can match a size from a drawing or sample.

What sizes of circlip type e are available?

Circlip Type Es are supplied in Ø1.2 to Ø24. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order circlip type es in bulk?

Yes. ScrewBazar supplies circlip type es in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.

Which standards do circlip type es follow?

Circlip Type Es are commonly made to DIN 471 and DIN 472. State the standard on your enquiry so dimensions and tolerances match your drawing.
