Circlip Type A (Snap Ring)

Product

Spring Steel

DIN 471
SizeØ3Ø4Ø5Ø6Ø7Ø8Ø9Ø10Ø11Ø12Ø13Ø14Ø15Ø16Ø17Ø18Ø19Ø20Ø21Ø22Ø24Ø25Ø26Ø28Ø30Ø32Ø34Ø35Ø36Ø38Ø40Ø42Ø45Ø48Ø50Ø52Ø55Ø56Ø58Ø60Ø62Ø65Ø68Ø70Ø72Ø75Ø78Ø80Ø82Ø85Ø88Ø90Ø95Ø100
DIN 471
In stock— Not manufactured

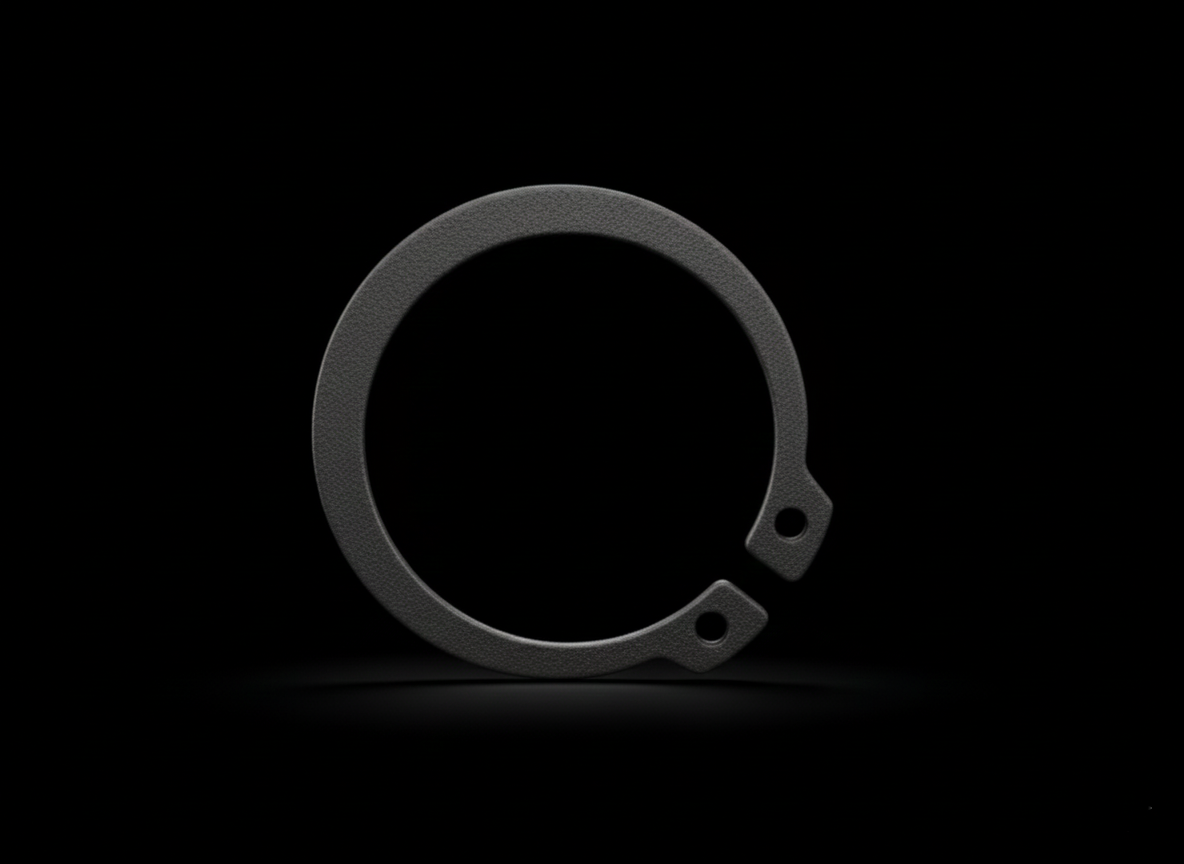

Selected: Spring Steel · choose a size from the chart

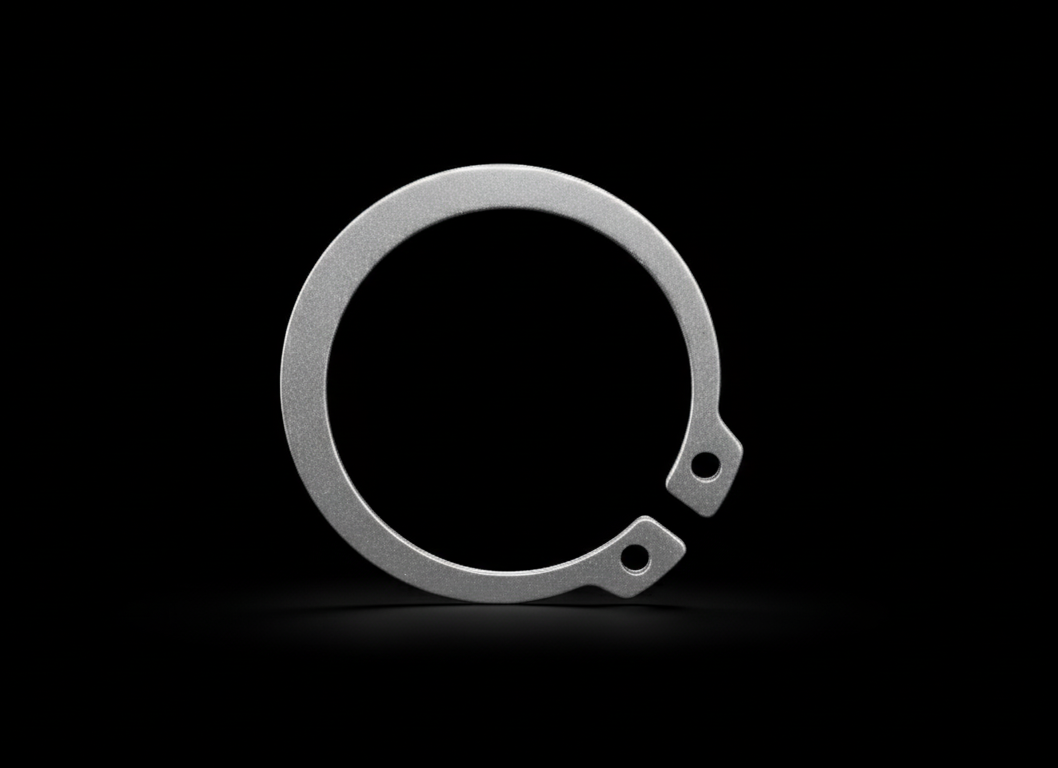

Available in Spring Steel and Stainless Steel. Standard sizes (DIN 471): Ø3, Ø4, Ø5, Ø6, Ø7, Ø8, Ø9, Ø10, Ø11, Ø12, Ø13, Ø14, Ø15, Ø16, Ø17, Ø18, Ø19, Ø20, Ø21, Ø22, Ø24, Ø25, Ø26, Ø28, Ø30, Ø32, Ø34, Ø35, Ø36, Ø38, Ø40, Ø42, Ø45, Ø48, Ø50, Ø52, Ø55, Ø56, Ø58, Ø60, Ø62, Ø65, Ø68, Ø70, Ø72, Ø75, Ø78, Ø80, Ø82, Ø85, Ø88, Ø90, Ø95, Ø100. Request a quote for your exact requirement.

Circlip Type A is an external retaining ring designed to snap into a groove on the outside of a shaft. Once fitted, it forms a rigid shoulder that prevents components from sliding off during operation. Known for its strength and ease of use, Type A circlips are widely used in mechanical and automotive assemblies where secure, low-profile axial retention is essential. Also commonly known as Snap Ring or Retaining Ring in the trade.

About Circlip Type A

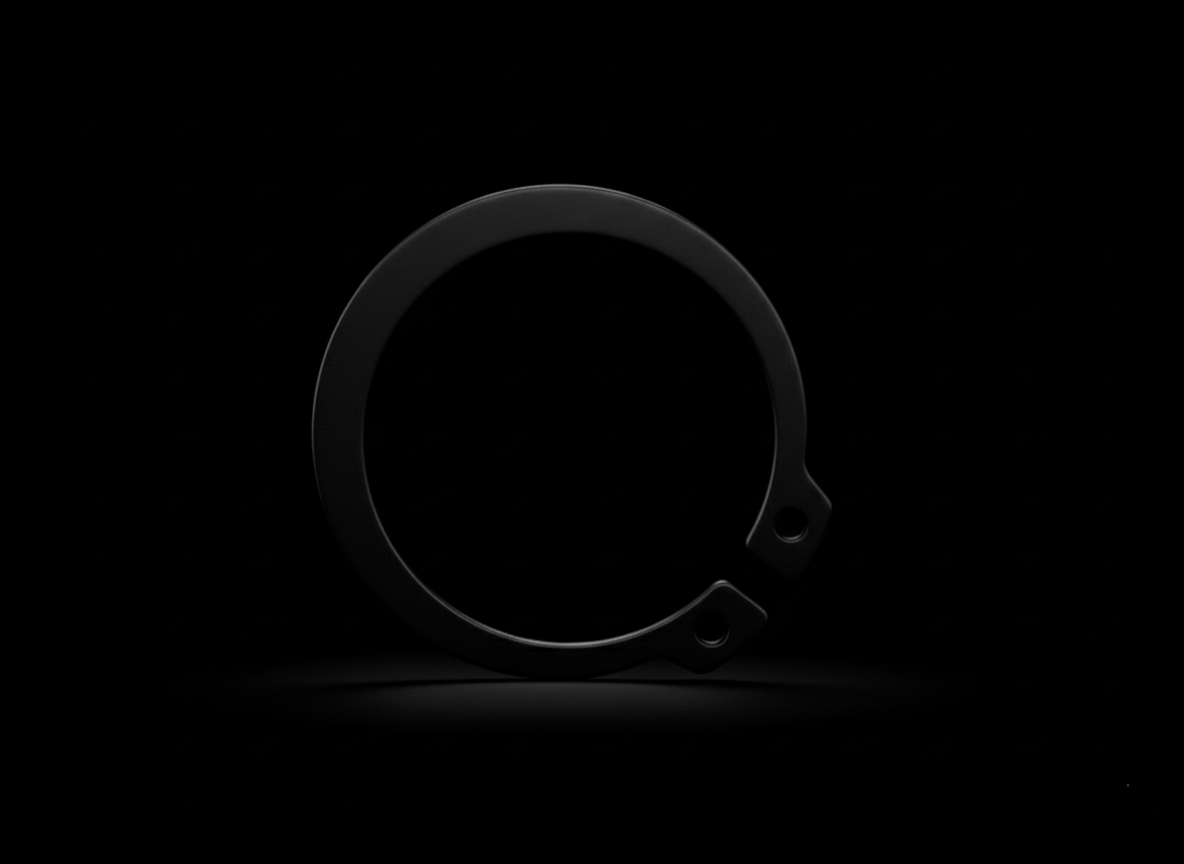

External circlips are open spring-steel retaining rings that snap into a groove on a shaft to stop parts sliding off. Circlip Type A is the external circlip, also called a shaft circlip, external retaining ring or snap ring. The standard is DIN 471. The circlip has two lug holes at the open ends. External circlip pliers spread the ring open so it can pass over the shaft and spring back into the groove. Once fitted, the ring forms a shoulder that takes axial load from bearings, gears, pulleys and bushes. The nominal size is the shaft diameter, so a 20 mm circlip fits a 20 mm shaft. DIN 471 circlips are made from carbon spring steel, hardened to about 44 to 54 HRC depending on size, usually with a phosphated black finish. Stainless steel versions are used in wet and food-grade applications.

Applications

  • •Retaining bearings on shafts
  • •Gear, pulley and sprocket location
  • •Wheel and roller axles
  • •Pivot and clevis pins
  • •Gearbox and pump shafts
  • •Two-wheeler and automotive transmissions

Specifications

Materials
Spring Steel (phosphated), Stainless Steel
Size range
Shaft diameters 3 mm to 100 mm
Standards
DIN 471

Industries served

  • Automotive
  • Power transmission
  • Industrial machinery
  • Pumps and compressors
  • Agricultural machinery

Related categories

Circlip Type A: frequently asked questions

What is the difference between an internal and an external circlip?

An external circlip (DIN 471) fits in a groove on the outside of a shaft and is opened with expanding pliers. An internal circlip (DIN 472) fits in a groove inside a bore or housing and is closed with contracting pliers. Each is sized by the shaft or bore diameter it fits.

How do I choose the right size of external circlip?

Choose the circlip whose nominal size equals the shaft diameter. For example, a 25 mm shaft takes a DIN 471-25 circlip. The groove diameter and width on the shaft must also be machined to the dimensions given in DIN 471 for that size.

Can circlips be reused?

Circlips can sometimes be reused if they are not over-stretched during removal. A circlip that has been opened too far loses its grip in the groove. For rotating or safety-critical parts, fit a new circlip at each rebuild.

Which way round should an external circlip be fitted?

Stamped circlips have one sharp edge and one rounded edge from the punching process. Fit the circlip with the sharp edge facing away from the load. This gives a square shoulder against the part being retained.

What material are DIN 471 circlips made from?

Standard DIN 471 circlips are made from carbon spring steel, such as C67S or C75S, hardened to about 44 to 54 HRC. They are usually phosphated and oiled for corrosion protection. Stainless steel circlips are used in food processing, marine and wet environments.
