Circlip Type B (Snap Ring)

Product

Spring Steel

DIN 472
SizeØ8Ø9Ø10Ø11Ø12Ø13Ø14Ø15Ø16Ø17Ø18Ø19Ø20Ø21Ø22Ø24Ø25Ø26Ø28Ø30Ø32Ø34Ø35Ø36Ø37Ø38Ø40Ø42Ø45Ø47Ø48Ø50Ø52Ø55Ø56Ø58Ø60Ø62Ø63Ø65Ø68Ø70Ø72Ø75Ø78Ø80Ø82Ø85Ø88Ø90Ø92Ø95Ø100
DIN 472
In stock— Not manufactured

Selected: Spring Steel · choose a size from the chart

Available in Spring Steel and Stainless Steel. Standard sizes (DIN 472): Ø8, Ø9, Ø10, Ø11, Ø12, Ø13, Ø14, Ø15, Ø16, Ø17, Ø18, Ø19, Ø20, Ø21, Ø22, Ø24, Ø25, Ø26, Ø28, Ø30, Ø32, Ø34, Ø35, Ø36, Ø37, Ø38, Ø40, Ø42, Ø45, Ø47, Ø48, Ø50, Ø52, Ø55, Ø56, Ø58, Ø60, Ø62, Ø63, Ø65, Ø68, Ø70, Ø72, Ø75, Ø78, Ø80, Ø82, Ø85, Ø88, Ø90, Ø92, Ø95, Ø100. Request a quote for your exact requirement.

Internal circlips (DIN 472, B-series) are retaining rings that fit into a machined groove inside a bore to axially locate a shaft, bearing, or housing component. Made from spring steel or stainless steel grades suited to retaining ring applications, they're installed and removed with internal circlip pliers. Available in bore sizes typically from 8mm to 100mm. Common applications include automotive wheel bearings, gearbox assemblies, hydraulic cylinders, and precision machine tool spindles. Also commonly known as Snap Ring or Retaining Ring in the trade.

About Circlip Type B

Internal circlips are open spring-steel retaining rings that snap into a groove inside a bore or housing to hold parts in place. Circlip Type B is the internal circlip, also called a bore circlip, internal retaining ring or snap ring. The standard is DIN 472. The circlip has two lug holes near the open ends. Internal circlip pliers squeeze the ring closed so it can be pushed into the bore, where it springs out into the groove. Once fitted, it forms a shoulder that holds bearings, seals and bushes inside a housing. The nominal size is the bore diameter, so a 40 mm circlip fits a 40 mm bore. DIN 472 circlips are made from carbon spring steel, hardened to about 44 to 54 HRC depending on size, with a phosphated black finish. Stainless steel versions are used in wet environments.

Applications

  • •Retaining bearings in housings
  • •Holding oil seals and bushes in bores
  • •Hydraulic and pneumatic cylinders
  • •Gearbox and pump housings
  • •Wheel hubs and pulleys
  • •Power tools and appliances

Specifications

Materials

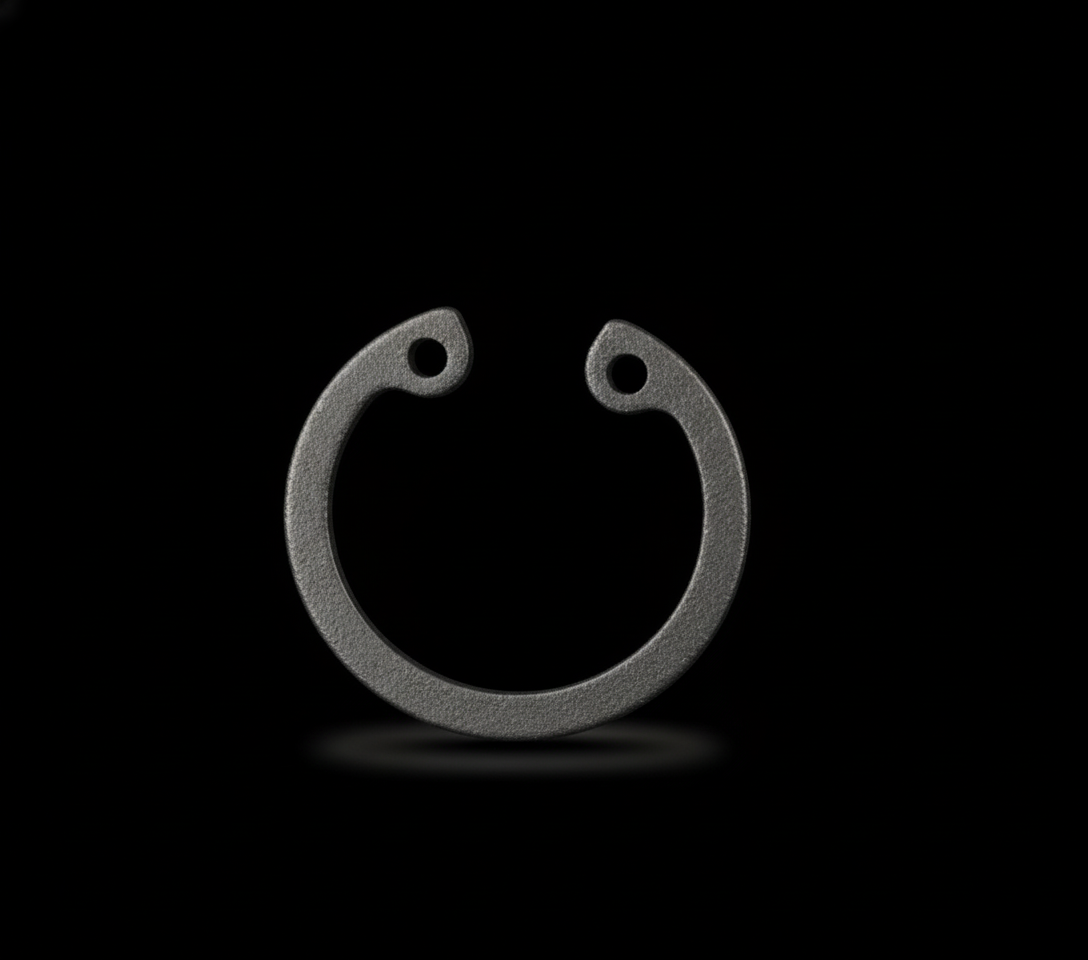

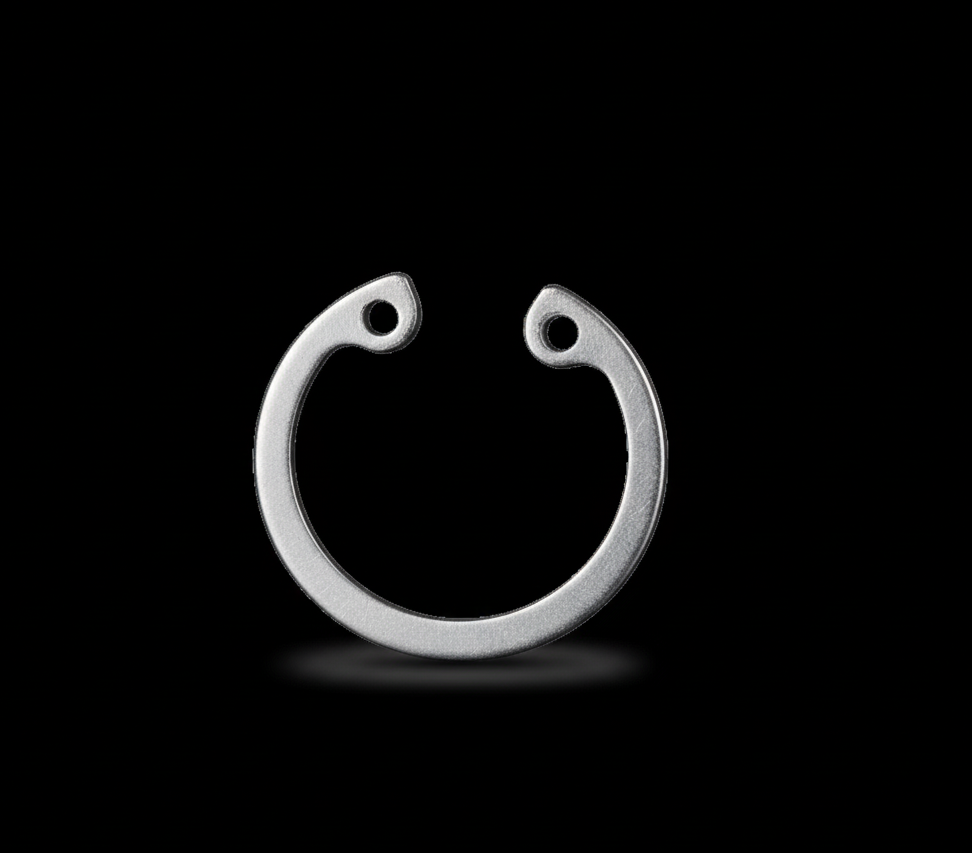

Spring Steel (phosphated), Stainless Steel
Size range
Bore diameters 8 mm to 100 mm
Standards
DIN 472

Industries served

  • Automotive
  • Hydraulics and pneumatics
  • Industrial machinery
  • Pumps and motors
  • Power tools

Related categories

Circlip Type B: frequently asked questions

How do I choose the right size of internal circlip?

Choose the circlip whose nominal size equals the bore diameter. For example, a 47 mm bearing bore takes a DIN 472-47 circlip. The groove inside the bore must be machined to the groove diameter and width given in DIN 472.

What tool do I need to fit an internal circlip?

Use internal circlip pliers, which close when the handles are squeezed. The pliers tips go into the lug holes and compress the ring so it fits into the bore. External circlip pliers work the opposite way and will not fit an internal circlip.

What is the difference between DIN 471 and DIN 472?

DIN 471 covers external circlips for shafts. DIN 472 covers internal circlips for bores. The sizes are not interchangeable because one is sized by shaft diameter and the other by bore diameter.

Can an internal circlip hold a bearing under heavy axial load?

Yes, within the load limits given in DIN 472. The rated load depends on the circlip thickness, the groove depth and the strength of the housing material. Groove edges must be square and sharp so the circlip cannot roll out under load.

Which side of an internal circlip should face the load?

Fit the circlip with the rounded edge towards the groove and the sharp, punched edge facing away from the load. This places the square face of the ring against the retained part and gives the best holding.
