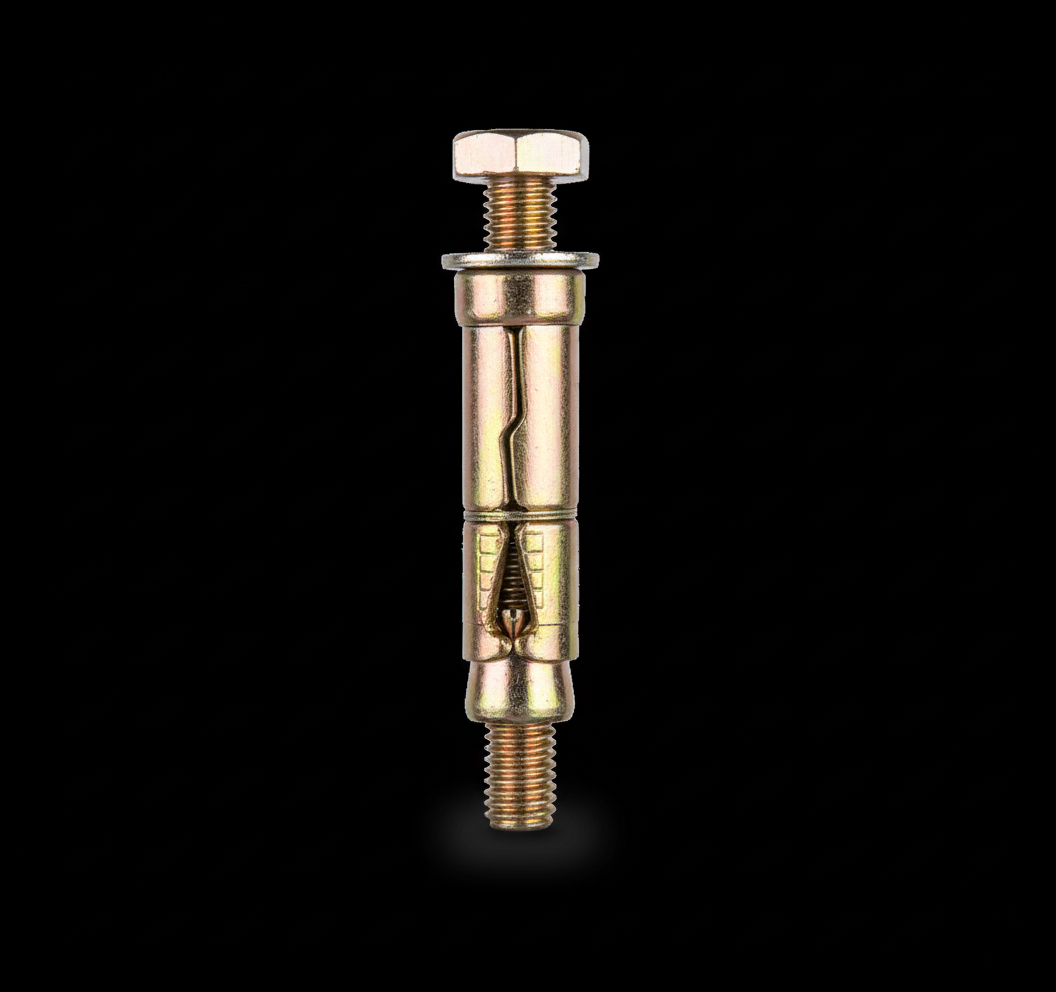

Shield Anchor (Concrete Shield Anchor)

Product

Zinc Plated Steel

Metric thread (ISO 261)
mm4050607080100120150200
M6โ€”โ€”โ€”
M8โ€”โ€”โ€”
M10โ€”โ€”โ€”
M12โ€”โ€”โ€”โ€”
M16โ€”โ€”โ€”โ€”โ€”
In stockโ€” Not manufactured

Selected: Zinc Plated Steel ยท choose a size from the chart

Available in Zinc Plated Steel, Lead (Traditional) and Zamak Alloy. Standard sizes (Metric thread (ISO 261)): M6 (40-100mm), M8 (50-120mm), M10 (60-150mm), M12 (70-150mm), M16 (100-200mm). Request a quote for your exact requirement.

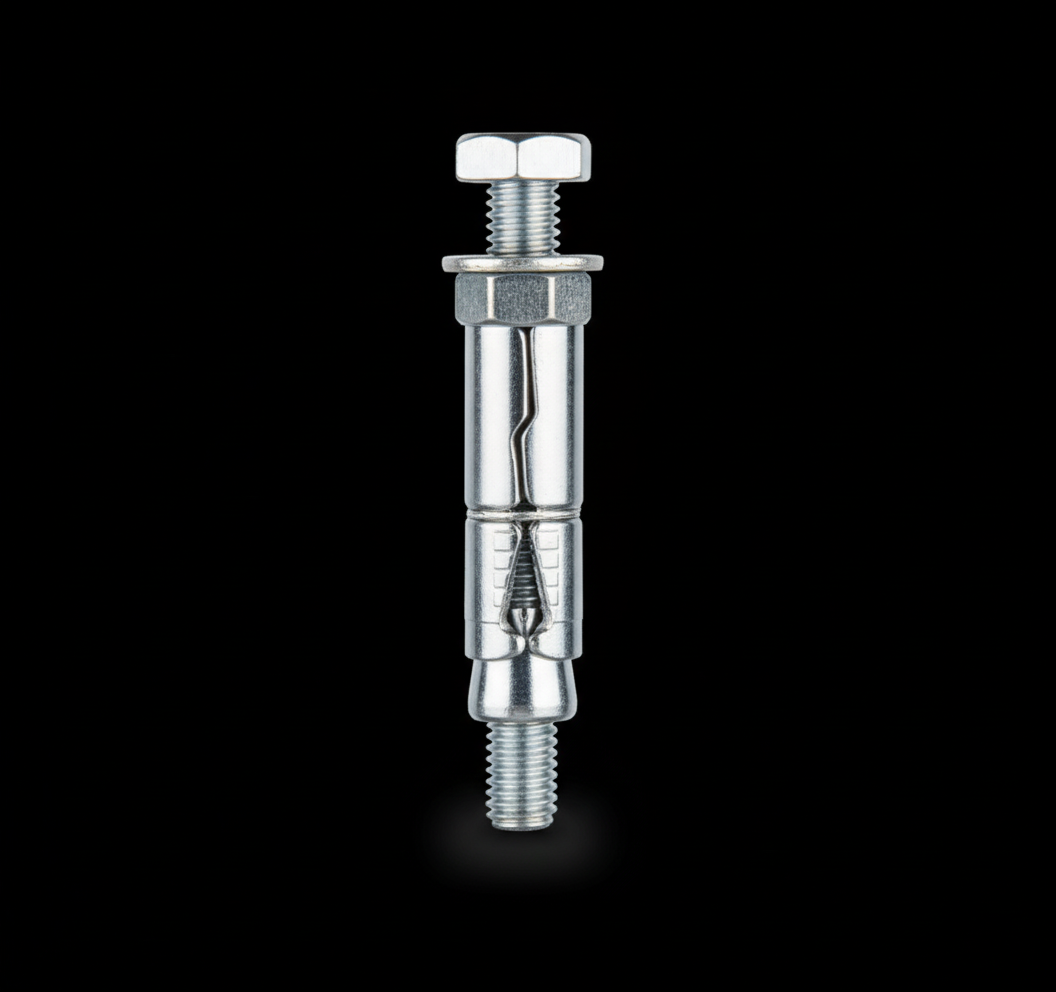

Shield Anchors are heavy-duty expansion anchors consisting of a thick metal sleeve that spreads outward as the bolt is tightened, gripping the masonry with strong mechanical interlock. Their multi-segment design ensures broad surface contact for maximum holding strength, even in weaker masonry. Perfect for industrial installations, construction fixtures, and load-bearing applications, Shield Anchors deliver dependable stability, excellent durability, and secure fastening across a wide range of masonry materials. Also commonly known as Concrete Shield Anchor in the trade.

About Shield Anchor

Shield Anchors (Drop-In Anchor, Concrete Shield Anchor) are anchoring fasteners used in industrial and construction applications. ScrewBazar supplies shield anchors in Zinc Plated Steel, Lead (Traditional) and Zamak Alloy. Typical uses include fixing machinery to concrete floors, structural steel base plates and railings, brackets and supports.

Applications

  • โ€ขFixing machinery to concrete floors
  • โ€ขStructural steel base plates
  • โ€ขRailings, brackets and supports
  • โ€ขCable trays and pipe supports
  • โ€ขBuilding services installation

Specifications

Materials
Zinc Plated Steel, Lead (Traditional), Zamak Alloy
Size range
M6 to M16, lengths 40 mm to 200 mm

Industries served

  • Construction
  • Civil engineering
  • Building services
  • Industrial plants

Related categories

Shield Anchor: frequently asked questions

What materials are shield anchors available in?

Shield Anchors are available in Zinc Plated Steel, Lead (Traditional) and Zamak Alloy. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

Where are shield anchors used?

Shield Anchors are used in fixing machinery to concrete floors, structural steel base plates, railings, brackets and supports, cable trays and pipe supports and building services installation. They are supplied to the construction, civil engineering, building services and industrial plants sectors.

How do I choose the right size of shield anchor?

Choose the anchor diameter from the fixture hole and load, and the length from the fixture thickness plus the minimum embedment depth in the base material. Drill the hole to the size given for that anchor. ScrewBazar can match a size from a drawing or sample.

What sizes of shield anchor are available?

Shield Anchors are supplied in M6 to M16, lengths 40 mm to 200 mm. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order shield anchors in bulk?

Yes. ScrewBazar supplies shield anchors in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
