Wedge Lock Washer

Product

Spring Steel

DIN 25201
SizeM3M4M5M6M8M10M12M14M16M20M24M30M36
DIN 25201
In stock— Not manufactured

Selected: Spring Steel · choose a size from the chart

Available in Spring Steel and Stainless Steel 316 / A4. Standard sizes (DIN 25201): M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36. Request a quote for your exact requirement.

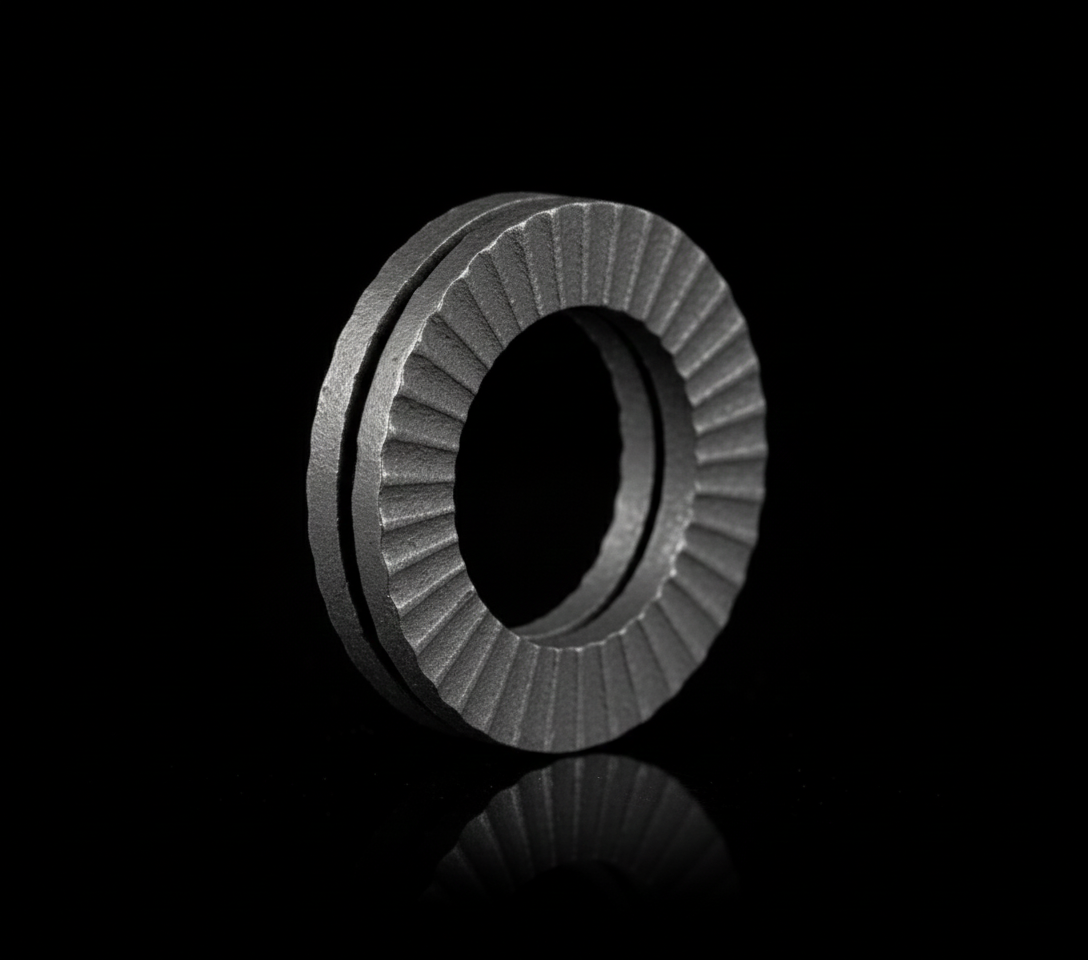

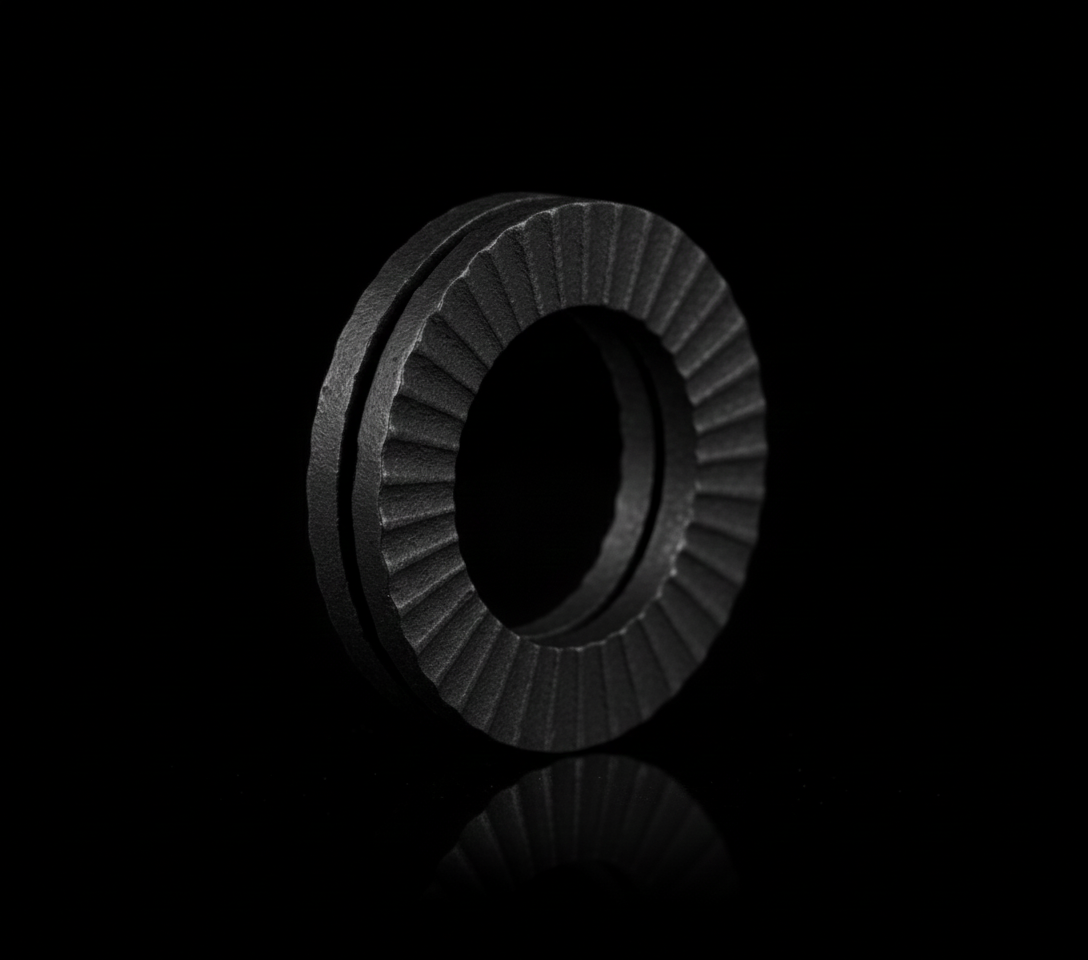

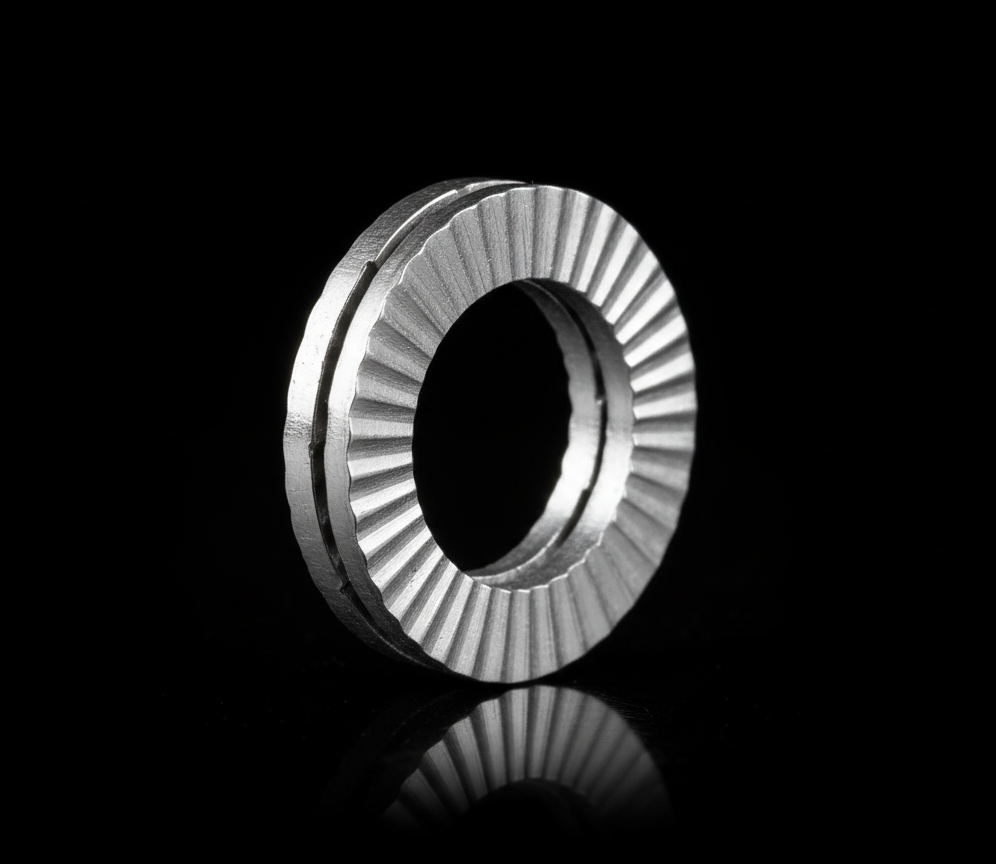

Wedge Lock Washers consist of two paired washers with wedge-shaped cams on one side and radial serrations on the other. When tightened, the cam action creates tension that resists loosening, even under extreme vibration. This self-locking system ensures that the bolt stays secure, delivering unmatched safety and reliability. Widely used in critical mechanical and industrial applications, Wedge Lock Washers offer superior performance where high-strength, vibration-proof fastening is essential.

About Wedge Lock Washer

Common uses and specifications for Wedge Lock Washer:

Applications

  • •Used to prevent loosening in high-vibration or dynamic load environments
  • •Ideal for heavy machinery, automotive assemblies, wind turbines, structural joints, and industrial equipment
  • •Commonly used in bolted connections that face shock, movement, or continuous vibration
  • •Suitable for applications requiring maximum security where standard lock washers may fail
  • •Provides consistent, reliable locking through its unique tension-based wedge action

Specifications

Materials
Spring Steel, SS 316
Size range
M3 to M36
Standards
DIN 25201

Industries served

  • Industrial machinery
  • Construction
  • Electrical
  • Automotive

Related categories

Wedge Lock Washer: frequently asked questions

What materials are wedge lock washers available in?

Wedge Lock Washers are available in Spring Steel and SS 316. Choose the material based on the load, the corrosion exposure and the material of the mating parts.

How do I choose the right size of wedge lock washer?

Washers are sized by the bolt they fit, so an M10 washer suits an M10 bolt. Choose a larger outer diameter for soft materials, thin sheet or oversized holes. ScrewBazar can match a size from a drawing or sample.

Which standards do wedge lock washers follow?

Wedge Lock Washers are commonly made to DIN 25201. State the standard on your enquiry so dimensions and tolerances match your drawing.

What sizes of wedge lock washer are available?

Wedge Lock Washers are supplied in M3 to M36. The size availability table on this page shows every standard size by material; sizes outside it are not manufactured to the standard but can be made to a drawing.

Can I order wedge lock washers in bulk?

Yes. ScrewBazar supplies wedge lock washers in packs and in bulk quantities for production and maintenance. Use Request a Quote with the size, material and quantity you need, or send a drawing or sample.
