Allen CSK Screws — Everything You Need to Know

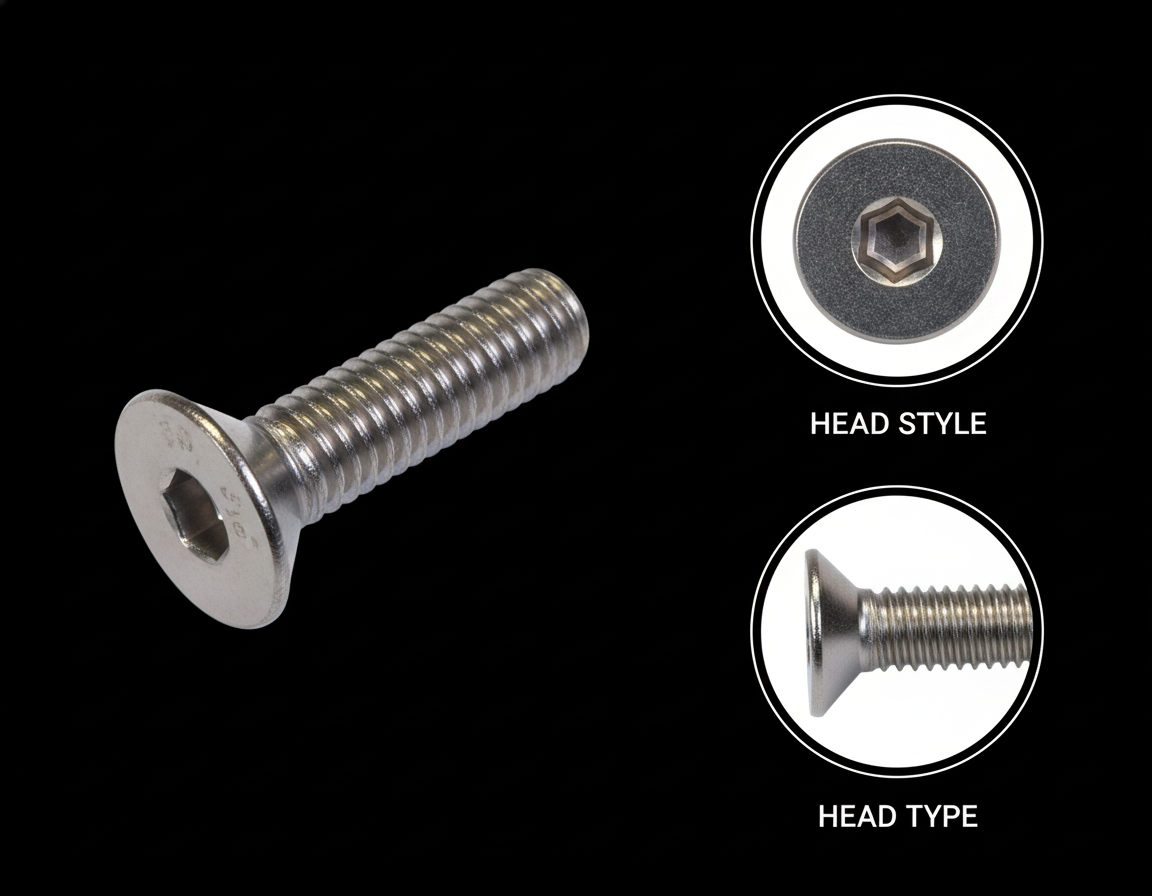

Allen CSK screws — also called socket countersunk head screws or flat socket head cap screws — have a conical (countersunk) head with a hexagonal socket drive. When driven into a countersunk hole, the tapered head sits flush or slightly below the material surface, leaving no protruding head. The internal hex drive allows high installation torque without the risk of tool slip or cam-out — unlike Phillips CSK screws which are prone to stripping at high torque. Allen CSK screws are available at ScrewBazar in stainless steel SS304, mild steel Grade 10.9, and brass in sizes M3 to M16.

Standard Allen CSK screws have an 82° or 90° head angle — most metric allen CSK screws use 90°. The countersunk hole in the workpiece must match this angle precisely. A 90° CSK screw in an 82° hole will rock and not seat flat; a screw in an oversized countersink will bottom out before clamping properly. Always check the head angle specification when ordering. At ScrewBazar, 90° head angle is the standard for metric Allen CSK screws. Countersink drill bits or combination drill-countersinks produce the correct geometry.

The main advantage of allen CSK screws over Phillips CSK screws is torque capacity. Phillips drives cam out (the tool slips) at relatively low torque — a deliberate feature that prevents over-tightening in soft materials, but a serious limitation in metal-to-metal fastening. Allen drives transfer torque directly without cam-out, allowing fasteners to be tightened to their full rated torque. This makes allen CSK screws the preferred choice in precision machinery, CNC fixtures, automotive assemblies, and anywhere full clamping force is required with a flush head profile.

Allen CSK screws appear wherever a flush surface is required and strength matters: machine tool fixtures and jig plates (where protruding heads would interfere with workpieces), automotive body panel assemblies, precision instrument housings, medical device assemblies, architectural metalwork and stone cladding systems, and electronics enclosures with tight clearances. They are also extensively used in furniture hardware where a clean aesthetic is required. The flush-mounted allen CSK screw has become the standard for high-quality furniture hinge mounting.

ScrewBazar supplies allen CSK screws in: stainless steel SS304 (general outdoor, food-grade, and corrosion-resistant applications), Grade 10.9 alloy steel zinc-plated (high-strength machinery applications), Grade 12.9 alloy steel (maximum strength, motorsport, and precision engineering), and brass (non-sparking, non-magnetic, and decorative applications). Choose your material based on the environment, required strength, and any appearance requirements. For outdoor architectural use, SS304 allen CSK screws provide the best combination of appearance and corrosion resistance.

Browse Allen CSK Screws →

Getting the best performance from allen CSK screws requires attention to installation: (1) The countersink hole must be accurately machined to the correct angle and diameter — the screw head should sit flush, not proud or sunken below the surface. (2) Use the correct Allen key size — a worn or undersized key damages the socket. (3) Apply a thin film of oil or anti-seize compound on stainless steel allen CSK screws to prevent galling. (4) Tighten to the specified torque — do not over-torque, especially in softer base materials like aluminium. (5) For critical applications, use a calibrated torque wrench rather than relying on feel.

Allen CSK screws are available in metric sizes from M3 to M20, with standard metric thread pitches (coarse thread is most common). Common lengths range from 6mm to 100mm. Thread length (engaged length) should be at least 1.5× the nominal diameter for a reliable joint in steel, and at least 3× the nominal diameter for aluminium. If you need a size not listed in the standard range, ScrewBazar can source non-standard allen CSK specifications for OEM and bulk orders.
